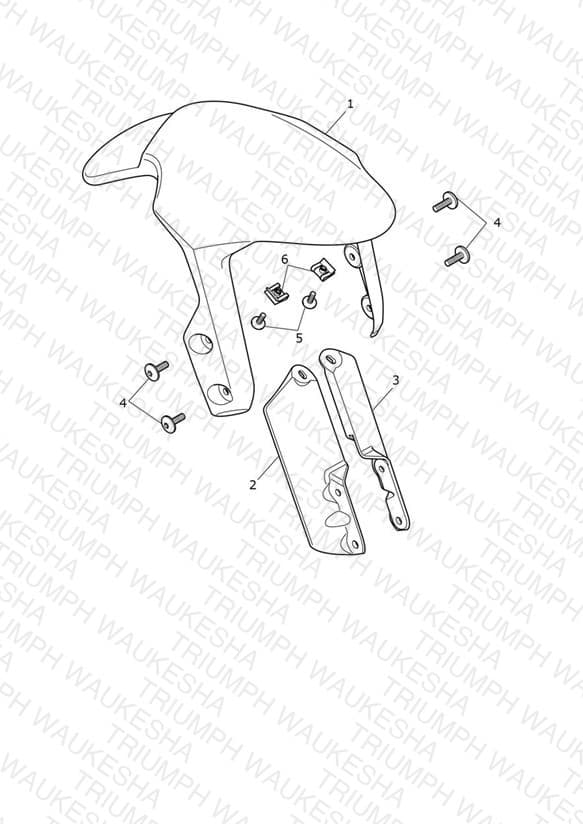

Front Mudguard
Parts (7)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2311917 Front Mudguard, Carbon, Decal | Front Mudguard, Carbon, Decal Includes decal, item 7 | 1 | $615.09 | Available to order | 1 |
| 2 | T2320003 Fork Protector, Fork, RH | Fork Protector, Fork, RH | 1 | $47.56 | Available to order | 1 |
| 3 | T2320002 Fork Protector, Fork, LH | Fork Protector, Fork, LH | 1 | $47.56 | Available to order | 1 |
| 4 | T3330312 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 4 | $3.82 | Backorder — Mid October 2026 | 4 |
| 5 | T3330945 Screw, But/Hd, M5 x 16, Blk | Screw, But/Hd, M5 x 16, Blk | 2 | $9.00 | Available to order | 2 |
| 6 | T3351002 Nut, Captive, U-Type, M5, Slv | Nut, Captive, U-Type, M5, Slv | 2 | $2.53 | Available to order | 2 |
| 7 | T2311949 Decal, Front Mudguard, Triumph Yellow | Decal, Front Mudguard, Triumph Yellow Not Illustrated | 1 | $55.27 | Available to order | 1 |
