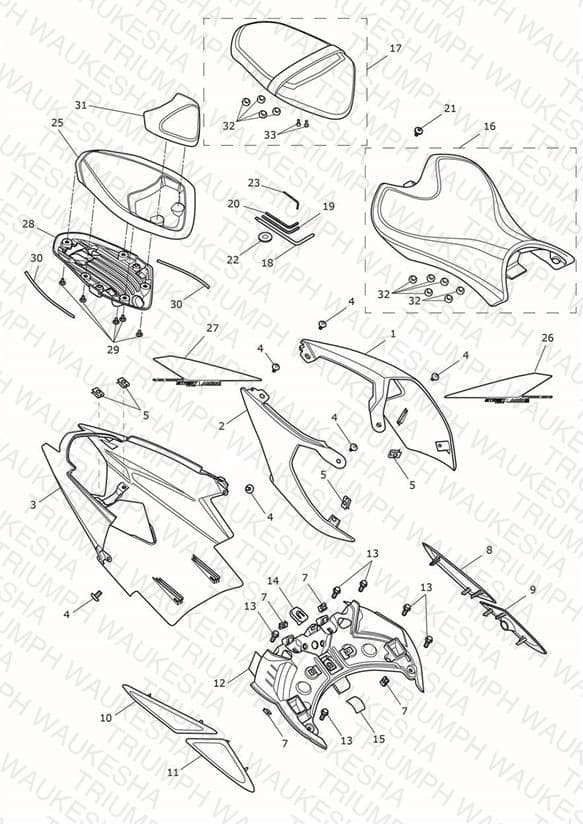

Rear Bodywork & Seat
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2316208-LT Rear Bodywork, LH, Mineral Grey | Rear Bodywork, LH, Mineral Grey includes Decal, item 26 | 1 | $281.58 | Out of Stock | Notify Me |
| 2 | T2316209-LT Rear Bodywork, RH, Mineral Grey | Rear Bodywork, RH, Mineral Grey Includes Decal, Item 27 | 1 | $281.58 | Out of Stock | Notify Me |
| 3 | T2313007 Undertray Moulding | Undertray Moulding All Except IN | 1 | $51.25 | Available to order | 1 |
| 3 | T2313017 Undertray Moulding | Undertray Moulding IN Only | 1 | $104.09 | Available to order | 1 |
| 4 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 8 | $5.24 | Available to order | 8 |
| 5 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 4 | $4.84 | Available to order | 4 |
| 7 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 4 | $3.61 | Available to order | 4 |
| 8 | T2303943 Rear Frame Infill, LH, Rear | Rear Frame Infill, LH, Rear | 1 | $27.18 | Available to order | 1 |
| 9 | T2303944 Rear Frame Infill, LH, Front | Rear Frame Infill, LH, Front | 1 | $27.18 | Available to order | 1 |
| 10 | T2303946 Rear Frame Infill, RH, Rear | Rear Frame Infill, RH, Rear | 1 | $27.18 | Out of Stock | Notify Me |
| 11 | T2303947 Rear Frame Infill, RH, Front | Rear Frame Infill, RH, Front | 1 | $27.18 | Available to order | 1 |
| 12 | T2313011 Seat Bridge, Moulding | Seat Bridge, Moulding | 1 | $45.61 | Available to order | 1 |
| 13 | T3205062 Bolt, HHF, Lghtd, M6 x 12, Slv | Bolt, HHF, Lghtd, M6 x 12, Slv | 4 | $4.46 | Backorder — Early November 2026 | 4 |
| 14 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 1 | $5.24 | Available to order | 1 |
| 15 | T3660175 Rubber Pad, 30 x 45 x 3 | Rubber Pad, 30 x 45 x 3 | 1 | $6.15 | Available to order | 1 |
| 16 | T2310596 Rider Seat, Moto2 | Rider Seat, Moto2 | 1 | $214.69 | Available to order | 1 |
| 17 | T2310597 Pillion Seat, Embroidered, Black | Pillion Seat, Embroidered, Black | 1 | $191.47 | Backorder — Early November 2026 | 1 |
| 18 | T2301364 Wrench, 124 x 54, Slot & Cross | Wrench, 124 x 54, Slot & Cross | 1 | $5.24 | Available to order | 1 |
| 19 | T2300634 Allen Key, 5mm | Allen Key, 5mm | 1 | $5.24 | Out of Stock | Notify Me |
| 20 | T2300912 Allen Key, 4.0mm | Allen Key, 4.0mm | 1 | $4.95 | Available to order | 1 |
| 21 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv | 1 | $4.70 | Available to order | 1 |
| 22 | T2309004 Tool, Fork Adjuster | Tool, Fork Adjuster | 1 | $16.93 | Available to order | 1 |
| 23 | T2309831 Allen Key, 3mm | Allen Key, 3mm | 1 | $5.24 | Available to order | 1 |
| 25 | T2314002-LT Seat Cowl, Mineral Grey | Seat Cowl, Mineral Grey | 1 | $302.97 | Available to order | 1 |
| 26 | T2315587 Decal, Rear Bodywork, LH, White/Yellow | Decal, Rear Bodywork, LH, White/Yellow included with item 1 | 1 | $25.00 | Available to order | 1 |
| 27 | T2315588 Decal, Rear Bodywork, RH, White/Yellow | Decal, Rear Bodywork, RH, White/Yellow included with item 2 | 1 | $25.00 | Out of Stock | Notify Me |
| 28 | T2314006 Base, Seat Cowl | Base, Seat Cowl | 1 | $54.10 | Available to order | 1 |
| 29 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 5 | $0.81 | Available to order | 5 |
| 30 | T2314109 Trim, Seat Cowl | Trim, Seat Cowl | 2 | $28.99 | Available to order | 2 |
| 31 | T2314004 Rubber Pad, Seat Cowl | Rubber Pad, Seat Cowl | 1 | $19.25 | Available to order | 1 |
| 32 | T2307358 Rubber Foot Seat, 6mm | Rubber Foot Seat, 6mm | 10 | $4.15 | Out of Stock | Notify Me |
| 33 | T2307376 Screw, M6 x 1.0 x 16 | Screw, M6 x 1.0 x 16 | 2 | $4.01 | Available to order | 2 |
