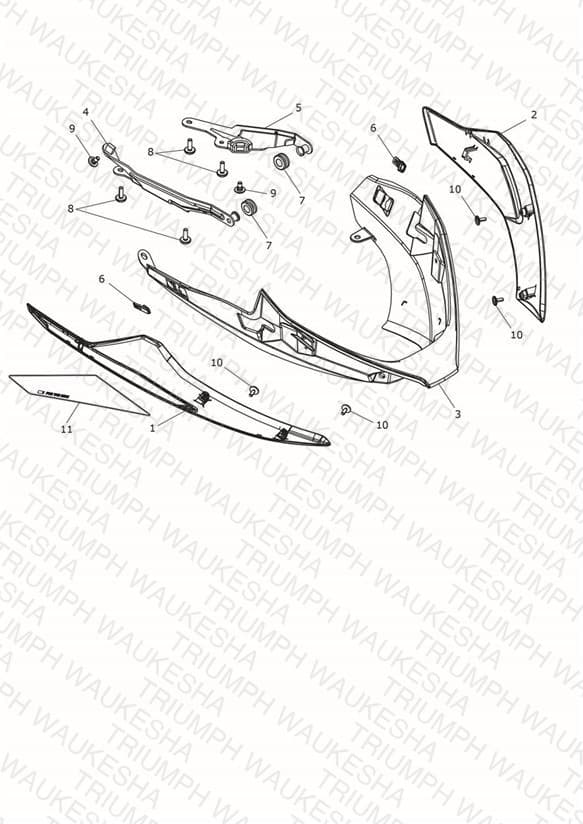

Bellypan
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2317026 Panel, Bellypan, RH, Carbon | Panel, Bellypan, RH, Carbon | 1 | $401.24 | Available to order | 1 |
| 2 | T2317077 Panel, Bellypan, LH, Carbon | Panel, Bellypan, LH, Carbon | 1 | $478.40 | Available to order | 1 |
| 3 | T2317056 Panel, Bellypan, Centre | Panel, Bellypan, Centre | 1 | $46.19 | Available to order | 1 |
| 4 | T2317061 Bracket, Bellypan, RHF | Bracket, Bellypan, RHF | 4 | $18.82 | Out of Stock | Notify Me |
| 5 | T2317062 Bracket, Bellypan, LHF | Bracket, Bellypan, LHF | 4 | $18.82 | Available to order | 4 |
| 6 | T2313085 Clip, Bodywork | Clip, Bodywork | 2 | $2.60 | Available to order | 2 |
| 7 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 2 | $2.04 | Available to order | 2 |
| 8 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 4 | $7.18 | Available to order | 4 |
| 9 | T3331075 Bolt, But/Hd, M5 x 14, Slv | Bolt, But/Hd, M5 x 14, Slv | 2 | $5.35 | Available to order | 2 |
| 10 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 4 | $0.81 | Available to order | 4 |
| 11 | T2314876 Decal, Bellypan, RH | Decal, Bellypan, RH | 1 | $25.00 | Available to order | 1 |
