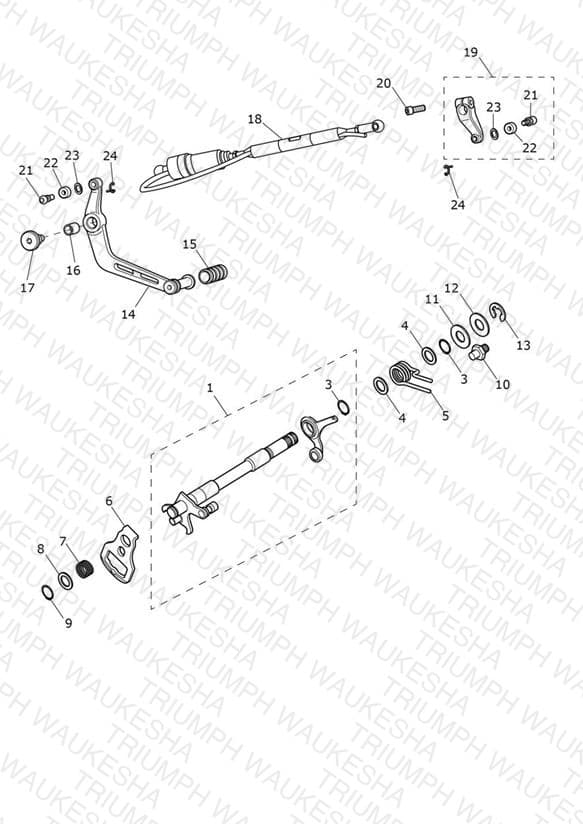

Gearchange Mechanism
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1190919 Gearchange Mechanism Assembly | Gearchange Mechanism Assembly | 1 | $156.90 | Out of Stock | Notify Me |
| 3 | T3502535 Circlip, Din 471, Dia. 14.0 | Circlip, Din 471, Dia. 14.0 | 1 | $2.04 | Available to order | 1 |
| 4 | T3550236 Washer, 14 x 20 x 1.6 | Washer, 14 x 20 x 1.6 | 2 | $3.14 | Available to order | 2 |
| 5 | T1193333 Spring, Gearchange, Return | Spring, Gearchange, Return | 1 | $5.05 | Available to order | 1 |
| 6 | T1194900 Pivot Plate | Pivot Plate | 1 | $46.84 | Available to order | 1 |
| 7 | T1190123 Spring, Pivot Plate | Spring, Pivot Plate | 1 | $13.48 | Available to order | 1 |
| 8 | T3555003 Washer, 12 x 18 x 1.2 | Washer, 12 x 18 x 1.2 | 1 | $1.50 | Available to order | 1 |
| 9 | T3500068 Circlip, Din 471, Dia 12 | Circlip, Din 471, Dia 12 | 1 | $2.04 | Out of Stock | Notify Me |
| 10 | T3000205 Dowel, Solid, 8 x 35 | Dowel, Solid, 8 x 35 | 1 | $0.97 | Available to order | 1 |
| 11 | T3550444 Washer, 15.5 x 25 | Washer, 15.5 x 25 | 1 | $1.90 | Available to order | 1 |
| 12 | T3553333 Thrust Washer, 12.25 x 28 x 1.2 | Thrust Washer, 12.25 x 28 x 1.2 | 1 | $5.45 | Available to order | 1 |
| 13 | T3500044 E Circlip | E Circlip | 1 | $1.04 | Available to order | 1 |
| 14 | T2083349 Gearchange Pedal | Gearchange Pedal | 1 | $107.47 | Available to order | 1 |
| 15 | T2082789 Rubber, Gearchange Pedal | Rubber, Gearchange Pedal | 1 | $8.07 | Backorder — Early November 2026 | 1 |
| 16 | T3750020 Bush, PAP, 1215 P14 | Bush, PAP, 1215 P14 | 1 | $7.77 | Available to order | 1 |
| 17 | T3331520 Bolt, Shld, M8 x 1.25, Slv, Enc | Bolt, Shld, M8 x 1.25, Slv, Enc | 1 | $11.33 | Available to order | 1 |
| 18 | T2089567 Quickshifter Assy, TSA | Quickshifter Assy, TSA | 1 | $592.81 | Available to order | 1 |
| 19 | T2089739 Clamp Assy, Black | Clamp Assy, Black | 1 | $56.88 | Available to order | 1 |
| 20 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 1 | $4.84 | Available to order | 1 |
| 21 | T2086071 Knuckle, Ball Joint, M6, Enc | Knuckle, Ball Joint, M6, Enc | 2 | $10.35 | Available to order | 2 |
| 22 | T2086072 Seal, Ball Joint | Seal, Ball Joint | 2 | $8.15 | Available to order | 2 |
| 23 | T2082937 Washer, 6.4 x 11 x 1.6 | Washer, 6.4 x 11 x 1.6 | 2 | $1.37 | Available to order | 2 |
| 24 | T2086073 Clip, Ball Joint | Clip, Ball Joint | 2 | $2.53 | Available to order | 2 |
