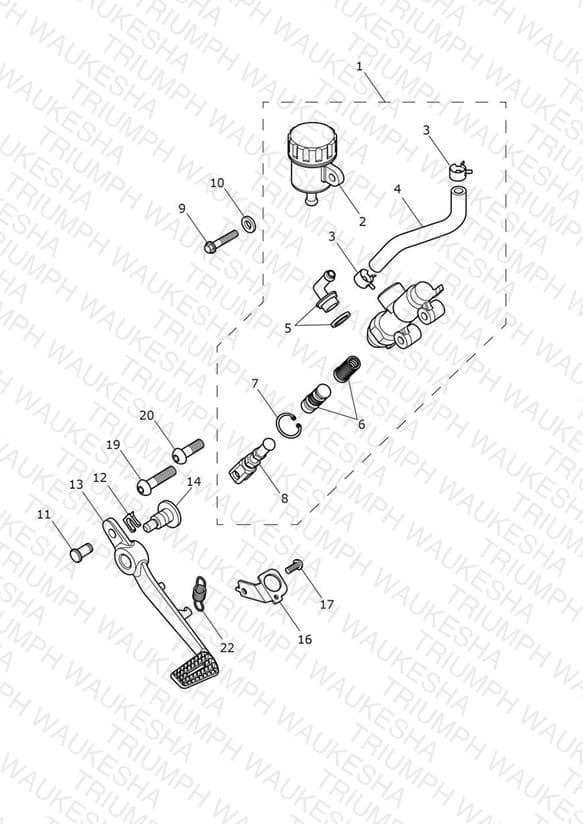

Rear Brake Master Cylinder, Reservoir & Pedal
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2021816 Rear M/Cyl & Reservoir Assembly | Rear M/Cyl & Reservoir Assembly | 1 | $111.30 | Backorder — Early November 2026 | 1 |
| 2 | T2024078 Rear Reservoir, Tank Assy | Rear Reservoir, Tank Assy | 1 | $48.49 | Available to order | 1 |
| 3 | T2023188 Reservoir Hose Clip | Reservoir Hose Clip | 2 | $3.73 | Available to order | 2 |
| 4 | T2021549 Reservoir Hose | Reservoir Hose | 1 | $37.72 | Out of Stock | Notify Me |
| 5 | T2023189 Connection Set | Connection Set | 1 | $27.76 | Backorder — Early November 2026 | 1 |
| 6 | T2022110 Piston Set, Rear Master Cylinder | Piston Set, Rear Master Cylinder | 1 | $67.15 | Available to order | 1 |
| 7 | T2020472 Circlip, M'cyl, Rear | Circlip, M'cyl, Rear | 1 | $2.91 | Available to order | 1 |
| 8 | T2026204 Push Rod Assy, Rear M/Cyl | Push Rod Assy, Rear M/Cyl | 1 | $41.36 | Out of Stock | Notify Me |
| 9 | T3205081 Bolt, HHF, Lghtd, M6 x 28, Enc | Bolt, HHF, Lghtd, M6 x 28, Enc | 1 | $1.61 | Available to order | 1 |
| 10 | T3552002 Washer, M6 x 14 x 1 | Washer, M6 x 14 x 1 | 1 | $1.81 | Available to order | 1 |
| 11 | T3000301 Pin, Clevis, 8 x 13.7 | Pin, Clevis, 8 x 13.7 | 1 | $4.58 | Available to order | 1 |
| 12 | T3000302 Clip, 8mm, Clevis Pin | Clip, 8mm, Clevis Pin | 1 | $6.46 | Available to order | 1 |
| 13 | T2026189 Brake Pedal Assy | Brake Pedal Assy | 1 | $128.15 | Available to order | 1 |
| 14 | T3331520 Bolt, Shld, M8 x 1.25, Slv, Enc | Bolt, Shld, M8 x 1.25, Slv, Enc | 1 | $11.33 | Available to order | 1 |
| 16 | T2028056 Bracket, Brake Switch | Bracket, Brake Switch | 1 | $7.28 | Available to order | 1 |
| 17 | T3330627 Screw, Pan/HD, TPT, Tx, M5 x 12 | Screw, Pan/HD, TPT, Tx, M5 x 12 | 1 | $1.04 | Available to order | 1 |
| 19 | T3335016 Screw, But/Hd, M8 x 35 | Screw, But/Hd, M8 x 35 | 1 | $7.48 | Available to order | 1 |
| 20 | T3335012 Screw, But/Hd, Skt, M8 x 25 | Screw, But/Hd, Skt, M8 x 25 | 1 | $8.87 | Available to order | 1 |
| 22 | T2020923 Spring, Brake Lever Switch | Spring, Brake Lever Switch | 1 | $2.53 | Available to order | 1 |
