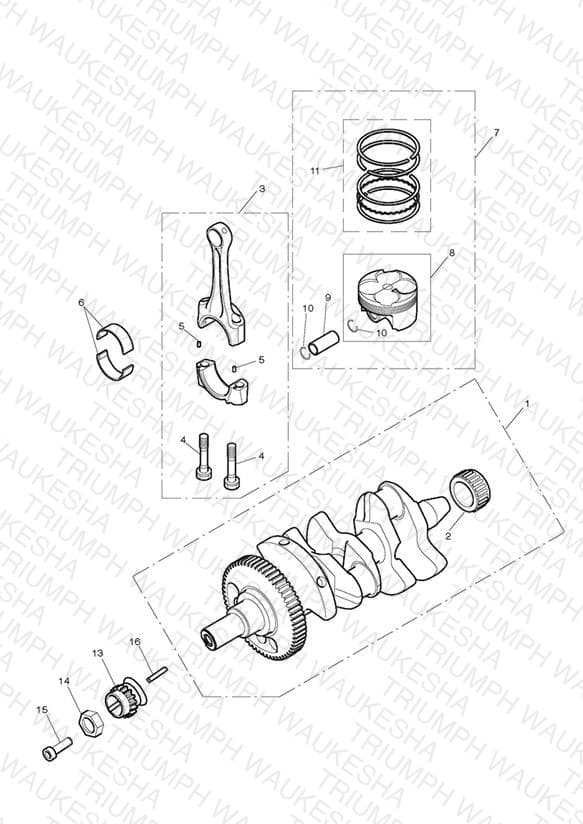

Crankshaft, Connecting Rods, Pistons & Liners
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1100151 Crankshaft Assembly | Crankshaft Assembly | 1 | $1865.01 | Backorder — Mid October 2026 | 1 |
| 2 | T3800120 Bearing, 28 x 41 x 21 Wide | Bearing, 28 x 41 x 21 Wide | 1 | $80.23 | Available to order | 1 |
| 3 | T1110221 Conrod Assembly | Conrod Assembly | 3 | $118.53 | Backorder — Mid October 2026 | 3 |
| 4 | T1110451 Bolt, M8 x 37 x 0.75 | Bolt, M8 x 37 x 0.75 | 6 | $21.58 | Available to order | 6 |
| 5 | T1110452 Dowel, 3 x 5 | Dowel, 3 x 5 | 6 | $3.04 | Available to order | 6 |
| 6 | T1110401 Bearing Shell | Bearing Shell White | — | $12.48 | Available to order | 1 |
| 6 | T1110402 Bearing Shell | Bearing Shell Red | — | $12.48 | Backorder — Late October 2026 | 1 |
| 7 | T1121068 Piston Assembly | Piston Assembly | 3 | $388.56 | Available to order | 3 |
| 8 | T1121067 Piston & Circlip Assembly | Piston & Circlip Assembly | 3 | $256.66 | Out of Stock | Notify Me |
| 9 | T1121992 Gudgeon Pin | Gudgeon Pin | 3 | $21.55 | Available to order | 3 |
| 10 | T1126007 Circlip, Piston | Circlip, Piston | 6 | $2.40 | Available to order | 6 |
| 11 | T1125502 Piston Ring Set | Piston Ring Set | 3 | $105.90 | Available to order | 3 |
| 13 | T1140501 Sprocket, Camdrive, 17T | Sprocket, Camdrive, 17T | 1 | $102.62 | Available to order | 1 |
| 14 | T1100407 Spacer, Hex | Spacer, Hex | 1 | $14.28 | Available to order | 1 |
| 15 | T3050161 Screw, Cap/HD. M8 x 20, Raw | Screw, Cap/HD. M8 x 20, Raw | 1 | $1.04 | Out of Stock | Notify Me |
| 16 | T1100808 Key, Crankshaft | Key, Crankshaft | 1 | $14.11 | Out of Stock | Notify Me |
