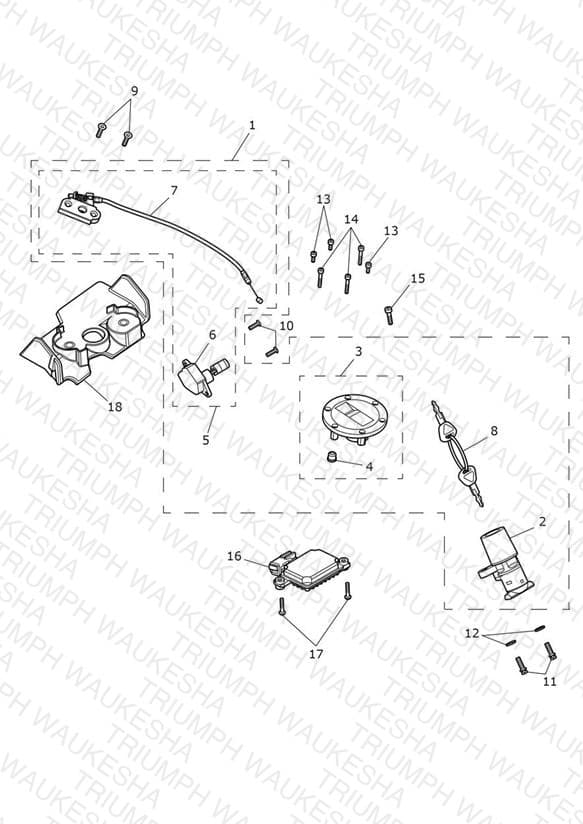

Ignition Switch & Lockset
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2505623 Lock Kit, Modern | Lock Kit, Modern Includes 2 keys | 1 | $625.56 | Available to order | 1 |
| 2 | T2506377 Ignition Lock Combined | Ignition Lock Combined | 1 | $291.29 | Available to order | 1 |
| 3 | T2401242 Filler Cap Assy, Fuel Tank | Filler Cap Assy, Fuel Tank Includes 2 keys | 1 | $205.06 | Available to order | 1 |
| 4 | T2500622 Seal, Filler Cap, Breather | Seal, Filler Cap, Breather | 1 | $6.54 | Available to order | 1 |
| 5 | T2501492 Lock Assy, Seat | Lock Assy, Seat | 1 | $124.48 | Backorder — Mid October 2026 | 1 |
| 6 | T2500618 Seat Lock Assembly | Seat Lock Assembly | 1 | $142.81 | Available to order | 1 |
| 7 | T2500506 Seat Latch Housing | Seat Latch Housing | 1 | $33.02 | Available to order | 1 |
| 8 | T2504577 Key, Cut, Immobiliser | Key, Cut, Immobiliser Supplied as a pair | 1 | $77.56 | Out of Stock | Notify Me |
| 8 | T2504578 Key, Blank, Immobiliser | Key, Blank, Immobiliser Supplied as single | 1 | $70.91 | Available to order | 1 |
| 9 | T3330184 Screw, C'sunk Tx, M6 x 25, Slv | Screw, C'sunk Tx, M6 x 25, Slv | 2 | $1.36 | Available to order | 2 |
| 10 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.50 | Available to order | 2 |
| 11 | T3330327 Bolt, Shear, M6 x 22, Enc | Bolt, Shear, M6 x 22, Enc | 2 | $5.58 | Available to order | 2 |
| 12 | T3550436 Washer, M6, Elongated | Washer, M6, Elongated | 2 | $4.74 | Backorder — Mid October 2026 | 2 |
| 13 | T3050341 Screw, Cap/Hd, M5 x 10, Slv | Screw, Cap/Hd, M5 x 10, Slv | 3 | $4.04 | Backorder — Late November 2026 | 3 |
| 14 | T3050343 Screw, Cap/Hd, M5 x 30, Slv | Screw, Cap/Hd, M5 x 30, Slv | 3 | $4.74 | Available to order | 3 |
| 15 | T3050342 Screw, Cap/Hd, M5 x 16, Slv | Screw, Cap/Hd, M5 x 16, Slv | 1 | $3.04 | Available to order | 1 |
| 16 | T2504061 Immobiliser ECU, with RF 434 | Immobiliser ECU, with RF 434 All Mkts Expt JP | 1 | $1495.89 | Available to order | 1 |
| 16 | T2504071 Immobiliser ECU, with RF 315 | Immobiliser ECU, with RF 315 JP Only | 1 | $1495.89 | Available to order | 1 |
| 17 | T3332464 Screw, S/Tap, Tx, 5 x 25 | Screw, S/Tap, Tx, 5 x 25 | 2 | $2.31 | Available to order | 2 |
| 18 | T2501568 Seat Latch Protector | Seat Latch Protector | 1 | $33.02 | Available to order | 1 |
