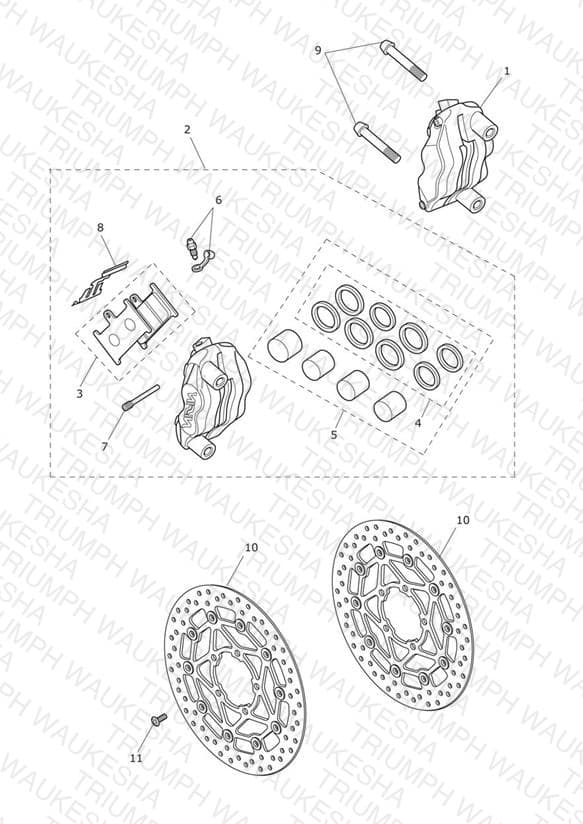

Front Brake Caliper & Discs
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2020831 Caliper Assy, Front, LH | Caliper Assy, Front, LH > 630977 | 1 | $704.17 | Out of Stock | Notify Me |
| 1 | T2021058 Caliper Assy, Front, LH | Caliper Assy, Front, LH 630978 > 699523 | 1 | $704.17 | Out of Stock | Notify Me |
| 2 | T2020832 Caliper Assy, Front, RH | Caliper Assy, Front, RH > 630977 | 1 | $704.17 | Available to order | 1 |
| 2 | T2021059 Caliper Assy, Front, RH | Caliper Assy, Front, RH 630978 > 699523 | 1 | $704.17 | Out of Stock | Notify Me |
| 3 | T2020475 Brake Pad Set, x 2 Pads | Brake Pad Set, x 2 Pads | 2 | $77.54 | Available to order | 2 |
| 4 | T2020574 Seal Set, Half Nymfron | Seal Set, Half Nymfron | 2 | $114.08 | Available to order | 2 |
| 5 | T2020890 Piston & Seal Set, Half Nymfron | Piston & Seal Set, Half Nymfron | 2 | $254.75 | Available to order | 2 |
| 6 | T2020014 Bleed Screw | Bleed Screw | 2 | $15.27 | Available to order | 2 |
| 7 | T2020326 Pad, Retainer | Pad, Retainer | 2 | $38.31 | Available to order | 2 |
| 8 | T2020325 Pad Spring | Pad Spring | 2 | $21.75 | Available to order | 2 |
| 9 | T3050174 Screw, M10 x 1.25x 65 | Screw, M10 x 1.25x 65 | 4 | $5.42 | Available to order | 4 |
| 10 | T2021440 Disc, Front, Black | Disc, Front, Black | 2 | $367.00 | Available to order | 2 |
| 11 | T2024801 Bolt, Disc, M8 x 30, Slv, Enc | Bolt, Disc, M8 x 30, Slv, Enc | 10 | $1.90 | Available to order | 10 |
