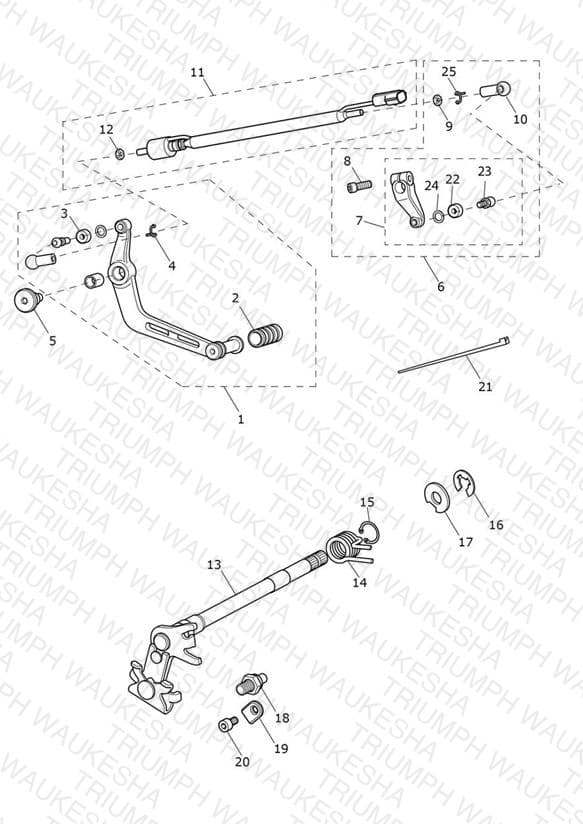

Gear Change Mechanism - Street Triple Rx Only
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2089751 Lever Assy, Gearchange Linkage | Lever Assy, Gearchange Linkage | 1 | $121.17 | Available to order | 1 |
| 2 | T2080529 Rubber, Gearchange Pedal | Rubber, Gearchange Pedal | 1 | $8.01 | Available to order | 1 |
| 3 | T2086072 Seal, Ball Joint | Seal, Ball Joint | 1 | $7.66 | Available to order | 1 |
| 4 | T2086073 Clip, Ball Joint | Clip, Ball Joint | 1 | $2.37 | Available to order | 1 |
| 5 | T3331614 Bolt, Shld, M8, Slv Enc | Bolt, Shld, M8, Slv Enc | 1 | $10.06 | Available to order | 1 |
| 6 | T2086082 Clamp Linkage Spares Assembly | Clamp Linkage Spares Assembly | 1 | $117.87 | Available to order | 1 |
| 7 | T2089739 Clamp Assy, Black | Clamp Assy, Black | 1 | $57.95 | Available to order | 1 |
| 8 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 1 | $4.55 | Available to order | 1 |
| 9 | T3350308 Nut, M6, Black, LH | Nut, M6, Black, LH | 1 | $1.51 | Out of Stock | Notify Me |
| 10 | T2086888 Ball Joint, Left Hand Thread | Ball Joint, Left Hand Thread | 1 | $23.08 | Available to order | 1 |
| 11 | T2082216 Quickshifter Assy, Standard Shift | Quickshifter Assy, Standard Shift | 1 | $458.35 | Out of Stock | Notify Me |
| 12 | T2082217 Halfnut, M6, RH Thread | Halfnut, M6, RH Thread | 1 | $2.25 | Available to order | 1 |
| 13 | T1199660 Gearchange Mechanism Assembly | Gearchange Mechanism Assembly | 1 | $169.19 | Available to order | 1 |
| 14 | T1190999 Gearchange, Return Spring | Gearchange, Return Spring | 1 | $4.01 | Available to order | 1 |
| 15 | T3500099 Circlip, External, 14mm shaft | Circlip, External, 14mm shaft | 1 | $1.51 | Available to order | 1 |
| 16 | T3500044 E Circlip | E Circlip | 1 | $0.97 | Available to order | 1 |
| 17 | T3550134 Thrust Washer, 24.5x12x1.2 | Thrust Washer, 24.5x12x1.2 | 1 | $3.39 | Out of Stock | Notify Me |
| 18 | T1190003 Pin, Spring Abutment | Pin, Spring Abutment | 1 | $18.57 | Available to order | 1 |
| 19 | T1190207 Keeper Plate | Keeper Plate | 1 | $20.60 | Available to order | 1 |
| 20 | T3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw | Screw, Cap/Hd, M6 x 10, Enc, Raw | 1 | $1.27 | Available to order | 1 |
| 21 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
| 23 | T2086071 Knuckle, Ball Joint, M6, Enc | Knuckle, Ball Joint, M6, Enc | 1 | $9.72 | Available to order | 1 |
| 24 | T2082937 Washer, 6.4 x 11 x 1.6 | Washer, 6.4 x 11 x 1.6 | 1 | $1.28 | Available to order | 1 |
