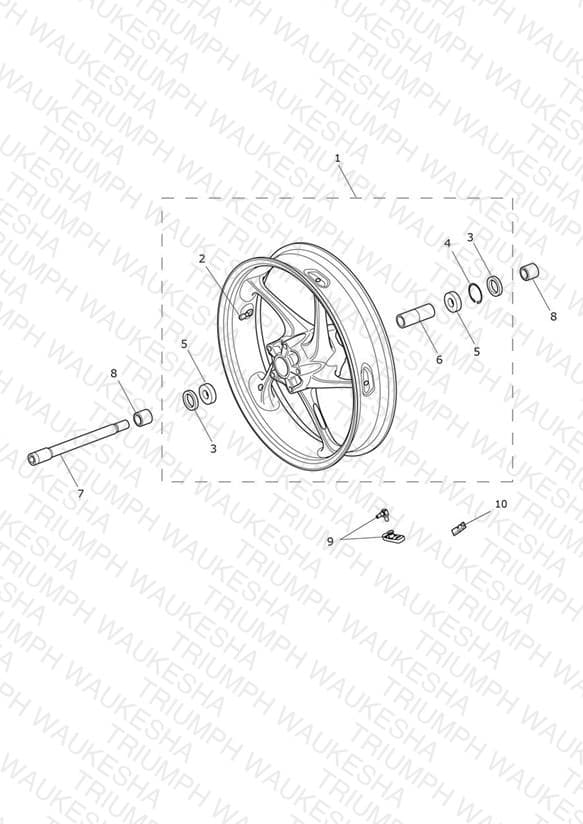

Front Wheel
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2000341 Wheel Assy, Front, Red Pinstripe | Wheel Assy, Front, Red Pinstripe N/A to Street Triple Rx | 1 | $887.43 | Available to order | 1 |
| 1 | T2001013 Front Wheel Assembly, Red | Front Wheel Assembly, Red Street Triple Rx Only | 1 | $941.81 | Backorder — Mid August 2026 | 1 |
| 2 | T2006615 Valve Assy, aluminium, 90, Slv | Valve Assy, aluminium, 90, Slv | 1 | $16.04 | Available to order | 1 |
| 3 | T3600703 Oil Seal, 30 42 6 | Oil Seal, 30 42 6 | 2 | $12.38 | Available to order | 2 |
| 4 | T3500401 Circlip, Int Dia 42 | Circlip, Int Dia 42 | 1 | $16.04 | Available to order | 1 |
| 5 | T3800702 Bearing Ball, 20 42 12 | Bearing Ball, 20 42 12 N/A to Street Triple Rx | 2 | $38.50 | Available to order | 2 |
| 6 | T2004201 Spacer, Wheel, 20 81 | Spacer, Wheel, 20 81 | 1 | $38.99 | Available to order | 1 |
| 7 | T2000650 Front Wheel Spindle | Front Wheel Spindle | 1 | $94.11 | Available to order | 1 |
| 8 | T2001422 Spacer, 30 OD, 20.2 ID | Spacer, 30 OD, 20.2 ID | 2 | $7.18 | Available to order | 2 |
| 9 | T2504861 Sensor, TPMS, 90 Deg, 434MHZ | Sensor, TPMS, 90 Deg, 434MHZ All Expt JP & HK - If fitted | 1 | $221.99 | Available to order | 1 |
| 9 | T2504868 Sensor, TPMS, 90 Deg, 315MHZ | Sensor, TPMS, 90 Deg, 315MHZ JP Only - If fitted | 1 | $232.11 | Backorder — Late August 2026 | 1 |
| 10 | T2006699 Wheel Weight, 5 Gram | Wheel Weight, 5 Gram | — | $7.90 | Available to order | 1 |
