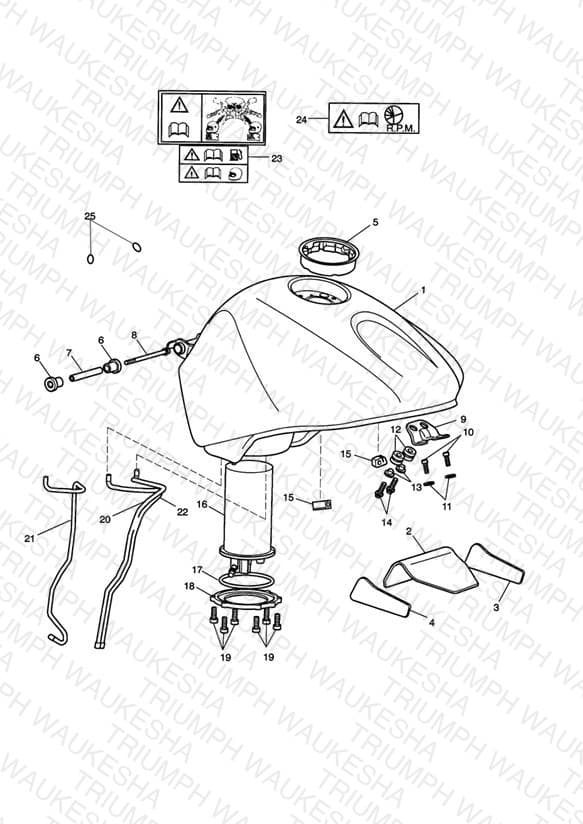

Fuel Tank, Fuel Pump & Fittings >388957, Black Tanks; >389422, Green Tanks; >388884, White Tanks
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2401101-PG Kit, Fuel Tank Assy | Kit, Fuel Tank Assy Jet Black - All expt US Cal & TW; Includes heat pads, items 2, 3 & 4, and seal, item 5 | 1 | $1443.21 | Available to order | 1 |
| 1 | T2401102-PG Kit, Fuel Tank Assy | Kit, Fuel Tank Assy Jet Black - US Cal & TW only; Includes heat pads, items 2, 3 & 4, and seal, item 5 | 1 | $1443.21 | Out of Stock | Notify Me |
| 1 | T2401101-HG Kit, Fuel Tank Assy | Kit, Fuel Tank Assy Roul Green - All expt US Cal & TW; Includes heat pads, items 2, 3 & 4, and seal, item 5 | 1 | $1940.85 | Available to order | 1 |
| 1 | T2401102-HG Kit, Fuel Tank Assy | Kit, Fuel Tank Assy Roulette Green - US Cal & TW only; Includes heat pads, items 2, 3 & 4, and seal, item 5 | 1 | $1940.85 | Out of Stock | Notify Me |
| 1 | T2401101-NF Kit, Fuel Tank Assy | Kit, Fuel Tank Assy Fusion White - All expt US Cal & TW; Includes heat pads, items 2, 3 & 4, and seal, item 5 | 1 | $1940.85 | Backorder — Late August 2026 | 1 |
| 1 | T2401102-NF Kit, Fuel Tank Assy | Kit, Fuel Tank Assy Fusion White - US Cal & TW only; Includes heat pads, items 2, 3 & 4, and seal, item 5 | 1 | $1940.85 | Out of Stock | Notify Me |
| 2 | T2401080 Heat Pad, Centre | Heat Pad, Centre | 1 | $28.50 | Available to order | 1 |
| 3 | T2401081 Heat Pad, LH | Heat Pad, LH | 1 | $14.58 | Available to order | 1 |
| 4 | T2401082 Heat Pad, RH | Heat Pad, RH | 1 | $14.58 | Available to order | 1 |
| 5 | T2405034 Seal, Fuel Filler Cap | Seal, Fuel Filler Cap | 1 | $8.46 | Available to order | 1 |
| 6 | T2400446 Rubber Bush | Rubber Bush | 2 | $3.24 | Out of Stock | Notify Me |
| 7 | T2401070 Turned Spacer, Tank Mount | Turned Spacer, Tank Mount | 1 | $8.09 | Available to order | 1 |
| 8 | T3205079 Bolt, HHF, Lghtd, M6 x 105, Slv | Bolt, HHF, Lghtd, M6 x 105, Slv | 1 | $3.50 | Available to order | 1 |
| 9 | T2401060 Bracket, Fuel Tank Front Mount | Bracket, Fuel Tank Front Mount | 1 | $11.12 | Available to order | 1 |
| 10 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 2 | $1.51 | Available to order | 2 |
| 11 | T3555025 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 2 | $1.72 | Available to order | 2 |
| 12 | T3020601 Grommet, Castellated | Grommet, Castellated | 2 | $4.01 | Available to order | 2 |
| 13 | T3010710 Flanged Sleeve, 6.4 x 9.6 x 13.4 | Flanged Sleeve, 6.4 x 9.6 x 13.4 | 2 | $4.12 | Available to order | 2 |
| 14 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 2 | $2.63 | Available to order | 2 |
| 15 | T2400643 Rubber Pad, Tank To Frame, Small | Rubber Pad, Tank To Frame, Small | 2 | $2.74 | Backorder — Early August 2026 | 2 |
| 16 | T2401977 Fuel Pump Module | Fuel Pump Module | 1 | $481.76 | Available to order | 1 |
| 17 | T2401887 Seal, Fuel Pump Module | Seal, Fuel Pump Module | 1 | $10.25 | Available to order | 1 |
| 18 | T2400562 Location Plate, Pump | Location Plate, Pump | 1 | $37.09 | Available to order | 1 |
| 19 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 6 | $5.30 | Available to order | 6 |
| 20 | T3620460 Fuel Tank Drain Hose | Fuel Tank Drain Hose Not US CAL & TW | 1 | $3.59 | Available to order | 1 |
| 21 | T3620452 Formed Hose, Evap | Formed Hose, Evap US CAL & TW only | 1 | $3.59 | Available to order | 1 |
| 23 | T3900194 Label, Fuel Tank, White Text | Label, Fuel Tank, White Text | 1 | $5.69 | Available to order | 1 |
| 24 | T3900154 Label, Running In, White Text | Label, Running In, White Text | 1 | $2.85 | Available to order | 1 |
| 25 | T2307660 Protective Tape, Cut, Circle | Protective Tape, Cut, Circle | 1 | $4.12 | Available to order | 1 |
