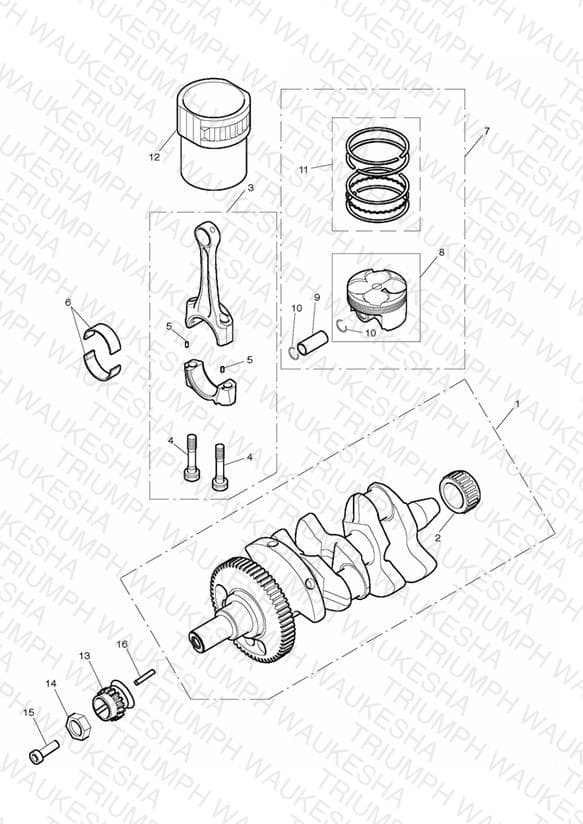

Crankshaft, Connecting Rods, Pistons & Liners
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1100999 Crankshaft Assy | Crankshaft Assy ** Part No Longer Available ** | 1 | $1690.80 | Obsolete | View Details |
| 2 | T3800120 Bearing, 28 x 41 x 21 Wide | Bearing, 28 x 41 x 21 Wide | 1 | $80.23 | Available to order | 1 |
| 3 | T1110470 Conrod Assy | Conrod Assy | 3 | $254.46 | Available to order | 3 |
| 4 | T1110451 Bolt, M8 x 37 x 0.75 | Bolt, M8 x 37 x 0.75 | 6 | $21.58 | Available to order | 6 |
| 5 | T1110452 Dowel, 3 x 5 | Dowel, 3 x 5 | 6 | $3.04 | Available to order | 6 |
| 6 | T1110401 Bearing Shell | Bearing Shell White | — | $12.48 | Available to order | 1 |
| 6 | T1110402 Bearing Shell | Bearing Shell Red | — | $12.48 | Backorder — Late October 2026 | 1 |
| 7 | T1120430 Piston Assy | Piston Assy > 454081 | 3 | $377.61 | Obsolete | View Details |
| 7 | T1121650 Piston Assy, 74.0, Cast | Piston Assy, 74.0, Cast Change all 3 at same time - 454082 > | 3 | $444.22 | Available to order | 3 |
| 8 | T1120431 Piston & Circlip Assy | Piston & Circlip Assy > 454081 | 3 | $271.96 | Out of Stock | Notify Me |
| 8 | T1121501 Piston & Circlip Assy | Piston & Circlip Assy 454082 > | 3 | $199.37 | Obsolete | View Details |
| 9 | T1121675 Gudgeon Pin, Dia 16.0 | Gudgeon Pin, Dia 16.0 | 3 | $38.22 | Available to order | 3 |
| 10 | T1120400 Circlip | Circlip | 6 | $2.53 | Available to order | 6 |
| 11 | T1120515 Piston Ring Set dia 74.0 | Piston Ring Set dia 74.0 > 454081 | 3 | $107.98 | Available to order | 3 |
| 11 | T1121175 Piston Ring Set, Dia 74.0 | Piston Ring Set, Dia 74.0 454082 > | 3 | $111.68 | Out of Stock | Notify Me |
| 12 | T1160073 Cylinder Liner, dia 74.0 | Cylinder Liner, dia 74.0 > 454081 | 3 | $234.31 | Available to order | 3 |
| 12 | T1166666 Liner, Cyl, Iron, 74mm | Liner, Cyl, Iron, 74mm 454082 > | 3 | $241.69 | Available to order | 3 |
| 13 | T1140500 Sprocket, Camdrive | Sprocket, Camdrive > Eng No 383917 | 1 | $102.62 | Available to order | 1 |
| 13 | T1140501 Sprocket, Camdrive, 17T | Sprocket, Camdrive, 17T Eng No 383918 > | 1 | $102.62 | Available to order | 1 |
| 14 | T1100407 Spacer, Hex | Spacer, Hex | 1 | $14.28 | Available to order | 1 |
| 15 | T3050161 Screw, Cap/HD. M8 x 20, Raw | Screw, Cap/HD. M8 x 20, Raw | 1 | $1.04 | Backorder — Late September 2026 | 1 |
| 16 | T1100808 Key, Crankshaft | Key, Crankshaft | 1 | $14.11 | Available to order | 1 |
