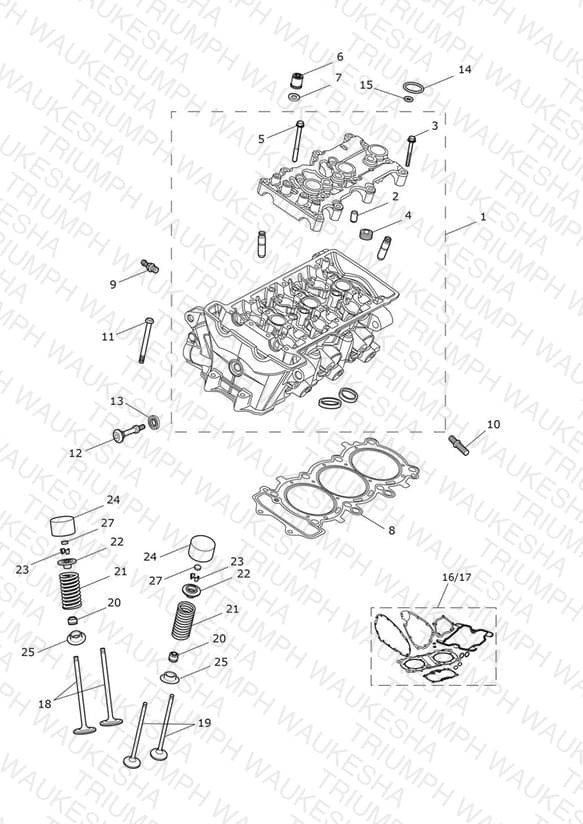

Cylinder Head & Valves
Parts (78)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1159010 Cylinder Head, 3 Cyl, M/C, SAI, Black | Cylinder Head, 3 Cyl, M/C, SAI, Black | 1 | $2231.94 | Available to order | 1 |
| 2 | T3000102 Dowel, Hollow, 10 x 14 | Dowel, Hollow, 10 x 14 | 3 | $1.79 | Available to order | 3 |
| 3 | T3201029 Bolt, RHHF, M6 x 40, Raw | Bolt, RHHF, M6 x 40, Raw | 14 | $2.10 | Backorder — Early September 2026 | 14 |
| 4 | T3450000 Plug, PTF-SAE Short, 3/8-18, Enc | Plug, PTF-SAE Short, 3/8-18, Enc | 3 | $6.65 | Available to order | 3 |
| 5 | T3201038 Bolt, RHHF, M6x60, 10.9 | Bolt, RHHF, M6x60, 10.9 | 2 | $2.10 | Available to order | 2 |
| 6 | T1150780 Nut, Cylinder Head, M9 | Nut, Cylinder Head, M9 | 8 | $7.87 | Available to order | 8 |
| 7 | T3555015 Washer, 9.2 x 18 x 2 | Washer, 9.2 x 18 x 2 | 8 | $2.63 | Available to order | 8 |
| 8 | T1159000 Cyl Head Gasket, Dia 78.0 | Cyl Head Gasket, Dia 78.0 | 1 | $66.97 | Available to order | 1 |
| 9 | T2102333 Spigot, Bypass | Spigot, Bypass | 1 | $28.96 | Available to order | 1 |
| 10 | T3100015 Stud, Shld, M8 x 36.5, Slv, Enc | Stud, Shld, M8 x 36.5, Slv, Enc | 6 | $2.74 | Available to order | 6 |
| 11 | T3331300 Screw, PH, TX, M6 x 88, Slv | Screw, PH, TX, M6 x 88, Slv | 2 | $5.60 | Available to order | 2 |
| 12 | T3332061 Bolt, Lge, Skt HD, Shld, M6 x 50.5 | Bolt, Lge, Skt HD, Shld, M6 x 50.5 | 1 | $5.42 | Out of Stock | Notify Me |
| 13 | T1260309 Seal, Cam Cover, Screw, Twin Lip | Seal, Cam Cover, Screw, Twin Lip | 1 | $5.82 | Available to order | 1 |
| 14 | T3600188 O Ring, Fluorocarbon | O Ring, Fluorocarbon | 3 | $1.87 | Available to order | 3 |
| 15 | T3600187 O Ring, 10 X 2.0 | O Ring, 10 X 2.0 | 3 | $2.62 | Available to order | 3 |
| 16 | T3990176 Gasket Kit, Full | Gasket Kit, Full See Service Section for kit breakdown | 1 | $619.87 | Available to order | 1 |
| 17 | T3990177 Gasket Kit, Cyl Head | Gasket Kit, Cyl Head See Service Section for kit breakdown | 1 | $346.09 | Available to order | 1 |
| 18 | T1130774 Valve, Inlet, Nitrided | Valve, Inlet, Nitrided | 6 | $65.63 | Available to order | 6 |
| 19 | T1130672 Valve, Exhaust | Valve, Exhaust | 6 | $71.29 | Available to order | 6 |
| 20 | T1130400 Seal, 4mm Stem | Seal, 4mm Stem | 12 | $6.94 | Available to order | 12 |
| 21 | T1130999 Spring Valve | Spring Valve | 12 | $11.12 | Available to order | 12 |
| 22 | T1130677 Retainer, Spring Valve | Retainer, Spring Valve | 12 | $12.38 | Available to order | 12 |
| 23 | T1130031 Collet, Valve, 4mm Stem, Thin | Collet, Valve, 4mm Stem, Thin | 24 | $1.18 | Unavailable | View Details |
| 24 | T1130494 Tappet, Bucket, Dia 25.4 | Tappet, Bucket, Dia 25.4 | 12 | $38.22 | Available to order | 12 |
| 25 | T1130712 Platform, Spring Valve | Platform, Spring Valve | 12 | $7.22 | Available to order | 12 |
| 27 | T1130540 Shim, 1.700mm | Shim, 1.700mm | — | $10.18 | Available to order | 1 |
| 27 | T1130542 Shim, 1.725mm | Shim, 1.725mm | — | $10.18 | Available to order | 1 |
| 27 | T1130544 Shim, 1.750mm | Shim, 1.750mm | — | $10.18 | Available to order | 1 |
| 27 | T1130546 Shim, 1.775mm | Shim, 1.775mm | — | $10.18 | Available to order | 1 |
| 27 | T1130548 Shim, 1.800mm | Shim, 1.800mm | — | $10.18 | Available to order | 1 |
| 27 | T1130550 Shim, 1.825mm | Shim, 1.825mm | — | $10.18 | Available to order | 1 |
| 27 | T1130552 Shim, 1.850mm | Shim, 1.850mm | — | $10.18 | Available to order | 1 |
| 27 | T1130554 Shim, 1.875mm | Shim, 1.875mm | — | $10.18 | Available to order | 1 |
| 27 | T1130556 Shim, 1.900mm | Shim, 1.900mm | — | $10.18 | Available to order | 1 |
| 27 | T1130558 Shim, 1.925mm | Shim, 1.925mm | — | $10.18 | Available to order | 1 |
| 27 | T1130560 Shim, 1.950mm | Shim, 1.950mm | — | $10.18 | Available to order | 1 |
| 27 | T1130562 Shim, 1.975mm | Shim, 1.975mm | — | $10.18 | Available to order | 1 |
| 27 | T1130564 Shim, 2.000mm | Shim, 2.000mm | — | $10.18 | Available to order | 1 |
| 27 | T1130566 Shim, 2.025mm | Shim, 2.025mm | — | $10.18 | Available to order | 1 |
| 27 | T1130568 Shim, 2.050mm | Shim, 2.050mm | — | $10.18 | Available to order | 1 |
| 27 | T1130570 Shim, 2.075mm | Shim, 2.075mm | — | $10.18 | Available to order | 1 |
| 27 | T1130572 Shim, 2.100mm | Shim, 2.100mm | — | $10.18 | Available to order | 1 |
| 27 | T1130574 Shim, 2.125mm | Shim, 2.125mm | — | $10.18 | Available to order | 1 |
| 27 | T1130576 Shim, 2.150mm | Shim, 2.150mm | — | $10.18 | Available to order | 1 |
| 27 | T1130578 Shim, 2.175mm | Shim, 2.175mm | — | $10.18 | Available to order | 1 |
| 27 | T1130580 Shim, 2.200mm | Shim, 2.200mm | — | $10.18 | Available to order | 1 |
| 27 | T1130582 Shim, 2.225mm | Shim, 2.225mm | — | $10.18 | Available to order | 1 |
| 27 | T1130584 Shim, 2.250mm | Shim, 2.250mm | — | $10.18 | Available to order | 1 |
| 27 | T1130586 Shim, 2.275mm | Shim, 2.275mm | — | $10.18 | Available to order | 1 |
| 27 | T1130588 Shim, 2.300mm | Shim, 2.300mm | — | $10.18 | Available to order | 1 |
| 27 | T1130590 Shim, 2.325mm | Shim, 2.325mm | — | $10.18 | Available to order | 1 |
| 27 | T1130592 Shim, 2.350mm | Shim, 2.350mm | — | $10.18 | Available to order | 1 |
| 27 | T1130594 Shim, 2.375mm | Shim, 2.375mm | — | $10.18 | Available to order | 1 |
| 27 | T1130596 Shim, 2.400mm | Shim, 2.400mm | — | $10.18 | Available to order | 1 |
| 27 | T1130598 Shim, 2.425mm | Shim, 2.425mm | — | $10.18 | Available to order | 1 |
| 27 | T1130600 Shim, 2.450mm | Shim, 2.450mm | — | $10.18 | Available to order | 1 |
| 27 | T1130602 Shim, 2.475mm | Shim, 2.475mm | — | $10.18 | Available to order | 1 |
| 27 | T1130604 Shim, 2.500mm | Shim, 2.500mm | — | $10.18 | Available to order | 1 |
| 27 | T1130605 Shim, 2.525mm | Shim, 2.525mm | — | $10.18 | Available to order | 1 |
| 27 | T1130606 Shim, 2.550mm | Shim, 2.550mm | — | $10.18 | Available to order | 1 |
| 27 | T1130607 Shim, 2.575mm | Shim, 2.575mm | — | $10.18 | Available to order | 1 |
| 27 | T1130608 Shim, 2.600mm | Shim, 2.600mm | — | $10.18 | Available to order | 1 |
| 27 | T1130609 Shim, 2.625mm | Shim, 2.625mm | — | $10.18 | Available to order | 1 |
| 27 | T1130610 Shim, 2.650mm | Shim, 2.650mm | — | $10.18 | Available to order | 1 |
| 27 | T1130611 Shim, 2.675mm | Shim, 2.675mm | — | $10.18 | Available to order | 1 |
| 27 | T1130612 Shim, 2.700mm | Shim, 2.700mm | — | $10.18 | Available to order | 1 |
| 27 | T1130613 Shim, 2.725mm | Shim, 2.725mm | — | $10.18 | Available to order | 1 |
| 27 | T1130614 Shim, 2.750mm | Shim, 2.750mm | — | $10.18 | Available to order | 1 |
| 27 | T1130615 Shim, 2.775mm | Shim, 2.775mm | — | $10.18 | Available to order | 1 |
| 27 | T1130616 Shim, 2.800mm | Shim, 2.800mm | — | $10.18 | Available to order | 1 |
| 27 | T1130617 Shim, 2.825mm | Shim, 2.825mm | — | $10.18 | Available to order | 1 |
| 27 | T1130618 Shim, 2.850mm | Shim, 2.850mm | — | $10.18 | Available to order | 1 |
| 27 | T1130619 Shim, 2.875mm | Shim, 2.875mm | — | $10.18 | Available to order | 1 |
| 27 | T1130621 Shim, 2.900mm | Shim, 2.900mm | — | $10.18 | Available to order | 1 |
| 27 | T1130622 Shim, 2.925mm | Shim, 2.925mm | — | $10.18 | Available to order | 1 |
| 27 | T1130623 Shim, 2.950mm | Shim, 2.950mm | — | $10.18 | Available to order | 1 |
| 27 | T1130624 Shim, 2.975mm | Shim, 2.975mm | — | $10.18 | Available to order | 1 |
| 27 | T1130625 Shim, 3.000mm | Shim, 3.000mm | — | $10.18 | Available to order | 1 |
