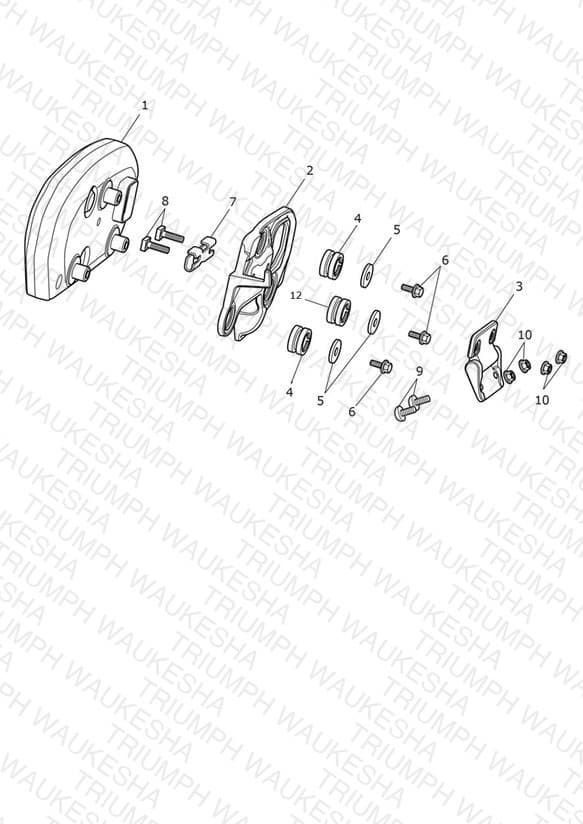

Instruments
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2503601 Instrument Pack, TFT, MPH UK | Instrument Pack, TFT, MPH UK UK | 1 | $1544.63 | Backorder — Late August 2026 | 1 |
| 1 | T2503602 Instrument Pack, TFT, MPH US | Instrument Pack, TFT, MPH US US | 1 | $1544.63 | Available to order | 1 |
| 1 | T2503603 Instrument Pack, TFT, KMH EU | Instrument Pack, TFT, KMH EU All Except UK, US, CA & JP | 1 | $1544.63 | Available to order | 1 |
| 1 | T2503604 Instrument Pack, TFT, KMH JP | Instrument Pack, TFT, KMH JP JP | 1 | $1544.63 | Backorder — Late August 2026 | 1 |
| 1 | T2503605 Instrument Pack, TFT, KMH CA | Instrument Pack, TFT, KMH CA CA | 1 | $1544.63 | Available to order | 1 |
| 2 | T2502243 TFT Instrument Cradle, Mlgd | TFT Instrument Cradle, Mlgd | 1 | $49.94 | Available to order | 1 |
| 3 | T2306464 Hinge Assy, Friction | Hinge Assy, Friction | 1 | $70.35 | Available to order | 1 |
| 4 | T3020056 Grommet, Instruments | Grommet, Instruments | 3 | $3.50 | Available to order | 3 |
| 5 | T3555011 Washer, 6.5 x 20 x 2 | Washer, 6.5 x 20 x 2 | 3 | $0.97 | Available to order | 3 |
| 6 | T3330894 Bolt, RHHF, M5 x 10 | Bolt, RHHF, M5 x 10 | 3 | $6.65 | Available to order | 3 |
| 7 | T2702889 Hinge Mount, Plate | Hinge Mount, Plate | 1 | $2.95 | Available to order | 1 |
| 8 | T3100105 Stud, M5 x 18, Slv | Stud, M5 x 18, Slv | 2 | $2.17 | Available to order | 2 |
| 9 | T3330945 Screw, But/Hd, M5 x 16, Blk | Screw, But/Hd, M5 x 16, Blk | 2 | $8.46 | Available to order | 2 |
| 10 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 4 | $2.25 | Available to order | 4 |
