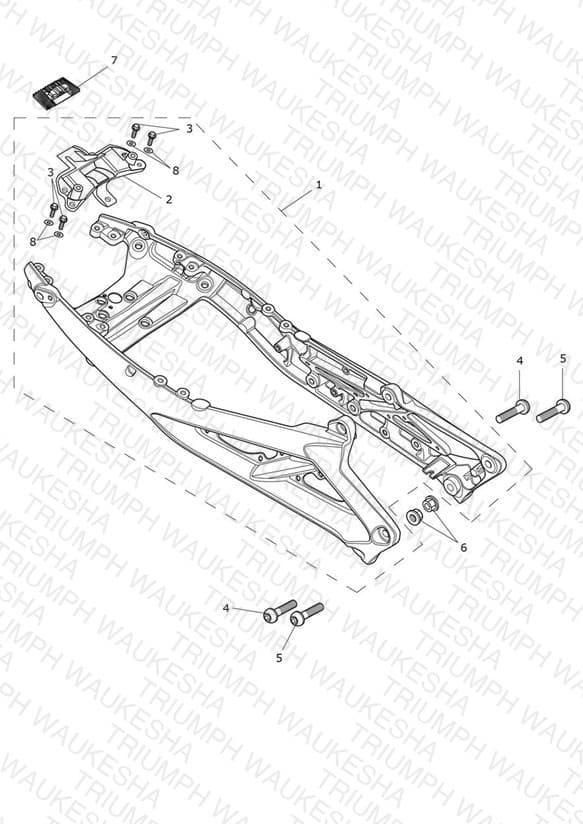

Rear Sub-Frame & Fittings
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2079480-MS Rear Subframe Assy, Silver | Rear Subframe Assy, Silver | 1 | $783.50 | Available to order | 1 |
| 1 | T2079613 Rear Subframe Assembly, Red | Rear Subframe Assembly, Red Fitted to Silver Ice bikes | 1 | $756.97 | Available to order | 1 |
| 1 | T2073602 Rear Subframe Assy, Blk, Slv | Rear Subframe Assy, Blk, Slv BB9888 > Fitted to Carbon Black Bikes | 1 | $746.22 | Available to order | 1 |
| 2 | T2070577 Rear Bridge | Rear Bridge | 1 | $169.19 | Backorder — Late August 2026 | 1 |
| 3 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 4 | $3.50 | Available to order | 4 |
| 4 | T3332670 Bolt, TX, M10 x 30 | Bolt, TX, M10 x 30 | 2 | $4.92 | Available to order | 2 |
| 5 | T3332675 Bolt, TX, M10 x 40 | Bolt, TX, M10 x 40 | 2 | $15.12 | Available to order | 2 |
| 6 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 2 | $4.16 | Available to order | 2 |
| 7 | T2070651 Mounting Rubber | Mounting Rubber | 1 | $4.19 | Backorder — Late August 2026 | 1 |
| 8 | T3552002 Washer, M6 x 14 x 1 | Washer, M6 x 14 x 1 | 4 | $1.69 | Available to order | 4 |
