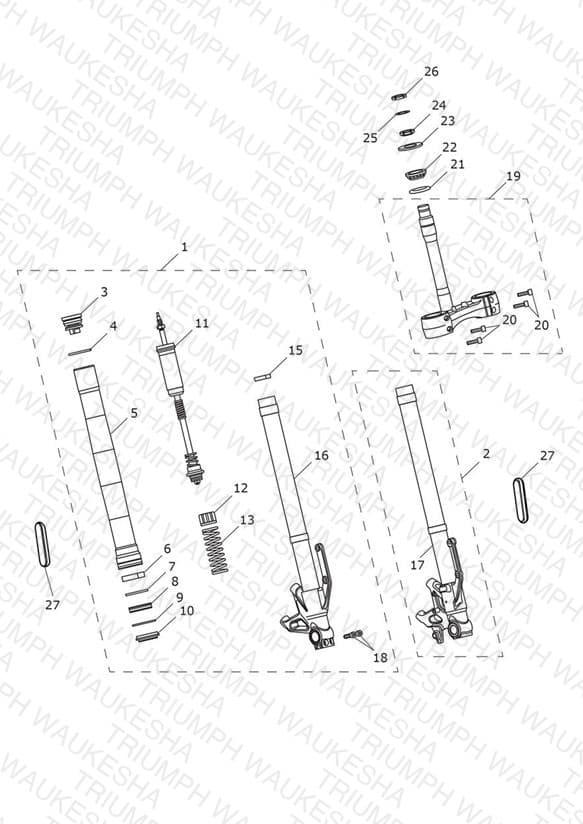

Front Forks & Yokes - Low Ride Height Version
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2046806 Fork Leg Assembly, RH | Fork Leg Assembly, RH | 1 | $1003.41 | Available to order | 1 |
| 2 | T2046807 Fork Leg Assembly, LH | Fork Leg Assembly, LH | 1 | $1003.41 | Available to order | 1 |
| 3 | T2049906 Fork Bolt, P/Comp, RH | Fork Bolt, P/Comp, RH | 1 | $84.58 | Available to order | 1 |
| 3 | T2049903 Fork Bolt, P/Comp, LH | Fork Bolt, P/Comp, LH | 1 | $84.58 | Out of Stock | Notify Me |
| 4 | T2049874 O Ring | O Ring | 2 | $4.12 | Available to order | 2 |
| 5 | T2049897 Outer Tube | Outer Tube | 2 | $572.13 | Available to order | 2 |
| 6 | T2049995 Guide Bush | Guide Bush | 2 | $14.89 | Available to order | 2 |
| 7 | T2049993 Seal Spacer | Seal Spacer | 2 | $5.98 | Available to order | 2 |
| 8 | T2049992 Oil Seal | Oil Seal | 2 | $21.52 | Available to order | 2 |
| 9 | T2049898 Internal Circlip | Internal Circlip | 2 | $3.04 | Available to order | 2 |
| 10 | T2049866 Dust Seal | Dust Seal | 2 | $20.99 | Available to order | 2 |
| 11 | T2049934 Piston Rod, P/Comp | Piston Rod, P/Comp RH Assy Only | 1 | $572.13 | Out of Stock | Notify Me |
| 11 | T2049908 Joint Rod, P/Comp | Joint Rod, P/Comp LH Assy Only | 1 | $165.00 | Out of Stock | Notify Me |
| 12 | T2049905 Spg Collar B | Spg Collar B RH Assy Only | 1 | $3.39 | Out of Stock | Notify Me |
| 12 | T2049901 Spg Seat Comp | Spg Seat Comp LH Assy Only | 1 | $102.64 | Out of Stock | Notify Me |
| 13 | T2049907 Spring | Spring | 2 | $100.76 | Available to order | 2 |
| 15 | T2049872 Slide Bush | Slide Bush | 2 | $15.81 | Backorder — Early September 2026 | 2 |
| 16 | T2049904 Slide Pipe, P/Comp, RH | Slide Pipe, P/Comp, RH | 1 | $633.73 | Available to order | 1 |
| 17 | T2049896 Slide Pipe, P/Comp, LH | Slide Pipe, P/Comp, LH | 1 | $633.73 | Out of Stock | Notify Me |
| 18 | T2046146 Hex Socket Bolt | Hex Socket Bolt | 2 | $5.42 | Backorder — Late September 2026 | 2 |
| 19 | T2048903 Lower Yoke Assembly, Black | Lower Yoke Assembly, Black | 1 | $422.46 | Out of Stock | Notify Me |
| 20 | T3050300 Screw, Cap/HD, M8 | Screw, Cap/HD, M8 | 4 | $2.74 | Available to order | 4 |
| 21 | T3600234 Dust Seal, Dia 55 | Dust Seal, Dia 55 | 1 | $8.34 | Available to order | 1 |
| 22 | T3800091 Bearing, Sac | Bearing, Sac | 1 | $33.95 | Available to order | 1 |
| 23 | T2046559 Cover, Headstock Bearing | Cover, Headstock Bearing | 1 | $10.18 | Available to order | 1 |
| 24 | T2040301 Adjuster Nut, M30, Lower | Adjuster Nut, M30, Lower | 1 | $28.50 | Available to order | 1 |
| 25 | T2044183 Washer, Headstock | Washer, Headstock | 1 | $8.30 | Available to order | 1 |
| 26 | T2040304 Locknut, M30 | Locknut, M30 | 1 | $20.60 | Available to order | 1 |
| 27 | T2700332 Reflector, Amber, Oval | Reflector, Amber, Oval N/A to BR or TH | 2 | $6.39 | Available to order | 2 |
