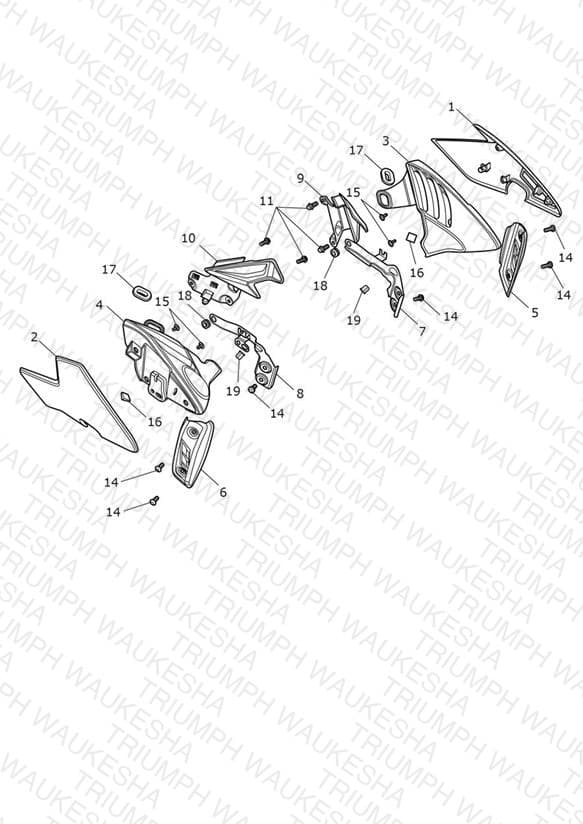

Side Panels
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2308878-CW Rad Cowl, Outer, LH, Painted | Rad Cowl, Outer, LH, Painted Diablo Red | 1 | $208.70 | Available to order | 1 |
| 1 | T2308878-PR Rad Cowl, Outer, LH, Painted | Rad Cowl, Outer, LH, Painted Phantom Black | 1 | $208.70 | Backorder — Late August 2026 | 1 |
| 2 | T2309115-CW Rad Cowl, Outer, RH, Painted | Rad Cowl, Outer, RH, Painted Diablo Red | 1 | $208.70 | Backorder — Late August 2026 | 1 |
| 2 | T2309115-PR Rad Cowl, Outer, RH, Painted | Rad Cowl, Outer, RH, Painted Phantom Black | 1 | $208.70 | Available to order | 1 |
| 3 | T2309049 Rad Cowl, Inner, LH, Mldg | Rad Cowl, Inner, LH, Mldg | 1 | $23.08 | Available to order | 1 |
| 4 | T2309047 Rad Cowl, Inner, RH, Mldg | Rad Cowl, Inner, RH, Mldg | 1 | $23.08 | Available to order | 1 |
| 5 | T2100873 Finisher, Rad Cowl, LH, Black | Finisher, Rad Cowl, LH, Black | 1 | $28.00 | Out of Stock | Notify Me |
| 6 | T2100874 Finisher, Rad Cowl, RH, Black | Finisher, Rad Cowl, RH, Black | 1 | $28.00 | Available to order | 1 |
| 7 | T2309123 Bracket, Rad Cowl, LH | Bracket, Rad Cowl, LH | 1 | $8.46 | Available to order | 1 |
| 8 | T2309122 Bracket, Rad Cowl, RH | Bracket, Rad Cowl, RH | 1 | $8.46 | Available to order | 1 |
| 9 | T2309779 Headstock Infill, LH | Headstock Infill, LH | 1 | $53.24 | Available to order | 1 |
| 10 | T2309789 Headstock Infill, RH | Headstock Infill, RH | 1 | $53.24 | Available to order | 1 |
| 11 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 4 | $3.50 | Available to order | 4 |
| 14 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 6 | $0.97 | Available to order | 6 |
| 15 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 4 | $0.75 | Available to order | 4 |
| 16 | T3450345 Clip, Wire, Self Adhesive | Clip, Wire, Self Adhesive | 2 | $4.19 | Available to order | 2 |
| 17 | T3020059 Grommet, Bodywork | Grommet, Bodywork | 2 | $2.55 | Backorder — Late August 2026 | 2 |
| 18 | T3020131 Grommet, 9 x 2 x 6 | Grommet, 9 x 2 x 6 | 2 | $2.00 | Available to order | 2 |
| 19 | T2204745 Grommet, Secondary Cvr Brkt | Grommet, Secondary Cvr Brkt | 2 | $2.63 | Available to order | 2 |
