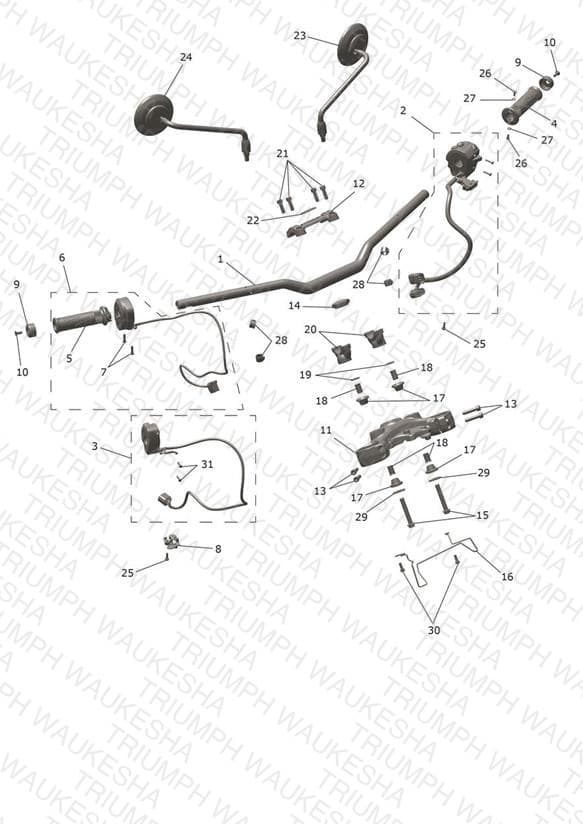

Handlebars, Top Yoke & Mirrors
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2044052 Handlebar, Tapered | Handlebar, Tapered | 1 | $209.82 | Available to order | 1 |
| 2 | T2045772 Switchcube, LH, DRL | Switchcube, LH, DRL All Except CA, CN & US | 1 | $304.21 | Backorder — Early August 2026 | 1 |
| 2 | T2044534 Switchcube, LH, Non-DRL | Switchcube, LH, Non-DRL CA, CN & US Only | 1 | $273.05 | Available to order | 1 |
| 3 | T2043616 Switchcube, RH | Switchcube, RH | 1 | $142.01 | Available to order | 1 |
| 4 | T2045139 Grip, Handlebar, LH | Grip, Handlebar, LH | 1 | $26.65 | Backorder — Early September 2026 | 1 |
| 5 | T2044707 Grip, RH | Grip, RH | 1 | $26.65 | Available to order | 1 |
| 6 | T2046075 APS Sensor, Assy | APS Sensor, Assy | 1 | $266.39 | Available to order | 1 |
| 7 | T3050314 Bolt, M5 x 20 | Bolt, M5 x 20 | 2 | $7.02 | Available to order | 2 |
| 8 | T2028043 Bracket, Brake Switch, Front | Bracket, Brake Switch, Front | 1 | $12.94 | Available to order | 1 |
| 9 | T2046673 Finisher, Bar End, Clear | Finisher, Bar End, Clear | 2 | $22.97 | Available to order | 2 |
| 10 | T3330959 Screw, Csk, M6 x 16. Slv, Enc | Screw, Csk, M6 x 16. Slv, Enc | 2 | $2.37 | Available to order | 2 |
| 11 | T2045924 Upper Yoke | Upper Yoke | 1 | $266.39 | Backorder — Late August 2026 | 1 |
| 12 | T2043408 Clamp, Handlebar | Clamp, Handlebar | 1 | $64.83 | Available to order | 1 |
| 13 | T3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv | Screw, Cap/Hd, M8 x 1.25 x 35, Slv | 4 | $4.74 | Available to order | 4 |
| 14 | T2042135 Nut, Upper, M25, Domed | Nut, Upper, M25, Domed | 1 | $3.77 | Available to order | 1 |
| 15 | T3205765 Bolt, HHF, M10 x 65, Slv | Bolt, HHF, M10 x 65, Slv | 2 | $4.12 | Available to order | 2 |
| 16 | T2046846 Wire Guide, Yoke | Wire Guide, Yoke | 2 | $28.41 | Out of Stock | Notify Me |
| 17 | T2042136 Rubber Bush, Handlebar Clamp | Rubber Bush, Handlebar Clamp | 4 | $8.25 | Available to order | 4 |
| 18 | T2045479 Flanged Sleeve | Flanged Sleeve | 4 | $5.12 | Backorder — Early September 2026 | 4 |
| 19 | T3550632 Washer, 10.5 x 21 x 2 | Washer, 10.5 x 21 x 2 | 2 | $2.95 | Available to order | 2 |
| 20 | T2044331 Riser, Handlebars | Riser, Handlebars | 1 | $47.95 | Available to order | 1 |
| 21 | T3051097 Screw, Cap/Hd, M8 x 25, Silver | Screw, Cap/Hd, M8 x 25, Silver | 4 | $4.12 | Available to order | 4 |
| 22 | T2043415 Badge, Handlebar Clamp | Badge, Handlebar Clamp | 1 | $69.37 | Available to order | 1 |
| 23 | T2060137 Mirror Assy, Brushed, LH | Mirror Assy, Brushed, LH | 1 | $139.05 | Available to order | 1 |
| 24 | T2060138 Mirror Assy, Brushed, RH | Mirror Assy, Brushed, RH | 1 | $139.05 | Available to order | 1 |
| 25 | T3331750 Screw, Tx, M4 x 17.5, Slv | Screw, Tx, M4 x 17.5, Slv | 2 | $4.30 | Out of Stock | Notify Me |
| 26 | T3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD | Screw, S/Tap, Pan/Hd, M4 x 10, HD | 2 | $7.14 | Available to order | 2 |
| 27 | T3550500 Washer, 4.3 x 9.0 x 0.8 | Washer, 4.3 x 9.0 x 0.8 | 2 | $1.72 | Available to order | 2 |
| 28 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 4 | $3.90 | Available to order | 4 |
| 29 | T3555030 Washer, 10.5 x 30 x 2.5 | Washer, 10.5 x 30 x 2.5 | 2 | $6.65 | Available to order | 2 |
| 30 | T3050331 Screw, Cap/Hd, M6 x 16, Slv, Enc | Screw, Cap/Hd, M6 x 16, Slv, Enc | 2 | $2.35 | Available to order | 2 |
| 31 | T3331857 Screw, Torx, M4 x 0.7 x 18, Blk | Screw, Torx, M4 x 0.7 x 18, Blk | 2 | $1.78 | Available to order | 2 |
