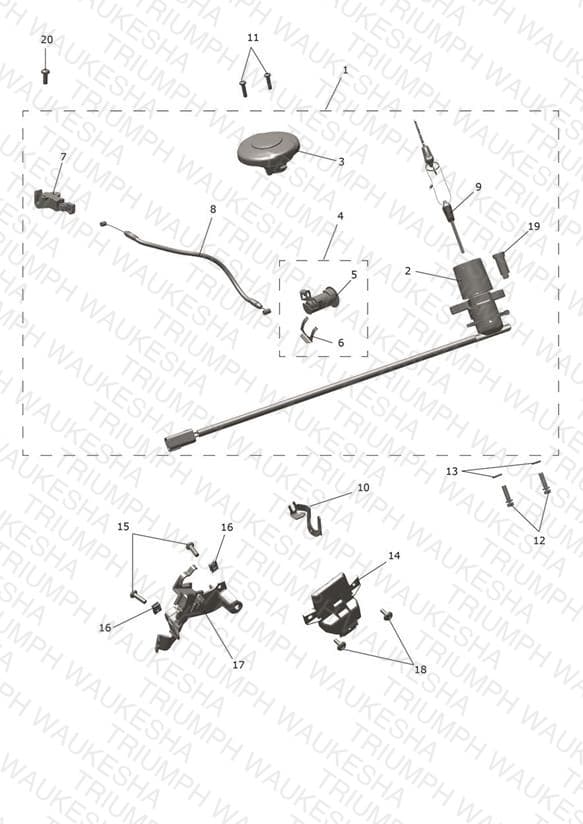

Ignition Switch & Lockset
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2504144 Lockset | Lockset | 1 | $534.43 | Available to order | 1 |
| 2 | T2503928 Ignition Lock, Combined | Ignition Lock, Combined | 1 | $559.51 | Available to order | 1 |
| 3 | T2508017 Filler Cap, Locking | Filler Cap, Locking Includes 2 keys | 1 | $150.96 | Available to order | 1 |
| 4 | T2501924 Seat Lock Assembly | Seat Lock Assembly | 1 | $125.46 | Available to order | 1 |
| 5 | T2501922 Seat Lock, Panel Mount | Seat Lock, Panel Mount | 1 | $30.70 | Out of Stock | Notify Me |
| 6 | T2505616 Clip, Seat Lock | Clip, Seat Lock | 1 | $9.97 | Available to order | 1 |
| 7 | T2503006 Seat Latch | Seat Latch | 1 | $45.80 | Out of Stock | Notify Me |
| 8 | T2504785 Cable, Seat Latch | Cable, Seat Latch | 1 | $26.65 | Out of Stock | Notify Me |
| 9 | T2504577 Key, Cut, Immobiliser | Key, Cut, Immobiliser Supplied as pair | 1 | $79.02 | Out of Stock | Notify Me |
| 9 | T2504578 Key, Blank, Immobiliser | Key, Blank, Immobiliser Supplied as single | 2 | $72.26 | Available to order | 2 |
| 10 | T2501725 Cable Bracket, Seat Lock | Cable Bracket, Seat Lock | 1 | $14.83 | Available to order | 1 |
| 11 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 2 | $0.97 | Available to order | 2 |
| 12 | T3330327 Bolt, Shear, M6 x 22, Enc | Bolt, Shear, M6 x 22, Enc | 2 | $5.24 | Available to order | 2 |
| 13 | T3550436 Washer, M6, Elongated | Washer, M6, Elongated | 2 | $4.45 | Available to order | 2 |
| 14 | T2507434 Immobiliser ECU, RF 434 | Immobiliser ECU, RF 434 All Except JP | 1 | $1173.60 | Available to order | 1 |
| 14 | T2507315 Immobiliser ECU, RF 315 | Immobiliser ECU, RF 315 JP Only | 1 | $1173.60 | Out of Stock | Notify Me |
| 15 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 2 | $4.92 | Available to order | 2 |
| 16 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $4.55 | Available to order | 2 |
| 17 | T2504283 Moulding, Bracket, Immobiliser | Moulding, Bracket, Immobiliser | 1 | $11.55 | Out of Stock | Notify Me |
| 18 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 2 | $5.30 | Available to order | 2 |
| 19 | T2509880 Lock Barrel Kit | Lock Barrel Kit Includes 3 Lock Barrels & Keys | 1 | $77.87 | Available to order | 1 |
| 20 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 2 | $0.97 | Available to order | 2 |
| 21 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
