Silencer Kit, High Level, Slv

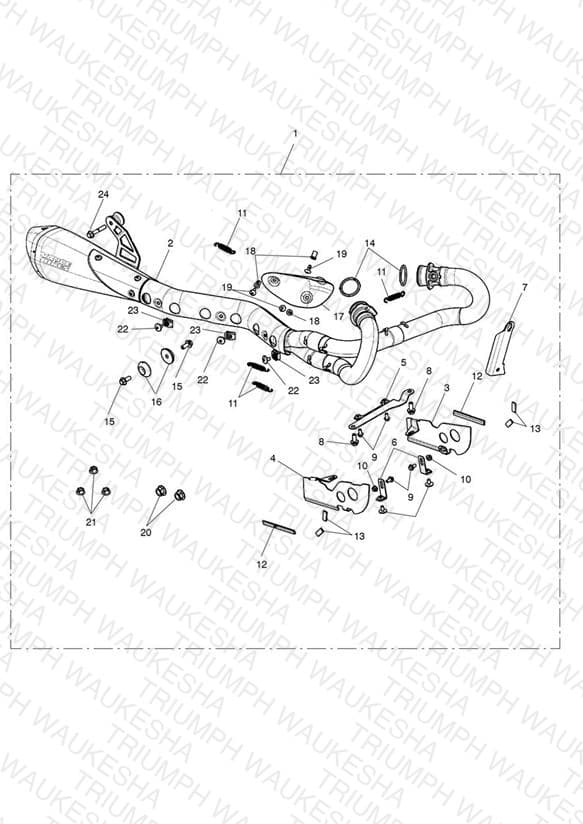

Schematic
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9600620 Silencer, High Level | Silencer, High Level Market Restrictions Apply - Requires A9700591-PG or A9700591-PS or A9700591-PR; N/A for TH | 1 | $1640.00 | Obsolete | View Details |
| 2 | T9600724 Exhaust, High Level, 2-1 | Exhaust, High Level, 2-1 | 1 | $1500.00 | Obsolete | View Details |
| 3 | T9700520 Sump Infill Panel, LH | Sump Infill Panel, LH | 1 | $25.00 | Obsolete | View Details |
| 4 | T9700521 Sump Infill Panel, RH | Sump Infill Panel, RH | 1 | $25.00 | Obsolete | View Details |
| 5 | T9700522 Mount Bracket, Rear | Mount Bracket, Rear | 1 | $18.90 | Obsolete | View Details |
| 6 | T9700523 Mount Bracket, Front | Mount Bracket, Front | 2 | $11.88 | Obsolete | View Details |
| 7 | T9700525 Bracket, Horn | Bracket, Horn | 1 | $11.50 | Obsolete | View Details |
| 8 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 3 | $1.62 | Available to order | 3 |
| 9 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 4 | $1.72 | Available to order | 4 |
| 10 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 2 | $0.67 | Available to order | 2 |
| 11 | T9600809 Spring, S/S, V & H | Spring, S/S, V & H | 4 | $17.80 | Out of Stock | Notify Me |
| 12 | T9710139 Foam Trim, 100mm | Foam Trim, 100mm | 2 | $1.40 | Obsolete | View Details |
| 13 | T9710140 Foam Trim, 25mm | Foam Trim, 25mm | 4 | $0.90 | Obsolete | View Details |
| 14 | T2201429 Gasket, Exhaust Header | Gasket, Exhaust Header | 2 | $15.93 | Available to order | 2 |
| 15 | T3205457 Bolt, HHF, Lghtd, M8 x 20, Enc | Bolt, HHF, Lghtd, M8 x 20, Enc | 2 | $1.62 | Available to order | 2 |
| 16 | T2082877 Footrest Finisher, Rear | Footrest Finisher, Rear | 2 | $66.52 | Available to order | 2 |
| 17 | T2305895 Heatshield, Sidepanel | Heatshield, Sidepanel | 1 | $16.15 | Obsolete | View Details |
| 18 | T3350050 Wellnut, M5 | Wellnut, M5 | 3 | $6.65 | Available to order | 3 |
| 19 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 3 | $4.92 | Available to order | 3 |
| 20 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 2 | $6.07 | Available to order | 2 |
| 21 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 3 | $4.16 | Available to order | 3 |
| 22 | T3332666 Screw, But/Hd ,Skt, M6 x 1.0 x 12, S/S | Screw, But/Hd ,Skt, M6 x 1.0 x 12, S/S | 5 | $4.30 | Available to order | 5 |
| 23 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 3 | $4.92 | Backorder — Early August 2026 | 3 |
| 24 | T3205109 Bolt, HHF, Lghtd, M8 x 45, Slv | Bolt, HHF, Lghtd, M8 x 45, Slv | 1 | $5.12 | Available to order | 1 |
