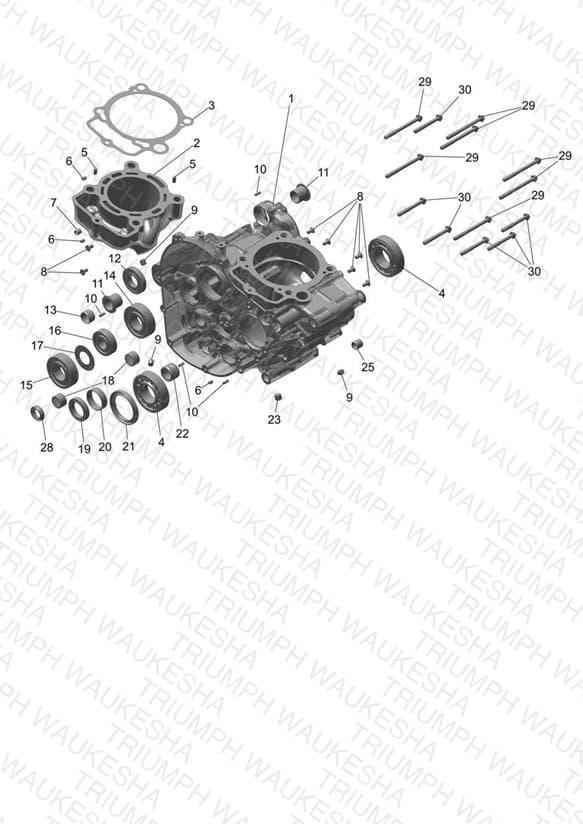

Crankcase
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1160531 Crankcase Assembly, Spares | Crankcase Assembly, Spares | 1 | $2407.52 | Available to order | 1 |
| 2 | T1161634 Cylinder, M/C | Cylinder, M/C | 1 | $567.31 | Available to order | 1 |
| 3 | T1161656 Gasket, Cylinder | Gasket, Cylinder | 1 | $16.03 | Available to order | 1 |
| 4 | T1165018 Bearing, Assy, 30 x 62 x 16, NJ206 | Bearing, Assy, 30 x 62 x 16, NJ206 | 2 | $94.35 | Available to order | 2 |
| 5 | T3000094 Dowel, Dia 5 x 10 | Dowel, Dia 5 x 10 | 2 | $0.95 | Available to order | 2 |
| 6 | T3450197 Restrictor, Oil | Restrictor, Oil | 3 | $6.65 | Available to order | 3 |
| 7 | T3000079 Dowel, Hollow, 6 x 8 x 8 | Dowel, Hollow, 6 x 8 x 8 | 1 | $3.98 | Available to order | 1 |
| 8 | T3331865 Screw, Skt Csk, M5 x 10, Slv, Enc | Screw, Skt Csk, M5 x 10, Slv, Enc | 7 | $5.67 | Available to order | 7 |
| 9 | T1164484 Plug, 8 x 8, Aluminium | Plug, 8 x 8, Aluminium | 3 | $3.56 | Available to order | 3 |
| 10 | T3000093 Dowel, Dia 4.0 x 10 | Dowel, Dia 4.0 x 10 | 4 | $2.19 | Available to order | 4 |
| 11 | T1160549 Spacer, Crankcase | Spacer, Crankcase | 2 | $8.88 | Available to order | 2 |
| 12 | T3800272 Ball Bearing, TM16004C4, 20 x 42 x 8 | Ball Bearing, TM16004C4, 20 x 42 x 8 | 1 | $16.88 | Available to order | 1 |
| 13 | T3000083 Dowel, Hollow, Dia 17 x 19 x 12 | Dowel, Hollow, Dia 17 x 19 x 12 | 1 | $4.48 | Available to order | 1 |
| 14 | T3800274 Cyl Bearing, NJ205, 25 x 52 x 15 | Cyl Bearing, NJ205, 25 x 52 x 15 | 1 | $57.50 | Available to order | 1 |
| 15 | T3800271 Ball Bearing, 6205C4, 25 x 52 x 15 | Ball Bearing, 6205C4, 25 x 52 x 15 | 1 | $14.20 | Obsolete | View Details |
| 16 | T3800273 Ball Bearing, 6203JR2C3, 17 x 40 x 12 | Ball Bearing, 6203JR2C3, 17 x 40 x 12 | 1 | $8.88 | Available to order | 1 |
| 17 | T1160477 Shim, 21 x 41 x 0.2 | Shim, 21 x 41 x 0.2 | 1 | $5.58 | Available to order | 1 |
| 18 | T3800001 Bearing, Needle, 20 x 14 x 12 | Bearing, Needle, 20 x 14 x 12 | 2 | $8.60 | Available to order | 2 |
| 19 | T3800244 Bearing, 6805, 25 x 37 x 7 | Bearing, 6805, 25 x 37 x 7 | 1 | $13.33 | Available to order | 1 |
| 20 | T3750026 Bush, ID30 x OD34, 10 Thk | Bush, ID30 x OD34, 10 Thk | 1 | $13.33 | Available to order | 1 |
| 21 | T1105069 Seal, Rotary SC 40 x 55 x 6 | Seal, Rotary SC 40 x 55 x 6 | 1 | $11.16 | Available to order | 1 |
| 22 | T3800268 Bush Bearing, Balance, 16 x 24 x 16 | Bush Bearing, Balance, 16 x 24 x 16 | 1 | $26.65 | Available to order | 1 |
| 23 | T1164485 Plug, 10 x 8, Aluminium | Plug, 10 x 8, Aluminium | 1 | $3.56 | Available to order | 1 |
| 25 | T3000084 Dowel, Hollow, Dia 11 x 13 x 12 | Dowel, Hollow, Dia 11 x 13 x 12 | 1 | $4.77 | Available to order | 1 |
| 28 | T3600265 Seal, 14 x 24 x 6 | Seal, 14 x 24 x 6 | 1 | $5.56 | Available to order | 1 |
| 29 | T3200668 Bolt, TX, Lghtd, M6 x 70, Slv | Bolt, TX, Lghtd, M6 x 70, Slv | 6 | $3.56 | Available to order | 6 |
| 30 | T3200667 Bolt, TX, Lghtd, M6 x 50, Slv | Bolt, TX, Lghtd, M6 x 50, Slv | 7 | $3.56 | Available to order | 7 |
