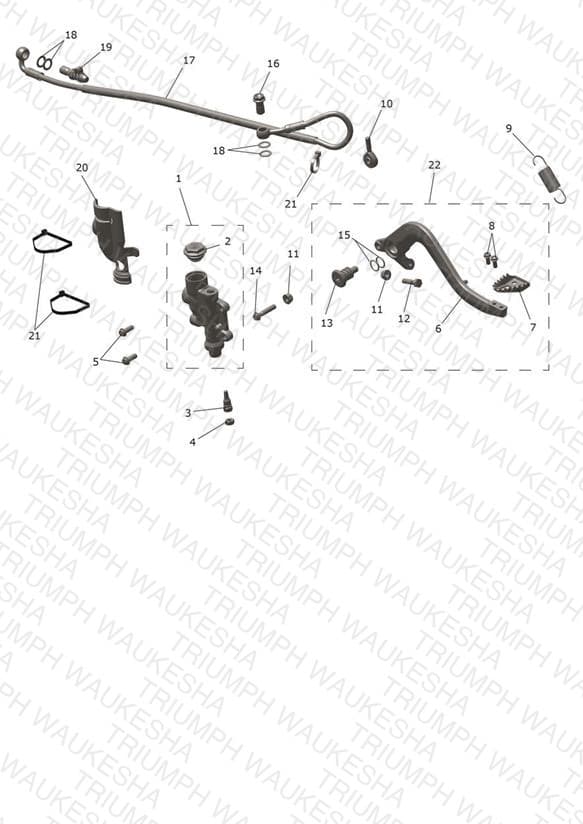

Rear Master Cylinder
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2025027 Rear Master Cylinder | Rear Master Cylinder | 1 | $200.00 | Available to order | 1 |
| 2 | T2022389 Screwcap Kit | Screwcap Kit | 1 | $75.95 | Available to order | 1 |
| 3 | T2028743 Pushrod, Master Cylinder | Pushrod, Master Cylinder | 1 | $35.52 | Available to order | 1 |
| 4 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 1 | $0.94 | Available to order | 1 |
| 5 | T3200662 Bolt, TX, Lghtd, M6 x 16, Slv | Bolt, TX, Lghtd, M6 x 16, Slv | 2 | $2.67 | Available to order | 2 |
| 6 | T2023174 Brake Pedal | Brake Pedal | 1 | $88.80 | Available to order | 1 |
| 7 | T2023250 Toe Piece, Brake Pedal | Toe Piece, Brake Pedal | 1 | $7.59 | Available to order | 1 |
| 8 | T3200557 Bolt, TX, M5 x 12, Enc | Bolt, TX, M5 x 12, Enc | 2 | $2.67 | Available to order | 2 |
| 9 | T2023171 Spring, Tension | Spring, Tension | 1 | $2.67 | Available to order | 1 |
| 10 | T2028740 Brg, Rod End | Brg, Rod End | 1 | $74.43 | Available to order | 1 |
| 11 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 2 | $0.67 | Available to order | 2 |
| 12 | T3202081 Bolt, Hex/Hd, M6 x 25 | Bolt, Hex/Hd, M6 x 25 | 1 | $2.67 | Available to order | 1 |
| 13 | T3338003 Bolt, Pivot, M8 x 1.25, Enc | Bolt, Pivot, M8 x 1.25, Enc | 1 | $6.23 | Available to order | 1 |
| 14 | T3200665 Bolt, TX, Lghtd, M6 x 30, Slv | Bolt, TX, Lghtd, M6 x 30, Slv | 1 | $3.56 | Available to order | 1 |
| 15 | T3600104 O Ring | O Ring | 2 | $1.44 | Available to order | 2 |
| 16 | T3250032 Banjo Bolt, M10 x 19 | Banjo Bolt, M10 x 19 | 1 | $5.58 | Available to order | 1 |
| 17 | T2028507 Rear Brake Hose Assembly | Rear Brake Hose Assembly | 1 | $69.12 | Available to order | 1 |
| 18 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated | 4 | $1.07 | Available to order | 4 |
| 19 | T2020383 Bolt, Banjo, M10 | Bolt, Banjo, M10 | 1 | $10.79 | Available to order | 1 |
| 20 | T2022690 Guard, Master Cylinder, Rear | Guard, Master Cylinder, Rear | 1 | $5.24 | Available to order | 1 |
| 21 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 3 | $0.89 | Available to order | 3 |
| 22 | T2023226 Brake Pedal Spares Kit | Brake Pedal Spares Kit | 1 | $82.12 | Available to order | 1 |
| 23 | T2022390 Boot Kit | Boot Kit Not Illustrated - contained in Rear M/Cyl Assy, Item 1 | 1 | $40.35 | Available to order | 1 |
