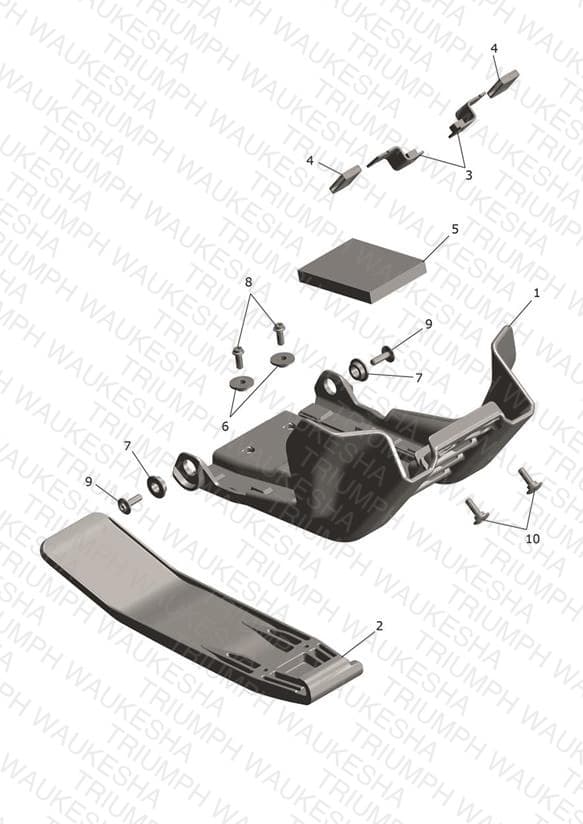

Sumpguard
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2311793 Sumpguard, SE, Mldg | Sumpguard, SE, Mldg | 1 | $107.77 | Available to order | 1 |
| 2 | T2314066 Sumpguard Extension | Sumpguard Extension | 1 | $50.30 | Available to order | 1 |
| 3 | T2314070 Bracket, Fab | Bracket, Fab | 2 | $2.16 | Available to order | 2 |
| 4 | T2314078 Rubber, Sleeve | Rubber, Sleeve | 2 | $0.72 | Available to order | 2 |
| 5 | T2315330 Foam Pad, Sumpguard | Foam Pad, Sumpguard | 1 | $14.36 | Available to order | 1 |
| 6 | T3010310 Flanged Sleeve, 7.4 x 10.2 x 4.7 | Flanged Sleeve, 7.4 x 10.2 x 4.7 | 2 | $9.34 | Backorder — Late August 2026 | 2 |
| 7 | T3010311 Flanged Sleeve, 10.25 x 16 x 4.7 | Flanged Sleeve, 10.25 x 16 x 4.7 | 2 | $2.89 | Available to order | 2 |
| 8 | T3200662 Bolt, TX, Lghtd, M6 x 16, Slv | Bolt, TX, Lghtd, M6 x 16, Slv | 2 | $2.67 | Available to order | 2 |
| 9 | T3330446 Bolt, Lge, M6 x 1 x 20, Slv | Bolt, Lge, M6 x 1 x 20, Slv | 2 | $1.78 | Available to order | 2 |
| 10 | T3330848 Bolt, But/Hd, M6 x 21, Shld, Slv | Bolt, But/Hd, M6 x 21, Shld, Slv | 2 | $5.88 | Available to order | 2 |
