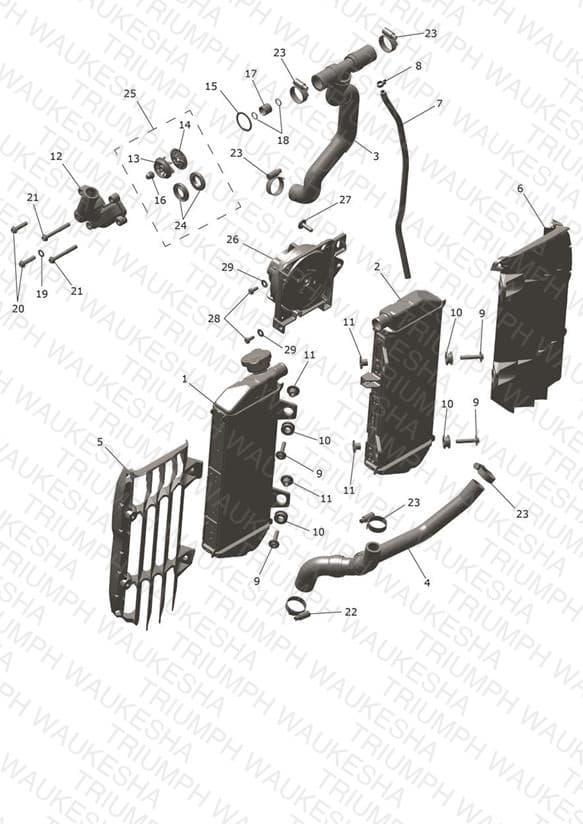

Radiator, Fan & Thermostat
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2105040 Radiator Assy, RH, 28mm Core | Radiator Assy, RH, 28mm Core | 1 | $258.64 | Available to order | 1 |
| 2 | T2105041 Radiator Assy, LH, 28mm Core | Radiator Assy, LH, 28mm Core | 1 | $258.64 | Available to order | 1 |
| 3 | T2101334 Hose, T-Piece, Coolant | Hose, T-Piece, Coolant | 1 | $38.40 | Available to order | 1 |
| 4 | T2101346 Coolant Hose, Radiator Out | Coolant Hose, Radiator Out | 1 | $55.01 | Available to order | 1 |
| 5 | T2101532 Guard, Radiator, RH | Guard, Radiator, RH | 1 | $81.91 | Available to order | 1 |
| 6 | T2101531 Guard, Radiator, LH | Guard, Radiator, LH | 1 | $81.91 | Available to order | 1 |
| 7 | T2109887 Pipe, Overflow, Coolant | Pipe, Overflow, Coolant | 1 | $13.33 | Available to order | 1 |
| 8 | T2109610 Spring Band Clamp, Dia 9mm | Spring Band Clamp, Dia 9mm | 1 | $1.78 | Available to order | 1 |
| 9 | T3330451 Bolt, Lge, TX, M6 x 30, Slv | Bolt, Lge, TX, M6 x 30, Slv | 4 | $1.78 | Available to order | 4 |
| 10 | T3021164 Grommet, 15 x 5 x 10 | Grommet, 15 x 5 x 10 | 4 | $0.97 | Available to order | 4 |
| 11 | T3010750 Flanged Sleeve, 6.2 x 10 x 8.5 | Flanged Sleeve, 6.2 x 10 x 8.5 | 4 | $5.56 | Available to order | 4 |
| 12 | T2101304 Cover, Water Pump | Cover, Water Pump | 1 | $53.29 | Available to order | 1 |
| 13 | T2101326 Impellar, Water Pump | Impellar, Water Pump | 1 | $18.65 | Available to order | 1 |
| 14 | T2101325 Disc, Water Pump | Disc, Water Pump | 1 | $18.65 | Available to order | 1 |
| 15 | T3500092 Circlip, Int Dia 30, DIN 472 | Circlip, Int Dia 30, DIN 472 | 1 | $1.78 | Available to order | 1 |
| 16 | T3350239 Domenut, M6 | Domenut, M6 | 1 | $0.60 | Available to order | 1 |
| 17 | T2101661 Bush, 12 x 15 x 13.25 | Bush, 12 x 15 x 13.25 | 1 | $47.95 | Available to order | 1 |
| 18 | T3600259 O Ring, 9.0 x 1.5 | O Ring, 9.0 x 1.5 | 2 | $0.89 | Available to order | 2 |
| 19 | T3550542 Washer, Cu, OD12.5 x Id6.4 | Washer, Cu, OD12.5 x Id6.4 | 1 | $1.05 | Available to order | 1 |
| 20 | T3200664 Bolt, TX, Lghtd, M6 x 25, Slv | Bolt, TX, Lghtd, M6 x 25, Slv | 2 | $3.56 | Available to order | 2 |
| 21 | T3200667 Bolt, TX, Lghtd, M6 x 50, Slv | Bolt, TX, Lghtd, M6 x 50, Slv | 2 | $3.56 | Available to order | 2 |
| 22 | T2102113 Clip, Hose, 20-32, Bright, Ss | Clip, Hose, 20-32, Bright, Ss | 1 | $7.46 | Available to order | 1 |
| 23 | T2102112 Hose Clip, 16-27, Bright, Ss | Hose Clip, 16-27, Bright, Ss | 5 | $4.54 | Available to order | 5 |
| 24 | T3600277 Seal, Oil, 72NBR902, 15 x 30 x 4.5 | Seal, Oil, 72NBR902, 15 x 30 x 4.5 | 2 | $10.90 | Available to order | 2 |
| 25 | T2101396 Repair Kit, Water Pump | Repair Kit, Water Pump Also Contains Water Pump Gasket T2101307 | 1 | $20.93 | Available to order | 1 |
| 26 | T2105032 Fan Assembly, 98mm | Fan Assembly, 98mm | 1 | $256.84 | Available to order | 1 |
| 27 | T3330446 Bolt, Lge, M6 x 1 x 20, Slv | Bolt, Lge, M6 x 1 x 20, Slv | 1 | $1.78 | Available to order | 1 |
| 28 | T3330746 Bolt, TPT, Btn Hd, TX 5 x 12, Blk | Bolt, TPT, Btn Hd, TX 5 x 12, Blk | 2 | $1.43 | Available to order | 2 |
| 29 | T3555050 Washer, 5.3 x 12.5mm | Washer, 5.3 x 12.5mm | 2 | $0.97 | Available to order | 2 |
