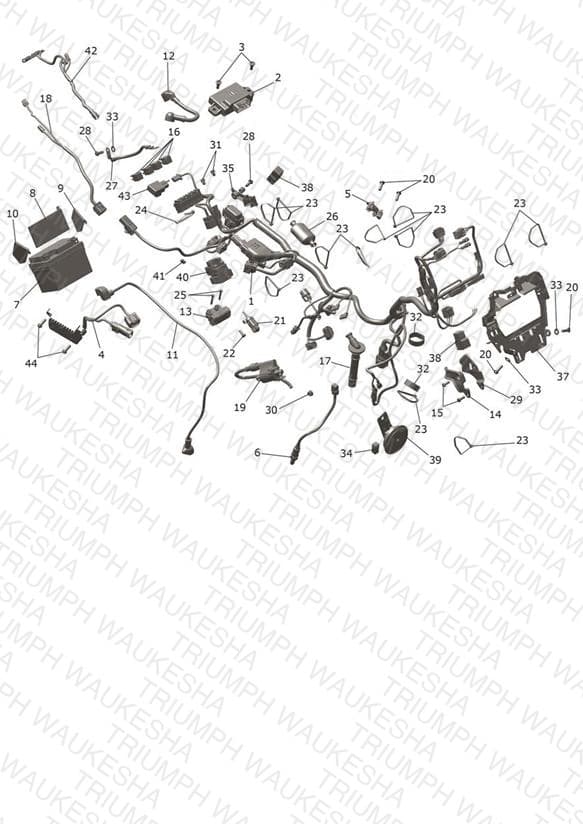

Electrical System
Parts (48)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2503178 Main Harness | Main Harness | 1 | $635.04 | Available to order | 1 |
| 2 | T1290625 ECU, MX, EN, Spares | ECU, MX, EN, Spares | 1 | $465.78 | Available to order | 1 |
| 3 | T3201072 Bolt, TX, Shld, M6 x 18, Slv | Bolt, TX, Shld, M6 x 18, Slv | 2 | $2.84 | Available to order | 2 |
| 4 | T2503597 Regulator Rectifier, 70 x 60 | Regulator Rectifier, 70 x 60 | 1 | $186.79 | Available to order | 1 |
| 5 | T2506888 Bracket, Coil Connector | Bracket, Coil Connector | 1 | $8.42 | Available to order | 1 |
| 6 | T2204258 Oxygen Sensor, PT, M12, 250mm | Oxygen Sensor, PT, M12, 250mm All Except US & CA | 1 | $216.86 | Available to order | 1 |
| 7 | T2504269 Battery, Lithium Ion, 2AH | Battery, Lithium Ion, 2AH All Markets Except EF/ER/GR | 1 | $93.08 | Available to order | 1 |
| 7 | T2506736 Kit, Battery, Lithium, 2AH OES | Kit, Battery, Lithium, 2AH OES EF/ER/GR Markets Only | 1 | $124.53 | Backorder — Early October 2026 | 1 |
| 8 | T2504156 AV Pad | AV Pad | 1 | $4.38 | Available to order | 1 |
| 9 | T2504298 AV Pad LHS | AV Pad LHS | 1 | $4.65 | Available to order | 1 |
| 10 | T2504316 AV Pad RHS | AV Pad RHS | 1 | $5.57 | Available to order | 1 |
| 11 | T2505260 Lead, Starter Motor | Lead, Starter Motor | 1 | $28.21 | Available to order | 1 |
| 12 | T2505138 Lead, Starter Solenoid | Lead, Starter Solenoid | 1 | $13.42 | Out of Stock | Notify Me |
| 13 | T2502455 Fall Detection Switch | Fall Detection Switch | 1 | $83.02 | Available to order | 1 |
| 14 | T2504844 Harness Guide | Harness Guide | 1 | $4.21 | Out of Stock | Notify Me |
| 15 | T3200553 Bolt, TX, M5 x 16, Enc | Bolt, TX, M5 x 16, Enc | 2 | $2.23 | Available to order | 2 |
| 16 | T2507729 Relay, Ultra Micro, ISO 280 | Relay, Ultra Micro, ISO 280 | 6 | $8.02 | Available to order | 6 |
| 17 | T2504107 Cap, Spark Plug | Cap, Spark Plug | 1 | $46.81 | Available to order | 1 |
| 18 | T2503567 Subharness, Rear, EN | Subharness, Rear, EN | 1 | $84.04 | Available to order | 1 |
| 19 | T2504137 Ignition Coil | Ignition Coil | 1 | $35.93 | Out of Stock | Notify Me |
| 20 | T3200663 Bolt, TX, Lghtd, M6 x 20, Slv | Bolt, TX, Lghtd, M6 x 20, Slv | 4 | $2.84 | Available to order | 4 |
| 21 | T1290088 Sensor, Air Temperature | Sensor, Air Temperature | 1 | $63.55 | Available to order | 1 |
| 22 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 1 | $1.61 | Available to order | 1 |
| 23 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 13 | $0.95 | Available to order | 13 |
| 24 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 1 | $1.01 | Available to order | 1 |
| 25 | T2504859 Lead, Purge Valve | Lead, Purge Valve All Except US & CA - Not Illustrated | 1 | $11.93 | Out of Stock | Notify Me |
| 26 | T2504892 Sleeve, Connector, Mldg | Sleeve, Connector, Mldg | 1 | $5.75 | Out of Stock | Notify Me |
| 27 | T2505898 Lead, Battery Earth | Lead, Battery Earth | 1 | $12.20 | Out of Stock | Notify Me |
| 28 | T3200662 Bolt, TX, Lghtd, M6 x 16, Slv | Bolt, TX, Lghtd, M6 x 16, Slv | 2 | $2.84 | Available to order | 2 |
| 29 | T2509113 Guide, Throttle Cable | Guide, Throttle Cable | 1 | $6.54 | Out of Stock | Notify Me |
| 30 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.71 | Available to order | 1 |
| 31 | T3205077 Bolt, HHF, Lghtd, M6 x 8, Slv | Bolt, HHF, Lghtd, M6 x 8, Slv | 2 | $5.20 | Available to order | 2 |
| 32 | T3700252 Rubber Band, 88mm | Rubber Band, 88mm | 2 | $10.21 | Available to order | 2 |
| 33 | T3552002 Washer, M6 x 14 x 1 | Washer, M6 x 14 x 1 | 3 | $1.81 | Available to order | 3 |
| 34 | T2505049 Blanking Plug, O2 Sensor | Blanking Plug, O2 Sensor | 1 | $7.08 | Available to order | 1 |
| 35 | T2505139 Bracket, Relay, Mlgd | Bracket, Relay, Mlgd | 1 | $6.11 | Out of Stock | Notify Me |
| 36 | T2505196 Lead, Coolant Temperature | Lead, Coolant Temperature Not Illustrated | 1 | $14.90 | Available to order | 1 |
| 37 | T2505400 Bracket, Connector, Front | Bracket, Connector, Front | 1 | $8.41 | Out of Stock | Notify Me |
| 38 | T2506066 Cover, Relay, Moulding | Cover, Relay, Moulding | 2 | $8.11 | Available to order | 2 |
| 39 | T2506311 Horn Assy, 440 Hz | Horn Assy, 440 Hz | 1 | $56.47 | Available to order | 1 |
| 40 | T2506677 Starter Relay, Solenoid | Starter Relay, Solenoid | 1 | $48.64 | Available to order | 1 |
| 41 | T2508149 Blanking Plug, Con, 2 Way | Blanking Plug, Con, 2 Way US & CA Only | 1 | $1.98 | Available to order | 1 |
| 42 | T2505291 Subharness, Hanger, Rear | Subharness, Hanger, Rear All Except US & CA | 1 | $43.10 | Available to order | 1 |
| 42 | T2505347 Blanking Plug, Conn, 7 Way | Blanking Plug, Conn, 7 Way US & CA Only | 1 | $14.90 | Available to order | 1 |
| 43 | T2509909 Relay, Indicators | Relay, Indicators | 1 | $8.41 | Out of Stock | Notify Me |
| 44 | T3200675 Bolt, TX, Lghtd, M6 x 20, Enc | Bolt, TX, Lghtd, M6 x 20, Enc | 2 | $2.84 | Available to order | 2 |
| 45 | T3330390 Screw, H/Hd, M4 x 25, Slv, Enc | Screw, H/Hd, M4 x 25, Slv, Enc | 2 | $2.91 | Available to order | 2 |
| 45 | T2503116 Wheel Speed Sensor Assembly | Wheel Speed Sensor Assembly Not Illustrated | 1 | $50.33 | Available to order | 1 |
