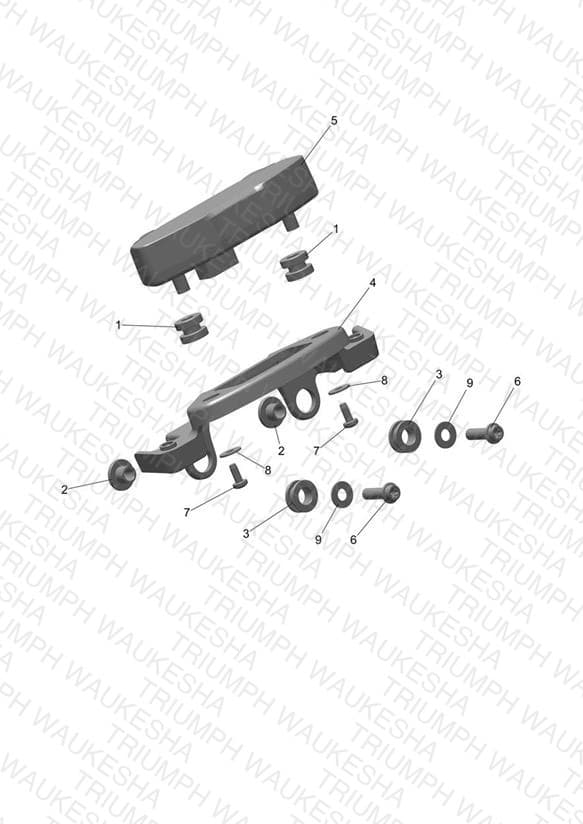

Instruments
Parts (9)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2503286 Grommet, Instruments | Grommet, Instruments | 2 | $0.34 | Available to order | 2 |
| 2 | T2504133 Bushing | Bushing | 2 | $6.82 | Available to order | 2 |
| 3 | T2504155 Gromment, Instruments | Gromment, Instruments | 2 | $0.34 | Available to order | 2 |
| 4 | T2505399 Bracket, Instruments | Bracket, Instruments | 1 | $7.90 | Available to order | 1 |
| 5 | T2508880 Instrument, LCD, 2 | Instrument, LCD, 2 | 1 | $132.53 | Available to order | 1 |
| 6 | T3200663 Bolt, TX, Lghtd, M6 x 20, Slv | Bolt, TX, Lghtd, M6 x 20, Slv | 2 | $2.67 | Available to order | 2 |
| 7 | T3331439 Screw, S/Tap, Pan/Hd, M4 x 10, Slv | Screw, S/Tap, Pan/Hd, M4 x 10, Slv | 2 | $5.98 | Available to order | 2 |
| 8 | T3551066 Washer, 4.3 x 12.0 x 1.0 | Washer, 4.3 x 12.0 x 1.0 | 2 | $1.62 | Available to order | 2 |
| 9 | T3552002 Washer, M6 x 14 x 1 | Washer, M6 x 14 x 1 | 2 | $1.69 | Available to order | 2 |
