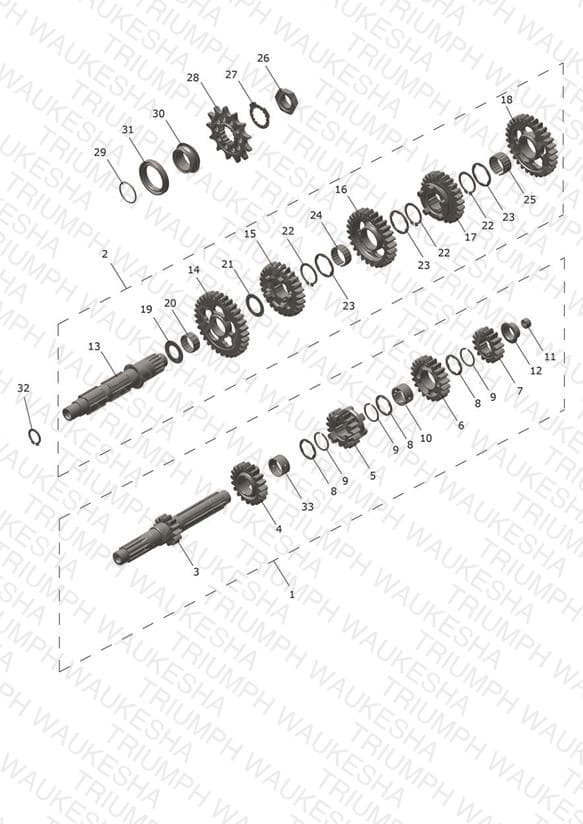

Transmission
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1181223 Input Shaft Assembly, 5 Speed | Input Shaft Assembly, 5 Speed | 1 | $271.32 | Available to order | 1 |
| 2 | T1181224 Output Shaft Assembly, 5 Speed | Output Shaft Assembly, 5 Speed | 1 | $271.32 | Available to order | 1 |
| 3 | T1180442 Input Shaft | Input Shaft | 1 | $204.91 | Available to order | 1 |
| 4 | T1180461 Gear, 4th, Input | Gear, 4th, Input | 1 | $136.60 | Available to order | 1 |
| 5 | T1180458 Gear, 3rd, Input | Gear, 3rd, Input | 1 | $136.60 | Available to order | 1 |
| 6 | T1180459 Gear, 5th, Input | Gear, 5th, Input | 1 | $116.11 | Available to order | 1 |
| 7 | T1180457 Gear, 2nd, Input | Gear, 2nd, Input | 1 | $119.54 | Available to order | 1 |
| 8 | T3350378 Washer, 20.3 x 26.9 x 1.5 | Washer, 20.3 x 26.9 x 1.5 | 3 | $6.48 | Available to order | 3 |
| 9 | T3500117 Circlip, Snap, 20.7 x 24.2 x 1.2 | Circlip, Snap, 20.7 x 24.2 x 1.2 | 3 | $6.23 | Available to order | 3 |
| 10 | T1180463 Bush, Splined, 18.9 x 24 x 12.9 | Bush, Splined, 18.9 x 24 x 12.9 | 1 | $37.55 | Available to order | 1 |
| 11 | T1180464 Bush, Input Shaft, 6.25 x 12 x 6 | Bush, Input Shaft, 6.25 x 12 x 6 | 1 | $61.48 | Available to order | 1 |
| 12 | T1180462 Top Hat, Input Shaft | Top Hat, Input Shaft | 1 | $35.52 | Available to order | 1 |
| 13 | T1180456 Output Shaft | Output Shaft | 1 | $260.21 | Available to order | 1 |
| 14 | T1180451 Gear, 1st, Output | Gear, 1st, Output | 1 | $195.80 | Available to order | 1 |
| 15 | T1180454 Gear, 4th, Output | Gear, 4th, Output | 1 | $186.64 | Available to order | 1 |
| 16 | T1180453 Gear, 3rd, Output | Gear, 3rd, Output | 1 | $186.64 | Available to order | 1 |
| 17 | T1180455 Gear, 5th, Output | Gear, 5th, Output | 1 | $186.64 | Available to order | 1 |
| 18 | T1180452 Gear, 2nd, Output | Gear, 2nd, Output | 1 | $186.64 | Available to order | 1 |
| 19 | T3550378 Washer, 17.2 x 30 x 1 | Washer, 17.2 x 30 x 1 | 1 | $5.99 | Available to order | 1 |
| 20 | T3800284 Bearing, Needle Cage, 20 x 24 x 10 | Bearing, Needle Cage, 20 x 24 x 10 | 1 | $33.84 | Available to order | 1 |
| 21 | T3550376 Washer, 20.2 x 30 x 1 | Washer, 20.2 x 30 x 1 | 1 | $5.99 | Available to order | 1 |
| 22 | T3500116 Circlip, Ext 23.2 x 28 x 1.2 | Circlip, Ext 23.2 x 28 x 1.2 | 3 | $4.45 | Available to order | 3 |
| 23 | T3550377 Washer, Splined, 24.2 x 31 x 1.5 | Washer, Splined, 24.2 x 31 x 1.5 | 3 | $18.88 | Available to order | 3 |
| 24 | T3800283 Bearing, Needle Cage, 22 x 26 x 10 | Bearing, Needle Cage, 22 x 26 x 10 | 1 | $40.52 | Available to order | 1 |
| 25 | T3800282 Bearing, Needle Cage, 22 x 26 x 13 | Bearing, Needle Cage, 22 x 26 x 13 | 1 | $50.01 | Available to order | 1 |
| 26 | T3350172 Nut, M18 x 1.25 x 10 | Nut, M18 x 1.25 x 10 | 1 | $6.65 | Available to order | 1 |
| 27 | T3550388 Washer, Tabbed, 22.5 x 38 x 1 | Washer, Tabbed, 22.5 x 38 x 1 | 1 | $6.23 | Available to order | 1 |
| 28 | T1180438 Sprocket, Front, 13T | Sprocket, Front, 13T | 1 | $25.87 | Available to order | 1 |
| 29 | T3600288 O Ring, 25 x 1.78 | O Ring, 25 x 1.78 | 1 | $0.89 | Available to order | 1 |
| 30 | T1180475 Spacer, Sprocket, Output Shaft | Spacer, Sprocket, Output Shaft | 1 | $14.46 | Available to order | 1 |
| 31 | T3600289 Seal, Metal Cased, 32 x 45 x 7 | Seal, Metal Cased, 32 x 45 x 7 | 1 | $17.77 | Available to order | 1 |
| 32 | T3500098 Circlip, DIN471, 15.7 x 19.9 x 1.5 | Circlip, DIN471, 15.7 x 19.9 x 1.5 | 1 | $1.78 | Available to order | 1 |
| 33 | T1180526 Bush, 4th Input, Plain | Bush, 4th Input, Plain | 1 | $39.75 | Available to order | 1 |
| 34 | T1180521 Input Shaft Assembly | Input Shaft Assembly Kit Contains Item 3 & Item 11 | 1 | $295.99 | Available to order | 1 |
