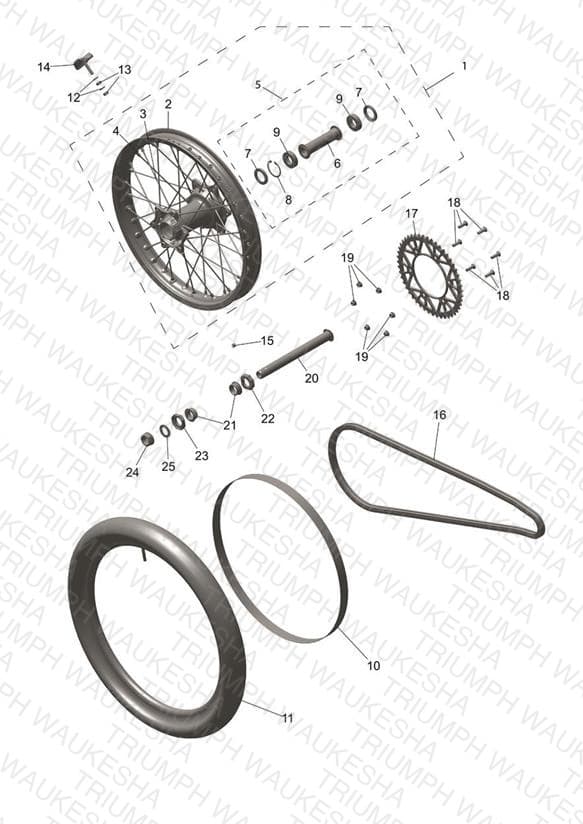

Rear Wheel
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2015094 Rear Wheel Assembly, 1.85 x 19 | Rear Wheel Assembly, 1.85 x 19 | 1 | $801.41 | Available to order | 1 |
| 2 | T2011143 Rim, 1.85 x 19 | Rim, 1.85 x 19 | 1 | $626.76 | Available to order | 1 |
| 3 | T2015038 Spoke, Wire, 200.5mm | Spoke, Wire, 200.5mm | 36 | $5.30 | Available to order | 36 |
| 4 | T2005037 Nipple, Aluminium, Spoke | Nipple, Aluminium, Spoke | 36 | $3.59 | Available to order | 36 |
| 5 | T2015093 Hub, Sub Assy | Hub, Sub Assy | 1 | $352.95 | Available to order | 1 |
| 6 | T2015054 Spacer, Wheel, Internal | Spacer, Wheel, Internal | 1 | $39.06 | Available to order | 1 |
| 7 | T3600599 Oil Seal, 32 x 47 x 6 | Oil Seal, 32 x 47 x 6 | 2 | $4.83 | Available to order | 2 |
| 8 | T3500402 Circlip, Int Dia 47 | Circlip, Int Dia 47 | 1 | $0.89 | Available to order | 1 |
| 9 | T3800257 Bearing, Ball, 25 x 47 x 12 | Bearing, Ball, 25 x 47 x 12 | 2 | $16.83 | Available to order | 2 |
| 10 | T2011318 Rim Band, 18-19 Inch | Rim Band, 18-19 Inch | 1 | $10.71 | Available to order | 1 |
| 11 | T2000964 Inner Tube, 100/90-19 | Inner Tube, 100/90-19 | 1 | $60.96 | Available to order | 1 |
| 12 | T3550405 Washer, M8 x 17 x 1.6 | Washer, M8 x 17 x 1.6 | 1 | $0.89 | Available to order | 1 |
| 13 | T3350303 Nut, M8, Silver | Nut, M8, Silver | 1 | $0.81 | Backorder — Early August 2026 | 1 |
| 14 | T2010882 Rim Lock, 1.85 Inch | Rim Lock, 1.85 Inch | 1 | $24.86 | Available to order | 1 |
| 15 | T2011157 Bung, Rim | Bung, Rim | 1 | $0.89 | Available to order | 1 |
| 16 | T2015057 Chain, Final Drive, 520, 114L | Chain, Final Drive, 520, 114L | 1 | $102.51 | Available to order | 1 |
| 17 | T2015061 Rear Sprocket, 48T | Rear Sprocket, 48T | 1 | $68.97 | Available to order | 1 |
| 18 | T3200193 Bolt, CSK, Torx, M8 x 27, Enc | Bolt, CSK, Torx, M8 x 27, Enc | 6 | $2.27 | Available to order | 6 |
| 19 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 6 | $2.45 | Available to order | 6 |
| 20 | T2011135 Spindle, Rear Wheel | Spindle, Rear Wheel | 1 | $79.92 | Available to order | 1 |
| 21 | T2011134 Spacer, Wheel, Rear | Spacer, Wheel, Rear | 2 | $26.65 | Available to order | 2 |
| 22 | T2011132 Block, Chain Adjuster, LH | Block, Chain Adjuster, LH | 1 | $22.21 | Available to order | 1 |
| 23 | T2011131 Block, Chain Adjuster, RH | Block, Chain Adjuster, RH | 1 | $22.21 | Available to order | 1 |
| 24 | T3350713 Locknut, M24 x 1.5, Thin | Locknut, M24 x 1.5, Thin | 1 | $21.45 | Out of Stock | Notify Me |
| 25 | T3554203 Washer, 25 x 37 x 4 | Washer, 25 x 37 x 4 | 1 | $3.59 | Available to order | 1 |
| 26 | T2015059 Clip Link, Drive Chain | Clip Link, Drive Chain Not Illustrated | 1 | $7.71 | Available to order | 1 |
| 27 | T2018736 Spoke Kit, Rear | Spoke Kit, Rear Contains 1 spoke and 1 nipple - Not Illustrated | 1 | $9.16 | Available to order | 1 |
| 28 | T2018737 Bearing Kit, Rear Wheel | Bearing Kit, Rear Wheel Contains all items 6,7,8,9 & 21 - Not Illustrated | 1 | $57.02 | Available to order | 1 |
| 29 | T2018738 Chain and Sprocket Kit | Chain and Sprocket Kit Contains item 16, item 17 & front sprocket T1180438 - Not Illustrated | 1 | $225.47 | Available to order | 1 |
