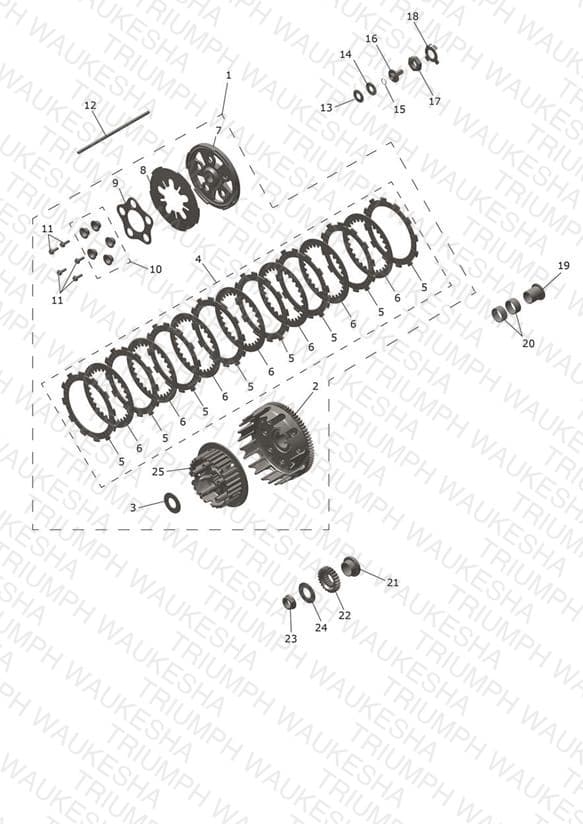

Clutch
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1170387 Clutch Assembly | Clutch Assembly | 1 | $636.03 | Available to order | 1 |
| 2 | T1170264 Clutch Outer Assembly | Clutch Outer Assembly | 1 | $450.75 | Available to order | 1 |
| 3 | T1170299 Thrust Washer, Clutch | Thrust Washer, Clutch | 1 | $8.07 | Available to order | 1 |
| 4 | T1170342 Disc Set, Clutch | Disc Set, Clutch | 1 | $243.46 | Available to order | 1 |
| 7 | T1170308 Clutch Pressure Plate | Clutch Pressure Plate | 1 | $95.87 | Available to order | 1 |
| 8 | T1170269 Spring, Belleville, clutch | Spring, Belleville, clutch | 1 | $8.72 | Available to order | 1 |
| 9 | T1170272 Fulcrum Plate, Clutch | Fulcrum Plate, Clutch | 1 | $9.69 | Available to order | 1 |
| 10 | T1170339 Kit, Clutch Bolt Cups | Kit, Clutch Bolt Cups | 5 | $9.95 | Out of Stock | Notify Me |
| 11 | T1170301 Bolt, M5 x 0.8 | Bolt, M5 x 0.8 | 5 | $8.31 | Available to order | 5 |
| 12 | T1170397 Push Rod, Clutch | Push Rod, Clutch | 1 | $23.16 | Available to order | 1 |
| 13 | T3550374 Washer, 12 x 26 x 1 | Washer, 12 x 26 x 1 | 1 | $2.84 | Available to order | 1 |
| 14 | T3800254 Bearing, Needle, AXK 12 x 26 x 2 | Bearing, Needle, AXK 12 x 26 x 2 | 1 | $18.42 | Available to order | 1 |
| 15 | T3500115 Snap Ring, Ext, 10.8ID x 1 | Snap Ring, Ext, 10.8ID x 1 | 1 | $4.74 | Available to order | 1 |
| 16 | T1170259 Body, Clutch Lifter | Body, Clutch Lifter | 1 | $50.63 | Available to order | 1 |
| 17 | T3350171 Nut, M18 x 1.5 x 8 | Nut, M18 x 1.5 x 8 | 1 | $9.45 | Available to order | 1 |
| 18 | T3550373 Washer, Tabbed, 18.5 x 31.5 x 1.5 | Washer, Tabbed, 18.5 x 31.5 x 1.5 | 1 | $6.64 | Available to order | 1 |
| 19 | T1170185 Bearing Inner Race, Clutch | Bearing Inner Race, Clutch | 1 | $19.63 | Available to order | 1 |
| 20 | T3800241 Needle, Bearing, 25 x 29 x 13 | Needle, Bearing, 25 x 29 x 13 | 2 | $6.84 | Available to order | 2 |
| 21 | T1170186 Spacer, Primary Gear | Spacer, Primary Gear | 1 | $14.78 | Available to order | 1 |
| 22 | T1170184 Gear, Primary, Crank | Gear, Primary, Crank | 1 | $128.26 | Available to order | 1 |
| 23 | T3350229 Nut, M10, LH x 1.5, Enc | Nut, M10, LH x 1.5, Enc | 1 | $15.52 | Available to order | 1 |
| 24 | T3350240 Washer, Crank, Primary Gear | Washer, Crank, Primary Gear | 1 | $5.30 | Available to order | 1 |
| 25 | T1170341 Clutch Centre | Clutch Centre | 1 | $192.40 | Available to order | 1 |
