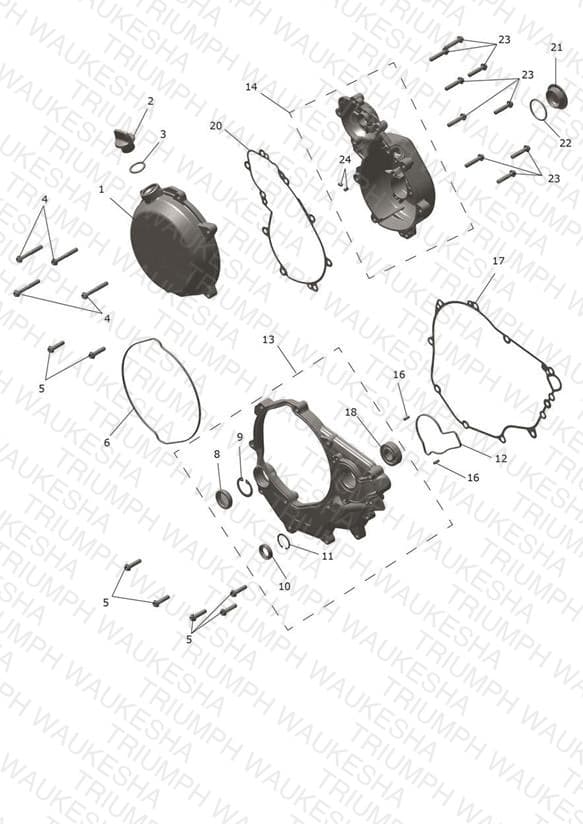

Engine Covers
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1261289 Cover, Clutch Basket | Cover, Clutch Basket | 1 | $145.29 | Available to order | 1 |
| 2 | T1260249 Oil Filler Cap | Oil Filler Cap | 1 | $22.18 | Available to order | 1 |
| 3 | T3600163 O Ring, ID 19 x 3 | O Ring, ID 19 x 3 | 1 | $13.08 | Available to order | 1 |
| 4 | T3200673 Bolt, TX, Lghtd, M6 x 45, Slv | Bolt, TX, Lghtd, M6 x 45, Slv | 4 | $4.04 | Available to order | 4 |
| 5 | T3200664 Bolt, TX, Lghtd, M6 x 25, Slv | Bolt, TX, Lghtd, M6 x 25, Slv | 7 | $3.78 | Available to order | 7 |
| 6 | T1261259 Seal, Formed, Clutch Cover | Seal, Formed, Clutch Cover | 1 | $5.58 | Available to order | 1 |
| 8 | T1264500 Sight Glass | Sight Glass | 1 | $14.90 | Out of Stock | Notify Me |
| 9 | T3500078 Circlip, Int Dia 81.4 x 1.2 | Circlip, Int Dia 81.4 x 1.2 | 1 | $1.50 | Available to order | 1 |
| 10 | T3600317 Seal, Rotary, 14 x 24 x 5 | Seal, Rotary, 14 x 24 x 5 | 1 | $4.74 | Available to order | 1 |
| 11 | T3500126 Circlip, DIN472.24 x 1.2 | Circlip, DIN472.24 x 1.2 | 1 | $1.90 | Available to order | 1 |
| 12 | T2101344 Gasket, Water Pump | Gasket, Water Pump | 1 | $11.41 | Available to order | 1 |
| 13 | T1261265 Clutch Cover, Inner, Assy | Clutch Cover, Inner, Assy Also Contains T3500092 & 2 x T3600277 | 1 | $205.22 | Out of Stock | Notify Me |
| 14 | T1261263 Alternator Cover Assembly | Alternator Cover Assembly | 1 | $162.47 | Backorder — Mid October 2026 | 1 |
| 16 | T3000093 Dowel, Dia 4.0 x 10 | Dowel, Dia 4.0 x 10 | 2 | $2.33 | Available to order | 2 |
| 17 | T1261229 Gasket, Case, RH | Gasket, Case, RH | 1 | $13.68 | Available to order | 1 |
| 18 | T3800288 Bearing, Ball, 6202, 15 x 35 x 11 | Bearing, Ball, 6202, 15 x 35 x 11 | 1 | $6.41 | Available to order | 1 |
| 20 | T1261254 Gasket, Alternator Cover | Gasket, Alternator Cover | 1 | $8.06 | Available to order | 1 |
| 21 | T1261019 Plug, Alternator Cover | Plug, Alternator Cover | 1 | $18.42 | Available to order | 1 |
| 22 | T3600287 O Ring, 30 x 2.5 | O Ring, 30 x 2.5 | 1 | $3.30 | Available to order | 1 |
| 23 | T3200665 Bolt, TX, Lghtd, M6 x 30, Slv | Bolt, TX, Lghtd, M6 x 30, Slv | 9 | $3.78 | Available to order | 9 |
| 24 | T3450197 Restrictor, Oil | Restrictor, Oil | 1 | $7.08 | Available to order | 1 |
