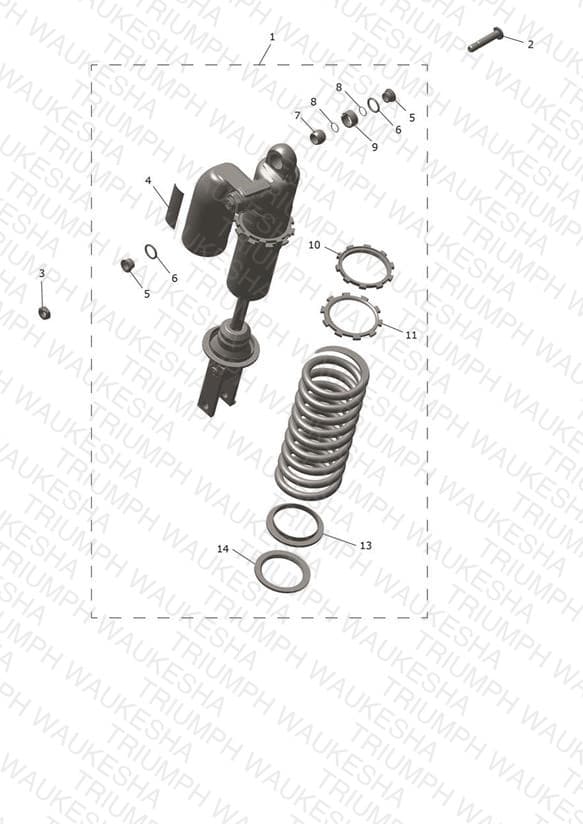

Rear Suspension Unit
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2051711 Rear Suspension Unit | Rear Suspension Unit | 1 | $904.42 | Available to order | 1 |
| 2 | T2050906 Bolt, M10 x 1.25 x 52 | Bolt, M10 x 1.25 x 52 | 1 | $4.45 | Available to order | 1 |
| 3 | T3350134 Locknut, M10 x 1.25 | Locknut, M10 x 1.25 | 1 | $2.54 | Available to order | 1 |
| 4 | T2058188 Decal, Rear Suspension Unit | Decal, Rear Suspension Unit | 1 | $2.19 | Available to order | 1 |
| 5 | T2055317 Spacer, Upper Mount | Spacer, Upper Mount | 2 | $10.90 | Available to order | 2 |
| 6 | T2055315 Dust Seal | Dust Seal | 2 | $1.41 | Available to order | 2 |
| 7 | T2055313 Bearing, Spherical | Bearing, Spherical | 1 | $74.45 | Available to order | 1 |
| 8 | T2055316 O Ring | O Ring | 2 | $1.41 | Available to order | 2 |
| 9 | T2055314 Circlip | Circlip | 1 | $2.19 | Available to order | 1 |
| 10 | T2053144 Locking Ring | Locking Ring | 1 | $18.87 | Available to order | 1 |
| 11 | T2053143 Adjuster Ring | Adjuster Ring | 1 | $17.09 | Available to order | 1 |
| 13 | T2055319 Spring, Guide | Spring, Guide | 1 | $7.73 | Available to order | 1 |
| 14 | T2055318 Spring, Seat | Spring, Seat | 1 | $30.38 | Available to order | 1 |
| 15 | T2051866 Spring Kit, RSU, K52 | Spring Kit, RSU, K52 | 1 | $186.47 | Available to order | 1 |
| 16 | T2051867 Spring Kit, RSU, K54 | Spring Kit, RSU, K54 | 1 | $271.58 | Available to order | 1 |
| 17 | T2051868 Spring Kit, RSU, K56 | Spring Kit, RSU, K56 | 1 | $271.58 | Available to order | 1 |
| 18 | T2051869 Spring Kit, RSU, K58 | Spring Kit, RSU, K58 | 1 | $271.58 | Available to order | 1 |
| 19 | T2051870 Spring Kit, RSU, K60 | Spring Kit, RSU, K60 | 1 | $271.58 | Available to order | 1 |
| 21 | T2053142 Label, Warning | Label, Warning Not Illustrated | 1 | $2.67 | Available to order | 1 |
