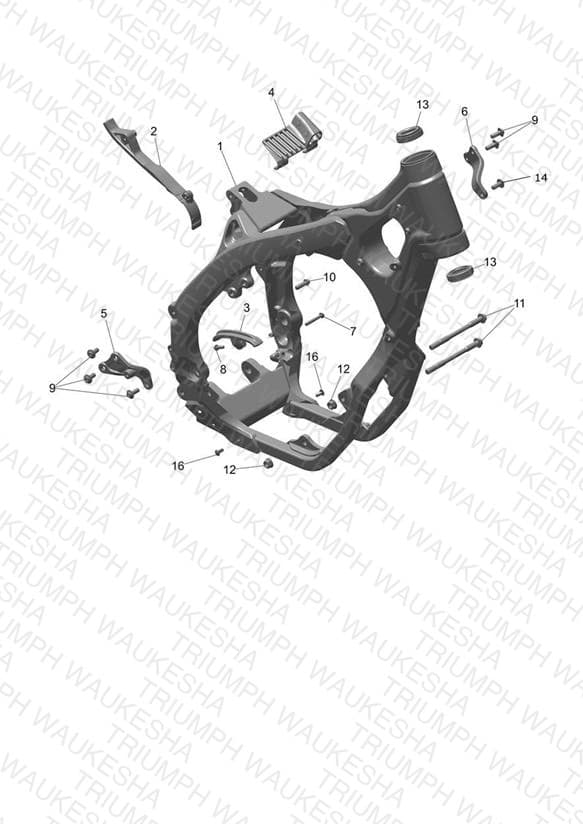

Main Frame Assembly
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2078478 Main Frame Assy, XC, Spares | Main Frame Assy, XC, Spares | 1 | $1929.10 | Out of Stock | Notify Me |
| 1 | T2074237 Frame, XC, Spares, Vinless | Frame, XC, Spares, Vinless | 1 | $13389.98 | Available to order | 1 |
| 2 | T2072338 Upper Chain Guard | Upper Chain Guard | 1 | $42.81 | Available to order | 1 |
| 3 | T2073539 Lower Chain Slider | Lower Chain Slider | 1 | $26.65 | Available to order | 1 |
| 4 | T2074113 Rubber, Fuel Tank, Frame | Rubber, Fuel Tank, Frame | 1 | $8.01 | Available to order | 1 |
| 5 | T2074213 Bracket, Head Steady, Type 1, RH | Bracket, Head Steady, Type 1, RH | 1 | $66.61 | Available to order | 1 |
| 6 | T2074216 Bracket, Head Steady, Type 1, LH | Bracket, Head Steady, Type 1, LH | 1 | $66.61 | Available to order | 1 |
| 7 | T3200666 Bolt, TX, Lgtnd, M6 x 40, Slv | Bolt, TX, Lgtnd, M6 x 40, Slv | 1 | $2.67 | Available to order | 1 |
| 8 | T3200675 Bolt, TX, Lghtd, M6 x 20, Enc | Bolt, TX, Lghtd, M6 x 20, Enc | 1 | $2.67 | Available to order | 1 |
| 9 | T3200802 Bolt, TX, M8 x 1.25 x 25, Enc | Bolt, TX, M8 x 1.25 x 25, Enc | 5 | $3.56 | Available to order | 5 |
| 10 | T3200882 Bolt, TX, Lghtd, M8 x 25, Enc | Bolt, TX, Lghtd, M8 x 25, Enc | 1 | $2.67 | Available to order | 1 |
| 11 | T3201121 Bolt, TX, M10 x 1.25 x 130, Slv | Bolt, TX, M10 x 1.25 x 130, Slv | 2 | $16.43 | Available to order | 2 |
| 12 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 2 | $4.16 | Available to order | 2 |
| 13 | T3800610 Bearing, Taper, 29 x 50, 292 x 14, 224 | Bearing, Taper, 29 x 50, 292 x 14, 224 | 2 | $26.65 | Available to order | 2 |
| 14 | T3205996 Bolt, TRS/HD, TRX, M8 x 20, Enc | Bolt, TRS/HD, TRX, M8 x 20, Enc | 1 | $12.21 | Available to order | 1 |
| 16 | T3451270 Fir Tree, Black, 5 x 12 | Fir Tree, Black, 5 x 12 | 2 | $5.30 | Available to order | 2 |
| 17 | T2075645 Lower Chain Slider Kit, Spares | Lower Chain Slider Kit, Spares Comprises Items 3 & 8 | 1 | $11.01 | Available to order | 1 |
