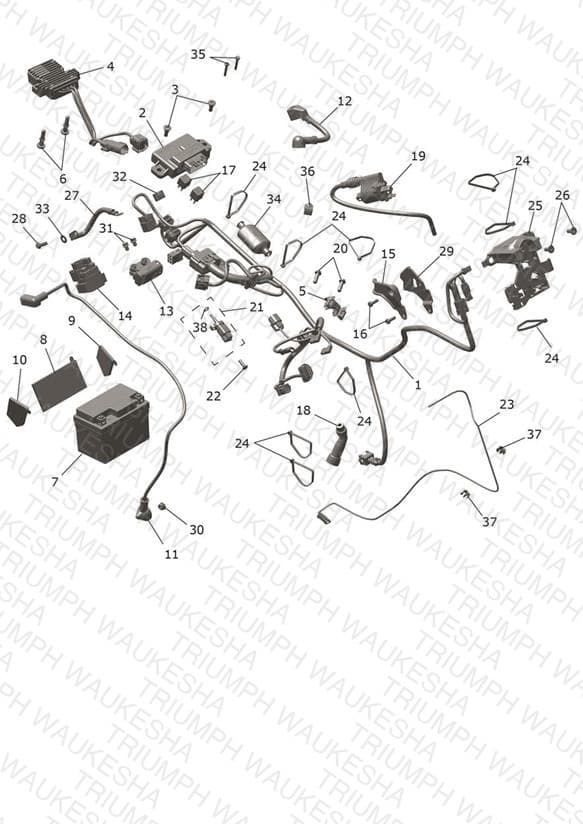

Electrical System
Parts (39)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2505522 Main Harness | Main Harness | 1 | $386.44 | Available to order | 1 |
| 2 | T1290625 ECU, MX, EN, Spares | ECU, MX, EN, Spares | 1 | $452.21 | Available to order | 1 |
| 3 | T3201072 Bolt, TX, Shld, M6 x 18, Slv | Bolt, TX, Shld, M6 x 18, Slv | 2 | $2.67 | Available to order | 2 |
| 4 | T2504928 Regulator Rectifier, 80 x 50 | Regulator Rectifier, 80 x 50 | 1 | $251.44 | Available to order | 1 |
| 5 | T2506888 Bracket, Coil Connector | Bracket, Coil Connector | 1 | $7.91 | Available to order | 1 |
| 6 | T2506664 Mount, Rubber, Prong | Mount, Rubber, Prong | 2 | $1.78 | Available to order | 2 |
| 7 | T2504269 Battery, Lithium Ion, 2AH | Battery, Lithium Ion, 2AH All Markets Except EF/ER/GR | 1 | $94.83 | Available to order | 1 |
| 7 | T2506736 Kit, Battery, Lithium, 2AH OES | Kit, Battery, Lithium, 2AH OES EF/ER/GR Markets Only | 1 | $129.32 | Backorder — Early August 2026 | 1 |
| 8 | T2504156 AV Pad | AV Pad | 1 | $4.12 | Available to order | 1 |
| 9 | T2504298 AV Pad LHS | AV Pad LHS | 1 | $4.36 | Available to order | 1 |
| 10 | T2504316 AV Pad RHS | AV Pad RHS | 1 | $5.23 | Available to order | 1 |
| 11 | T2505260 Lead, Starter Motor | Lead, Starter Motor | 1 | $28.21 | Available to order | 1 |
| 12 | T2504138 Lead, Starter Solenoid | Lead, Starter Solenoid | 1 | $17.09 | Available to order | 1 |
| 13 | T2502455 Fall Detection Switch | Fall Detection Switch | 1 | $84.58 | Available to order | 1 |
| 14 | T2509944 Starter Solenoid | Starter Solenoid | 1 | $62.16 | Available to order | 1 |
| 15 | T2506844 Harness Guide | Harness Guide | 1 | $4.88 | Available to order | 1 |
| 16 | T3200553 Bolt, TX, M5 x 16, Enc | Bolt, TX, M5 x 16, Enc | 2 | $2.09 | Available to order | 2 |
| 17 | T2507729 Relay, Ultra Micro, ISO 280 | Relay, Ultra Micro, ISO 280 | 2 | $7.53 | Available to order | 2 |
| 18 | T2504268 Cap, Spark Plug | Cap, Spark Plug | 1 | $18.90 | Available to order | 1 |
| 19 | T2507155 Ignition Coil, Long | Ignition Coil, Long | 1 | $35.52 | Available to order | 1 |
| 20 | T3200663 Bolt, TX, Lghtd, M6 x 20, Slv | Bolt, TX, Lghtd, M6 x 20, Slv | 2 | $2.67 | Available to order | 2 |
| 21 | T1290581 Air Temperature Sensor & O Ring Assy | Air Temperature Sensor & O Ring Assy | 1 | $64.66 | Available to order | 1 |
| 22 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 1 | $1.51 | Available to order | 1 |
| 23 | T2508059 Wire, Hour Meter | Wire, Hour Meter | 1 | $3.20 | Available to order | 1 |
| 24 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 10 | $0.89 | Available to order | 10 |
| 25 | T2509098 Connector Bracket, Harness | Connector Bracket, Harness | 1 | $13.95 | Available to order | 1 |
| 26 | T3201075 Bolt, TX, Shld, M6 x 15, Slv | Bolt, TX, Shld, M6 x 15, Slv | 2 | $2.67 | Available to order | 2 |
| 27 | T2505898 Lead, Battery Earth | Lead, Battery Earth | 1 | $11.77 | Available to order | 1 |
| 28 | T3200662 Bolt, TX, Lghtd, M6 x 16, Slv | Bolt, TX, Lghtd, M6 x 16, Slv | 1 | $2.67 | Available to order | 1 |
| 29 | T2509113 Guide, Throttle Cable | Guide, Throttle Cable | 1 | $6.14 | Available to order | 1 |
| 30 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 31 | T3330390 Screw, H/Hd, M4 x 25, Slv, Enc | Screw, H/Hd, M4 x 25, Slv, Enc | 2 | $2.74 | Available to order | 2 |
| 32 | T3700252 Rubber Band, 88mm | Rubber Band, 88mm | 1 | $9.59 | Available to order | 1 |
| 33 | T3552002 Washer, M6 x 14 x 1 | Washer, M6 x 14 x 1 | 2 | $1.69 | Available to order | 2 |
| 34 | T2504892 Sleeve, Connector, Mldg | Sleeve, Connector, Mldg | 1 | $5.40 | Available to order | 1 |
| 35 | T3205077 Bolt, HHF, Lghtd, M6 x 8, Slv | Bolt, HHF, Lghtd, M6 x 8, Slv | 2 | $4.88 | Available to order | 2 |
| 36 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 1 | $3.90 | Available to order | 1 |
| 37 | T3701105 Clip, Twin, 6.5 - 2.5 | Clip, Twin, 6.5 - 2.5 | 2 | $3.10 | Available to order | 2 |
| 38 | T3600109 O Ring, ID 5.6 x 2.3 | O Ring, ID 5.6 x 2.3 | 1 | $5.30 | Available to order | 1 |
