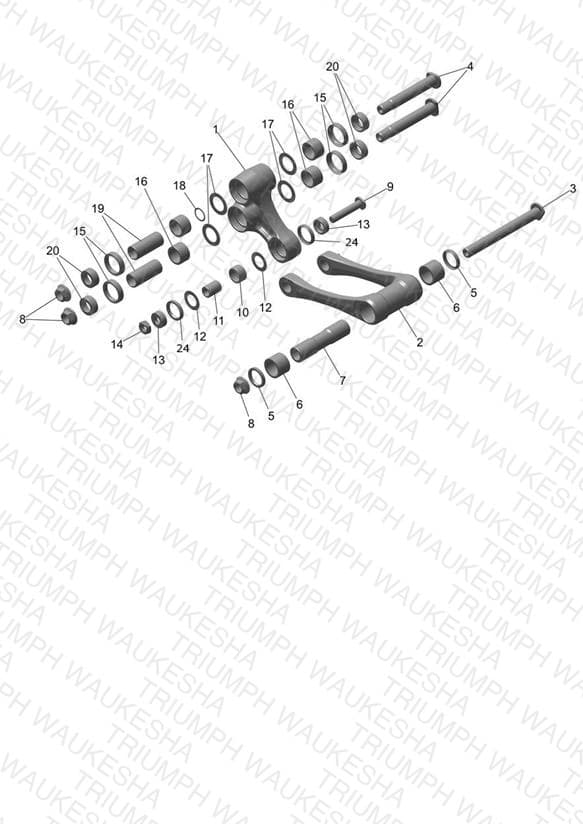

Linkage
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2057511 Rocker, Linkage | Rocker, Linkage | 1 | $116.06 | Available to order | 1 |
| 2 | T2056900 Draglink Spares | Draglink Spares Contains Draglink & Items 5, 6 & 7 | 1 | $97.67 | Available to order | 1 |
| 3 | T2058765 Bolt, M14 x 1.5 x 131 | Bolt, M14 x 1.5 x 131 | 1 | $22.21 | Available to order | 1 |
| 4 | T2050858 Bolt, M14 x 1.5 x 97 | Bolt, M14 x 1.5 x 97 | 2 | $16.43 | Available to order | 2 |
| 5 | T3600590 Seal, 22 x 28 x 4 | Seal, 22 x 28 x 4 | 2 | $1.94 | Available to order | 2 |
| 6 | T3800908 Bearing, Drawn Cup, Hk 2220 | Bearing, Drawn Cup, Hk 2220 | 2 | $44.40 | Available to order | 2 |
| 7 | T2059227 Sleeve, 14 x 22 x 90 | Sleeve, 14 x 22 x 90 | 1 | $26.65 | Available to order | 1 |
| 8 | T2050738 Flanged Nut, M14 | Flanged Nut, M14 | 3 | $9.41 | Available to order | 3 |
| 9 | T2050903 Bolt, M10 x 1.25 x 52 | Bolt, M10 x 1.25 x 52 | 1 | $8.44 | Available to order | 1 |
| 10 | T3803120 Bearing, Needle Roller, 17 x 24 x 12 | Bearing, Needle Roller, 17 x 24 x 12 | 1 | $12.57 | Available to order | 1 |
| 11 | T2051517 Sleeve, 10 x 17 x 21.4 | Sleeve, 10 x 17 x 21.4 | 1 | $8.93 | Available to order | 1 |
| 12 | T2051516 Shim, 18 x 32 x 0.4 | Shim, 18 x 32 x 0.4 | 2 | $2.19 | Available to order | 2 |
| 13 | T2051518 Spacer, Bucket, 10 x 25 x 8 | Spacer, Bucket, 10 x 25 x 8 | 2 | $7.27 | Available to order | 2 |
| 14 | T3350134 Locknut, M10 x 1.25 | Locknut, M10 x 1.25 | 1 | $2.54 | Available to order | 1 |
| 15 | T3600570 Seal, 25 x 32 x x 7 | Seal, 25 x 32 x x 7 | 4 | $2.19 | Available to order | 4 |
| 16 | T3800199 Bearing, Needle Roller, 20 x 26 x 20 | Bearing, Needle Roller, 20 x 26 x 20 | 4 | $16.50 | Available to order | 4 |
| 17 | T2059228 Shim, 20 x 31 x 5.1 | Shim, 20 x 31 x 5.1 | 4 | $3.56 | Available to order | 4 |
| 18 | T3554324 Shim, 15.3 x 19.4 x 0.1 | Shim, 15.3 x 19.4 x 0.1 | — | $5.19 | Available to order | 1 |
| 18 | T3554325 Shim, 15.3 x 19.4 x 0.2 | Shim, 15.3 x 19.4 x 0.2 | — | $5.19 | Available to order | 1 |
| 18 | T3554326 Shim, 15.3 x 19.4 x 0.3 | Shim, 15.3 x 19.4 x 0.3 | — | $5.58 | Available to order | 1 |
| 18 | T3554327 Shim, 15.3 x 19.4 x 0.4 | Shim, 15.3 x 19.4 x 0.4 | — | $6.82 | Available to order | 1 |
| 19 | T2051586 Sleeve, 15 x 20 x 48 | Sleeve, 15 x 20 x 48 | 2 | $26.65 | Available to order | 2 |
| 20 | T2051590 Spacer, Bucket, 15 x 20 x 10 | Spacer, Bucket, 15 x 20 x 10 | 4 | $8.88 | Available to order | 4 |
| 21 | T2051616 Bearing Kit 1, Rocker | Bearing Kit 1, Rocker Contains Items 15, 17, 18, 19 & 20 | 1 | $50.98 | Available to order | 1 |
| 22 | T2051617 Bearing Kit 2, Rocker | Bearing Kit 2, Rocker Contains Items 10, 11, 12 & 13 | 1 | $72.87 | Available to order | 1 |
| 23 | T2051619 Bearing Kit, Droplink | Bearing Kit, Droplink Contains Items 5, 6 & 7 | 1 | $22.35 | Available to order | 1 |
| 24 | T3600560 Seal, 25 x 32 x 4 | Seal, 25 x 32 x 4 | 2 | $3.50 | Available to order | 2 |
| 25 | T2051615 Rocker Suspension, Spares | Rocker Suspension, Spares Contains Rocker & Items 9, 10, 11, 12, 13, 15, 16, 17, 18, 19, 20 | 1 | $203.06 | Available to order | 1 |
