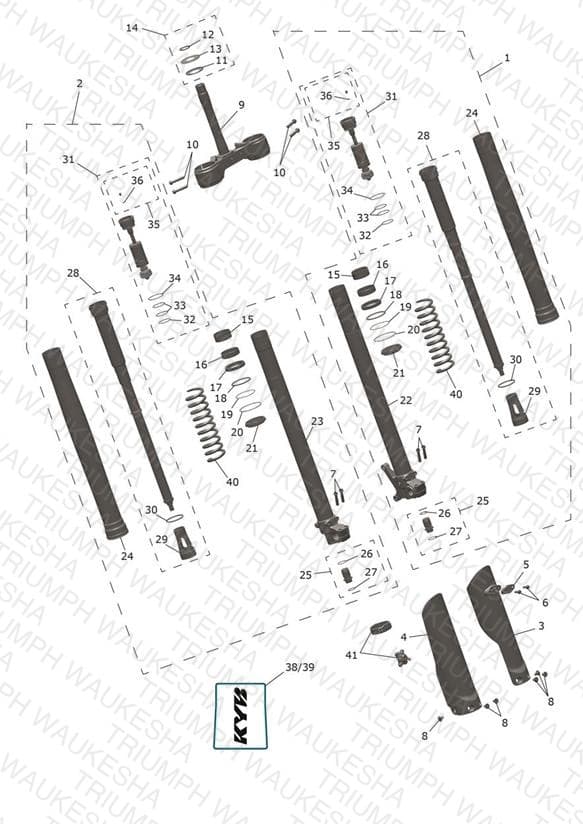

Triumph TF450-RC Edition Front Forks & Lower Yoke — OEM Parts Diagram

Triumph Waukesha is your source for OEM Triumph parts, accessories, and interactive schematics.OEM Triumph parts and schematics

Loading schematic...

What Our Customers Say

4.9 out of 5 based on 175 reviews

View all reviews →

“Thanks.”

B. BOUTET · SANTA MARIA, CA · Apr 2026

“So far excellent”

K. Colmark · Pharr, TX · Mar 2026

“great shop. easy to search/navigate for parts”

B. Hobratschk · Buda, TX · Feb 2026

“Very Smooth”

D. Haynes · GREENBACKVILLE, VA · Feb 2026

“Great inventory!”

S. Saenz · IDAHO FALLS, ID · Feb 2026

“This is my favorite Triumph OEM store on the planet”

C. Bozonier · VENTURA, CA · Jan 2026

#	Part Number	Description	Qty	Price	Status
1	T2046481 Front Fork, LH	Front Fork, LH This part is coated with a high performance anodising. It is normal for some colour variation when purchasing replacement parts	1	$1126.41	Available to order	1 Ships within 3–7 business days
2	T2046482 Front Fork, RH	Front Fork, RH This part is coated with a high performance anodising. It is normal for some colour variation when purchasing replacement parts	1	$1126.41	Available to order	1 Ships within 3–7 business days
3	T2046182 Guard, Fork Mldg, LH	Guard, Fork Mldg, LH	1	$44.40	Available to order	1 Ships within 3–7 business days
4	T2046183 Guard, Fork Mldg, RH	Guard, Fork Mldg, RH	1	$44.40	Available to order	1 Ships within 3–7 business days
5	T2044686 Clamp, Brake Hose	Clamp, Brake Hose	1	$4.45	Available to order	1 Ships within 3–7 business days
6	T3336102 Screw, S/Tap, HHF, 6 x 20, PT	Screw, S/Tap, HHF, 6 x 20, PT	2	$2.74	Available to order	2 Ships within 3–7 business days
7	T3200885 Bolt, TX Lghtd, M8 x 35, Slv	Bolt, TX Lghtd, M8 x 35, Slv Not included in Fork Assembly	4	$3.56	Available to order	4 Ships within 3–7 business days
8	T3201071 Bolt, TX, Shld, M x 12, Slv	Bolt, TX, Shld, M x 12, Slv	6	$2.67	Available to order	6 Ships within 3–7 business days
9	T2046421 Lower Yoke Assembly	Lower Yoke Assembly	1	$452.21	Available to order	1 Ships within 3–7 business days
10	T3200886 Bolt, TX, Lghtd, M8 x 40, Slv	Bolt, TX, Lghtd, M8 x 40, Slv	4	$3.56	Available to order	4 Ships within 3–7 business days
11	T3602516 Seal, Headstock, Lower	Seal, Headstock, Lower	1	$6.23	Available to order	1 Ships within 3–7 business days
12	T2043810 O Ring, ID 25 x 3.5	O Ring, ID 25 x 3.5	1	$1.78	Available to order	1 Ships within 3–7 business days
13	T3602517 Seal, Headstock, Upper	Seal, Headstock, Upper	1	$6.23	Available to order	1 Ships within 3–7 business days
14	T2044356 Bearing Kit, Headstock	Bearing Kit, Headstock Also Contains 2 x T3800610	1	$53.68	Available to order	1 Ships within 3–7 business days
15	T2045320 Bush, Inner Tube	Bush, Inner Tube	2	$11.58	Available to order	2 Ships within 3–7 business days
16	T2045315 Bush, Outer Tube	Bush, Outer Tube	2	$9.50	Available to order	2 Ships within 3–7 business days
17	T2045317 Oil Seal	Oil Seal	2	$16.07	Available to order	2 Ships within 3–7 business days
18	T2045316 Washer, Oil Seal	Washer, Oil Seal	2	$2.38	Available to order	2 Ships within 3–7 business days
19	T2045318 Snap Ring, Oil Seal	Snap Ring, Oil Seal	2	$3.17	Available to order	2 Ships within 3–7 business days
20	T2045314 Snap Ring	Snap Ring	2	$3.17	Available to order	2 Ships within 3–7 business days
21	T2045319 Dust Seal	Dust Seal	2	$15.07	Available to order	2 Ships within 3–7 business days
22	T2045321 Tube, Inner, LH	Tube, Inner, LH	1	$330.32	Available to order	1 Ships within 3–7 business days
23	T2045322 Tube, Inner, RH	Tube, Inner, RH	1	$316.75	Available to order	1 Ships within 3–7 business days
24	T2045313 Outer Tube	Outer Tube	2	$434.36	Available to order	2 Ships within 3–7 business days
25	T2045323 Bolt, Cartridge Assembly	Bolt, Cartridge Assembly	2	$38.91	Available to order	2 Ships within 3–7 business days
26	T2045324 Sealing Washer	Sealing Washer	2	$4.58	Available to order	2 Ships within 3–7 business days
27	T2045325 O Ring	O Ring	2	$1.41	Available to order	2 Ships within 3–7 business days
28	T2045306 Cartridge Assembly	Cartridge Assembly	2	$397.80	Available to order	2 Ships within 3–7 business days
29	T2045331 Spring Seat, Upper	Spring Seat, Upper	2	$34.65	Available to order	2 Ships within 3–7 business days
30	T2045333 O Ring	O Ring	2	$4.58	Available to order	2 Ships within 3–7 business days
31	T2045307 Base Valve Assembly	Base Valve Assembly	2	$186.78	Available to order	2 Ships within 3–7 business days
32	T2045335 O Ring	O Ring	2	$1.41	Available to order	2 Ships within 3–7 business days
33	T2045336 O Ring	O Ring	4	$1.41	Available to order	4 Ships within 3–7 business days
34	T2045337 O Ring	O Ring	2	$1.69	Available to order	2 Ships within 3–7 business days
35	T2045338 Bleed Screw Assembly	Bleed Screw Assembly	2	$5.57	Available to order	2 Ships within 3–7 business days
36	T2045341 Fork Seal Kit	Fork Seal Kit Contains item 17 & 21	1	$37.80	Available to order	1 Ships within 3–7 business days
36	T2045339 O Ring	O Ring	2	$1.41	Available to order	2 Ships within 3–7 business days
37	T2045342 Fork Bush Kit	Fork Bush Kit Contains item 15 & 16	1	$25.92	Available to order	1 Ships within 3–7 business days
38	T2046587 Fork Decal, LH	Fork Decal, LH	1	$27.98	Available to order	1 Ships within 3–7 business days
39	T2046584 Fork Decal, RH	Fork Decal, RH	1	$27.98	Available to order	1 Ships within 3–7 business days
40	T2048919 Spring Kit, Front Fork, K4.8	Spring Kit, Front Fork, K4.8	2	$105.45	Available to order	2 Ships within 3–7 business days
40	T2048920 Spring Kit, Front Fork, K4.9	Spring Kit, Front Fork, K4.9	2	$105.45	Available to order	2 Ships within 3–7 business days
40	T2048921 Spring Kit, Front Fork, K5.0	Spring Kit, Front Fork, K5.0	2	$88.80	Available to order	2 Ships within 3–7 business days
40	T2048922 Spring Kit, Front Fork, K5.1	Spring Kit, Front Fork, K5.1	2	$88.80	Available to order	2 Ships within 3–7 business days
41	T2049641 Hole Shot Device	Hole Shot Device	1	$168.71	Available to order	1 Ships within 3–7 business days
