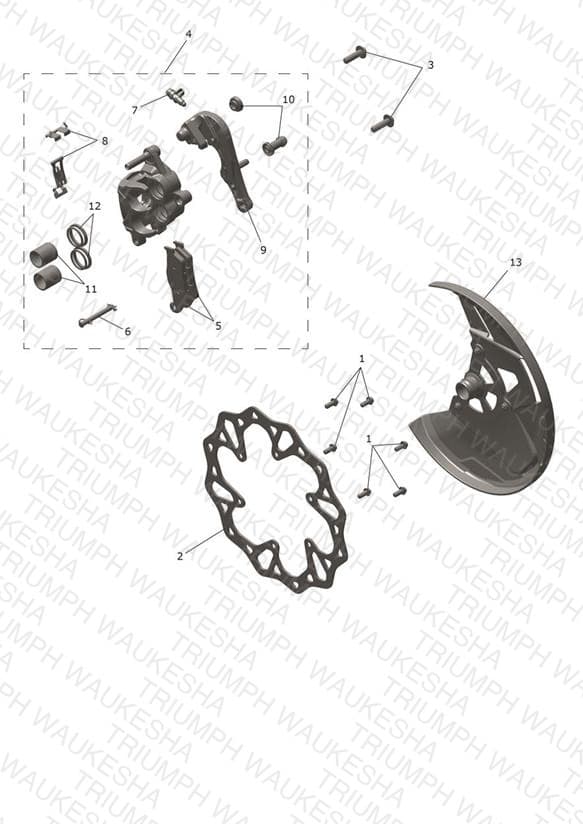

Front Caliper & Discs
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T3200672 Bolt, TX, Lghtd, M6 x 14, Enc | Bolt, TX, Lghtd, M6 x 14, Enc | 6 | $2.67 | Available to order | 6 |
| 2 | T2022346 Front Disc, MX | Front Disc, MX | 1 | $146.56 | Available to order | 1 |
| 3 | T3200805 Bolt, TX, M8 x 28, Slv | Bolt, TX, M8 x 28, Slv | 2 | $2.67 | Available to order | 2 |
| 4 | T2025026 Front Caliper Assembly | Front Caliper Assembly | 1 | $411.10 | Available to order | 1 |
| 5 | T2022355 Front Brake Pads Kit | Front Brake Pads Kit | 1 | $44.80 | Available to order | 1 |
| 6 | T2022356 Retaining Pin Kit | Retaining Pin Kit | 1 | $19.90 | Available to order | 1 |
| 7 | T2022357 Bleed Screw Kit | Bleed Screw Kit | 1 | $3.61 | Available to order | 1 |
| 8 | T2022359 Spring Steel Clip Kit | Spring Steel Clip Kit | 1 | $31.47 | Available to order | 1 |
| 9 | T2026242 Bracket, Front Caliper | Bracket, Front Caliper | 1 | $255.99 | Available to order | 1 |
| 10 | T2022352 Boot Kit | Boot Kit | 1 | $31.47 | Available to order | 1 |
| 11 | T2026243 Kit, Caliper Piston | Kit, Caliper Piston | 1 | $52.47 | Available to order | 1 |
| 12 | T2026244 Kit, Caliper Seal | Kit, Caliper Seal | 1 | $30.05 | Available to order | 1 |
| 13 | T2029621 Brake Disc Guard | Brake Disc Guard | 1 | $97.67 | Available to order | 1 |
