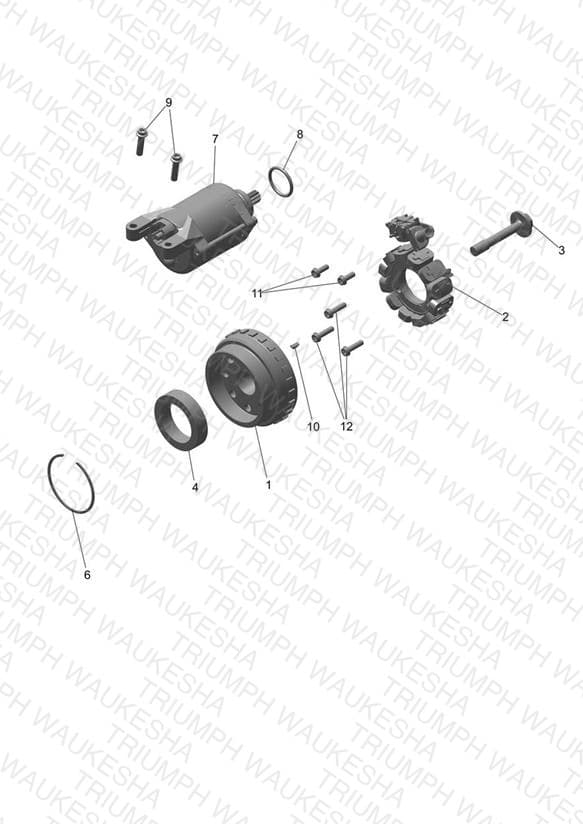

Alternator & Starter Motor
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1300194 Rotor, Alternator, Assy | Rotor, Alternator, Assy | 1 | $276.32 | Available to order | 1 |
| 2 | T1300198 Stator, Alternator | Stator, Alternator | 1 | $1139.45 | Available to order | 1 |
| 3 | T3200401 Bolt, M10 x 60, HX HD FL | Bolt, M10 x 60, HX HD FL | 1 | $4.74 | Available to order | 1 |
| 4 | T1300129 Sprag, Starter | Sprag, Starter | 1 | $247.97 | Available to order | 1 |
| 6 | T3500114 Snap Ring, Int, 59.3 x 1.5 | Snap Ring, Int, 59.3 x 1.5 | 1 | $7.31 | Available to order | 1 |
| 7 | T1310159 Starter Motor | Starter Motor | 1 | $296.40 | Available to order | 1 |
| 8 | T3600292 O Ring, 25 x 3 | O Ring, 25 x 3 | 1 | $1.74 | Available to order | 1 |
| 9 | T3200664 Bolt, TX, Lghtd, M6 x 25, Slv | Bolt, TX, Lghtd, M6 x 25, Slv | 2 | $3.78 | Available to order | 2 |
| 10 | T1300147 Woodruff Key, 3 x 3.7 | Woodruff Key, 3 x 3.7 | 1 | $1.90 | Available to order | 1 |
| 11 | T3200552 Bolt, TX, M5 x 14, Enc | Bolt, TX, M5 x 14, Enc | 2 | $2.84 | Available to order | 2 |
| 12 | T3200554 Bolt, TX, M5 x 20, Eng | Bolt, TX, M5 x 20, Eng | 3 | $3.78 | Available to order | 3 |
