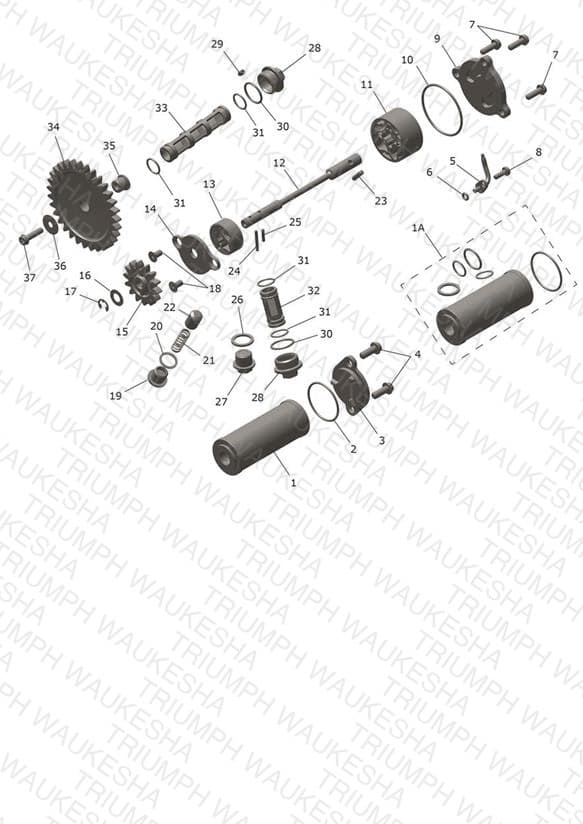

Lubrication System
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1210378 Filter, Oil, Element | Filter, Oil, Element | 1 | $12.72 | Available to order | 1 |
| 1A | T1210391 Oil Filter Change Kit | Oil Filter Change Kit Kit Contains items 1, 2, 26, 30 & 31 | 1 | $20.09 | Available to order | 1 |
| 2 | T3600270 O Ring, ID33.05 x 1.78 | O Ring, ID33.05 x 1.78 | 1 | $1.33 | Available to order | 1 |
| 3 | T1210379 Cover, Oil Filter | Cover, Oil Filter | 1 | $27.53 | Backorder — Late September 2026 | 1 |
| 4 | T3200670 Bolt, TX, Lghtd, M6 x 16, Enc | Bolt, TX, Lghtd, M6 x 16, Enc | 2 | $3.56 | Available to order | 2 |
| 5 | T1212352 Spray Jet, Piston, 50 | Spray Jet, Piston, 50 | 1 | $14.05 | Available to order | 1 |
| 6 | T3600266 O Ring, ID3.5 x 2 | O Ring, ID3.5 x 2 | 1 | $0.22 | Available to order | 1 |
| 7 | T3200553 Bolt, TX, M5 x 16, Enc | Bolt, TX, M5 x 16, Enc | 3 | $2.09 | Available to order | 3 |
| 8 | T3330452 Screw, Pan/Hd, TX, M4 x 0.7 x 12, Blk | Screw, Pan/Hd, TX, M4 x 0.7 x 12, Blk | 1 | $1.81 | Available to order | 1 |
| 9 | T1210383 Cover, Oil, Rotor, Dia 40 | Cover, Oil, Rotor, Dia 40 | 1 | $16.40 | Available to order | 1 |
| 10 | T3600271 O Ring, ID44 x 2 | O Ring, ID44 x 2 | 1 | $1.78 | Available to order | 1 |
| 11 | T1210337 Gerotor Set, Oil, Plastic, Assy | Gerotor Set, Oil, Plastic, Assy | 1 | $119.80 | Available to order | 1 |
| 12 | T1210409 Shaft Drive, Oil Pump | Shaft Drive, Oil Pump | 1 | $62.16 | Available to order | 1 |
| 13 | T1210339 Gerotor Set, Oil Pump, Assy | Gerotor Set, Oil Pump, Assy | 1 | $7.65 | Available to order | 1 |
| 14 | T1210355 Cover, Oil Rotor, Dia 29 | Cover, Oil Rotor, Dia 29 | 1 | $16.10 | Available to order | 1 |
| 15 | T1212360 Gear, Oil Pump, Plastic, 14T | Gear, Oil Pump, Plastic, 14T | 1 | $15.02 | Available to order | 1 |
| 16 | T3550341 Washer, 8.1 x 15 x 0.5 | Washer, 8.1 x 15 x 0.5 | 1 | $0.56 | Available to order | 1 |
| 17 | T3500107 Circlip, E-Type, 6 x 0.7 | Circlip, E-Type, 6 x 0.7 | 1 | $0.10 | Available to order | 1 |
| 18 | T3331865 Screw, Skt Csk, M5 x 10, Slv, Enc | Screw, Skt Csk, M5 x 10, Slv, Enc | 2 | $5.67 | Available to order | 2 |
| 19 | T3450209 Plug, PRV, M12 x 10 | Plug, PRV, M12 x 10 | 1 | $8.88 | Backorder — Late August 2026 | 1 |
| 20 | T3550571 Washer, Cu, OD 16 x ID 12.5 | Washer, Cu, OD 16 x ID 12.5 | 1 | $5.07 | Available to order | 1 |
| 21 | T1210766 Spring, PRV, 29mm | Spring, PRV, 29mm | 1 | $2.32 | Available to order | 1 |
| 22 | T1210696 Piston, PRV, 11mm | Piston, PRV, 11mm | 1 | $7.66 | Available to order | 1 |
| 23 | T3000117 Pin, 4.0 x 14.8 | Pin, 4.0 x 14.8 | 1 | $0.26 | Available to order | 1 |
| 24 | T3000116 Pin, 2.5 x 19.8 | Pin, 2.5 x 19.8 | 1 | $0.26 | Available to order | 1 |
| 25 | T3000115 Pin, 2.5 x 11.8 | Pin, 2.5 x 11.8 | 1 | $0.26 | Available to order | 1 |
| 26 | T3550547 Washer, Cu, OD19 x ID14.2 | Washer, Cu, OD19 x ID14.2 | 1 | $4.32 | Available to order | 1 |
| 27 | T3450216 Sump Plug, M14 x 1.5 x 10, Aluminium | Sump Plug, M14 x 1.5 x 10, Aluminium | 1 | $17.25 | Available to order | 1 |
| 28 | T3450207 Plug, Oil Strainer, M20 x 8 | Plug, Oil Strainer, M20 x 8 | 2 | $17.77 | Backorder — Late September 2026 | 2 |
| 29 | T1210392 Oil Jet, 0.7 | Oil Jet, 0.7 | 1 | $5.67 | Available to order | 1 |
| 30 | T3600273 O Ring, ID17.17 x 1.78 | O Ring, ID17.17 x 1.78 | 2 | $1.33 | Available to order | 2 |
| 31 | T3600272 O Ring, ID12.5 x 1.5 | O Ring, ID12.5 x 1.5 | 4 | $1.33 | Available to order | 4 |
| 32 | T1210386 Strainer, Oil, Scavenge | Strainer, Oil, Scavenge | 1 | $17.77 | Available to order | 1 |
| 33 | T1210360 Strainer, Oil, Dia 15 x 74 | Strainer, Oil, Dia 15 x 74 | 1 | $35.52 | Available to order | 1 |
| 34 | T1212362 Gear, Drive, Oil Pump, Plastic, 31T | Gear, Drive, Oil Pump, Plastic, 31T | 1 | $46.84 | Available to order | 1 |
| 35 | T1210376 Shaft, Idler, Oil Pump | Shaft, Idler, Oil Pump | 1 | $8.52 | Available to order | 1 |
| 36 | T3550337 Washer, 5.3 x 18 x 0.5 | Washer, 5.3 x 18 x 0.5 | 1 | $2.85 | Available to order | 1 |
| 37 | T3200554 Bolt, TX, M5 x 20, Eng | Bolt, TX, M5 x 20, Eng | 1 | $3.56 | Available to order | 1 |
