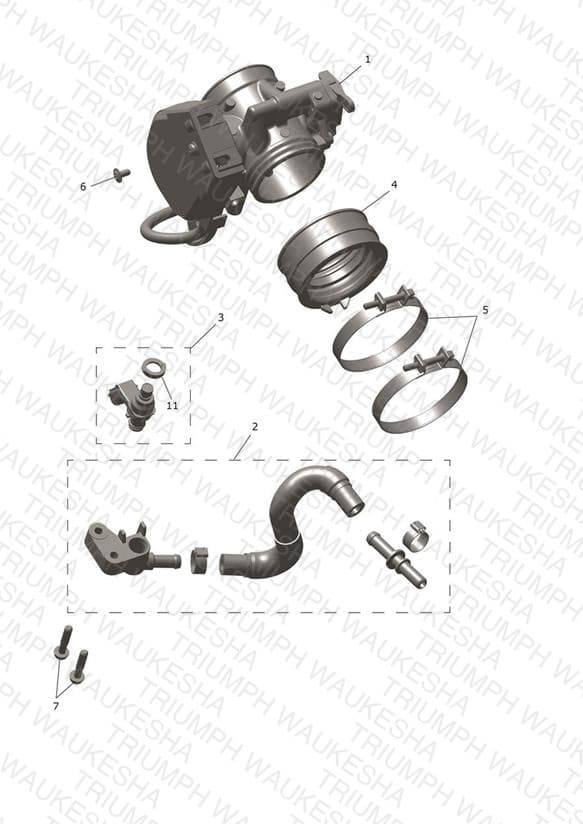

Throttle Bodies
Parts (8)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1245106 Throttle Body Assembly | Throttle Body Assembly | 1 | $345.97 | Available to order | 1 |
| 2 | T2406083 Hose Assy, Injector, MX | Hose Assy, Injector, MX | 1 | $67.85 | Available to order | 1 |
| 3 | T1246602 Fuel Injector Assembly | Fuel Injector Assembly | 1 | $71.77 | Available to order | 1 |
| 4 | T1240636 Transition Piece | Transition Piece | 1 | $38.04 | Available to order | 1 |
| 5 | T3700248 Clip, Dia 61 | Clip, Dia 61 | 2 | $5.73 | Available to order | 2 |
| 6 | T3330434 Bolt, TX20, M4 x 0.7 x 8 | Bolt, TX20, M4 x 0.7 x 8 | 1 | $8.60 | Available to order | 1 |
| 7 | T3200556 Bolt, TX, M5 x 0.8 x 25, Enc | Bolt, TX, M5 x 0.8 x 25, Enc | 2 | $2.67 | Available to order | 2 |
| 11 | T1243421 Seal Ring, Dust | Seal Ring, Dust | 1 | $19.98 | Available to order | 1 |
