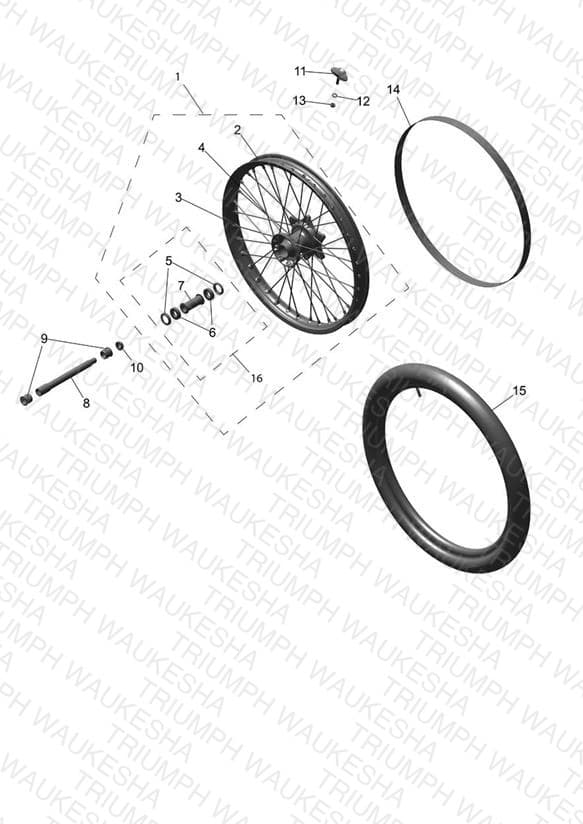

Front Wheel
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2009269 Front Wheel Assy, 1.6 x 2.1 | Front Wheel Assy, 1.6 x 2.1 | 1 | $614.65 | Available to order | 1 |
| 2 | T2005069 Rim | Rim | 1 | $626.76 | Available to order | 1 |
| 3 | T2005037 Nipple, Aluminium, Spoke | Nipple, Aluminium, Spoke | 36 | $3.59 | Available to order | 36 |
| 4 | T2000712 Spoke, Wire, 224mm | Spoke, Wire, 224mm | 36 | $5.30 | Available to order | 36 |
| 5 | T3600315 Oil Seal, 26 38 x 7 | Oil Seal, 26 38 x 7 | 2 | $6.70 | Available to order | 2 |
| 6 | T3800267 Bearing, Ball, 20x 37 x 9 | Bearing, Ball, 20x 37 x 9 | 2 | $24.14 | Available to order | 2 |
| 7 | T2000694 Spacer, 20 x 25.8 x 70 | Spacer, 20 x 25.8 x 70 | 1 | $19.52 | Available to order | 1 |
| 8 | T2000692 Spindle, Front Wheel | Spindle, Front Wheel | 1 | $79.92 | Available to order | 1 |
| 9 | T2000893 Spacer, Wheel | Spacer, Wheel | 2 | $17.77 | Available to order | 2 |
| 10 | T3350165 Nut, M16 x 1.5 | Nut, M16 x 1.5 | 1 | $0.25 | Available to order | 1 |
| 11 | T2000880 Rim Lock, 1.6 Inch | Rim Lock, 1.6 Inch | 1 | $14.10 | Available to order | 1 |
| 12 | T3550405 Washer, M8 x 17 x 1.6 | Washer, M8 x 17 x 1.6 | 1 | $0.89 | Available to order | 1 |
| 13 | T3350303 Nut, M8, Silver | Nut, M8, Silver | 1 | $0.81 | Available to order | 1 |
| 14 | T2000968 Rim Band, 21 Inch | Rim Band, 21 Inch | 1 | $11.25 | Available to order | 1 |
| 15 | T2000845 Inner Tube, 21 Inch | Inner Tube, 21 Inch | 1 | $44.40 | Available to order | 1 |
| 16 | T2009258 Hub, Sub Assy | Hub, Sub Assy | 1 | $150.96 | Available to order | 1 |
| 17 | T2004251 Spoke Kit, Front Wheel | Spoke Kit, Front Wheel Comprises 1 x nipple and 1 x spoke | 1 | $9.91 | Available to order | 1 |
| 18 | T2004252 Bearing Kit, Front Wheel | Bearing Kit, Front Wheel Comprises all items 5, 6, 7 & 9 | 1 | $51.84 | Available to order | 1 |
