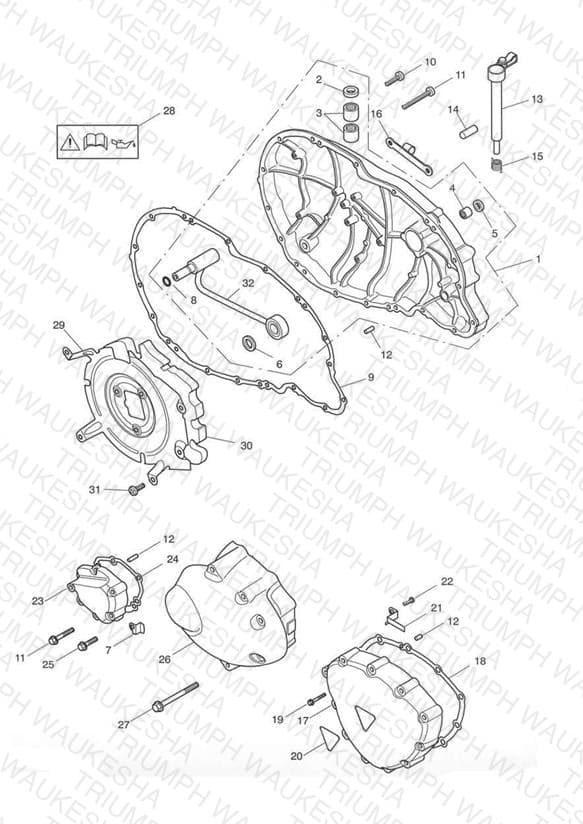

Engine Covers
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1260975 Clutch cover Assy, pol & laq | Clutch cover Assy, pol & laq > Eng No 221608 (plus Eng. No.s 229407 > 230164) | 1 | $342.72 | Obsolete | View Details |
| 1 | T1261231 Clutch Cover Assy | Clutch Cover Assy Eng No 221609 > (except Eng. No.s 229407 > 230164) | 1 | $413.67 | Available to order | 1 |
| 2 | T3600095 Dust Seal | Dust Seal | 1 | $2.25 | Available to order | 1 |
| 3 | T3800110 Roller Bearing, HK 1210 | Roller Bearing, HK 1210 | 2 | $6.65 | Available to order | 2 |
| 4 | 3800041-T0301 Bearing, Gearbox Lever | Bearing, Gearbox Lever | 1 | $13.61 | Available to order | 1 |
| 5 | T3600008 Oil Seal | Oil Seal | 1 | $12.04 | Available to order | 1 |
| 6 | T3600240 Seal, oil, 14.5 28.4 6.5 | Seal, oil, 14.5 28.4 6.5 > Eng No 221608 (plus Eng. No.s 229407 > 230164) | 1 | $49.41 | Available to order | 1 |
| 7 | T1260965 Bracket, Neut ID Lead, Ret | Bracket, Neut ID Lead, Ret | 1 | $8.33 | Available to order | 1 |
| 8 | T3600143 O Ring, ID 9.1 x 1.6, Viton | O Ring, ID 9.1 x 1.6, Viton > Eng No 221608 (plus Eng. No.s 229407 > 230164) | 1 | $2.10 | Available to order | 1 |
| 9 | T1260967 Gasket, Clutch Cover | Gasket, Clutch Cover | 1 | $11.28 | Available to order | 1 |
| 10 | T3203030 Bolt, RHHF, Domed, M6 x 30 | Bolt, RHHF, Domed, M6 x 30 | 7 | $3.50 | Available to order | 7 |
| 11 | T3203040 Bolt, RHHF Domed, M6 x 40 | Bolt, RHHF Domed, M6 x 40 | 14 | $1.72 | Available to order | 14 |
| 12 | T3000005 Dowel, Dia 6 x 16.5 | Dowel, Dia 6 x 16.5 | 8 | $1.13 | Available to order | 8 |
| 13 | T1171450 Clutch Lifter Arm | Clutch Lifter Arm | 1 | $82.73 | Available to order | 1 |
| 14 | T1171701 Bullet, Clutch Lifter | Bullet, Clutch Lifter | 1 | $37.09 | Available to order | 1 |
| 15 | T1170925 Spring return | Spring return | 1 | $2.55 | Available to order | 1 |
| 16 | T1171410 Clutch Cable Holder / Guide | Clutch Cable Holder / Guide | 1 | $10.81 | Out of Stock | Notify Me |
| 17 | T1263020 Alternator Cover, Brush & Lacq | Alternator Cover, Brush & Lacq * PART NO LONGER AVAILABLE * | 1 | $186.22 | Obsolete | View Details |
| 18 | T1260968 Gasket, RH Cover | Gasket, RH Cover | 1 | $8.06 | Available to order | 1 |
| 19 | T3203050 Bolt, Domed, S/S, M6 x 50 | Bolt, Domed, S/S, M6 x 50 | 11 | $6.73 | Available to order | 11 |
| 20 | T3950100 Triumph Badge, Triangular | Triumph Badge, Triangular | 1 | $13.33 | Available to order | 1 |
| 21 | T1261178 Plate, Wire Retainer | Plate, Wire Retainer | 1 | $6.14 | Available to order | 1 |
| 22 | T3051062 Screw, M6 x 12, Enc, Raw | Screw, M6 x 12, Enc, Raw | 1 | $1.47 | Available to order | 1 |
| 23 | T1260962 Cover, G/Change Mech, Silver | Cover, G/Change Mech, Silver > Eng No 282963-F2/273654-F4 | 1 | $133.08 | Available to order | 1 |
| 23 | T1260992 Cover, Gearchange Mech, Black | Cover, Gearchange Mech, Black Eng No 282964-F2/273655-F4 > | 1 | $136.88 | Available to order | 1 |
| 24 | T1260969 Gasket, Gearchange Mech Cover | Gasket, Gearchange Mech Cover | 1 | $8.46 | Available to order | 1 |
| 25 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 2 | $3.50 | Available to order | 2 |
| 26 | T1263030 Sprocket Cover, Brushed & Lacquered | Sprocket Cover, Brushed & Lacquered > 323213 | 1 | $174.91 | Available to order | 1 |
| 26 | T1260897 Sprocket Cover, Brushed & Chromate | Sprocket Cover, Brushed & Chromate 323214 > | 1 | $174.91 | Available to order | 1 |
| 27 | T3203075 Bolt, RHHF, M6 x 75 S/Less | Bolt, RHHF, M6 x 75 S/Less PART NO LONGER AVAILABLE | 5 | $3.78 | Obsolete | View Details |
| 28 | T3900302 Label, Oil & Filter | Label, Oil & Filter F2 | 1 | $5.69 | Available to order | 1 |
| 29 | T1260928 Plate, Sound Pad, Clutch Cover | Plate, Sound Pad, Clutch Cover | 1 | $14.46 | Available to order | 1 |
| 30 | T1260927 Pad, Sound Suppression | Pad, Sound Suppression | 1 | $43.28 | Available to order | 1 |
| 31 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 8 | $1.40 | Available to order | 8 |
| 32 | T1260950 Breather Pipe T | Breather Pipe T > Eng No 221608 (plus Eng. No.s 229407> 230164) | 1 | $104.56 | Available to order | 1 |
