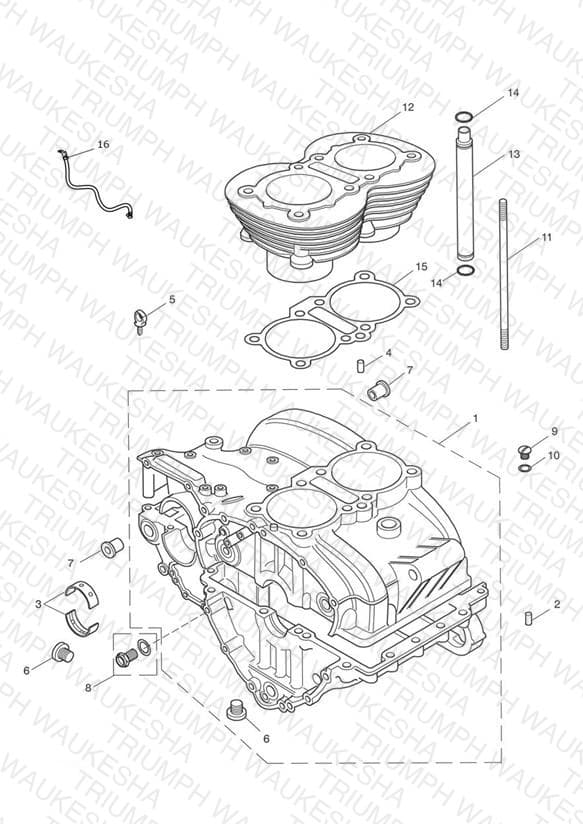

Crankcase & Fittings - up to Eng No 221608 (Plus Eng No's 229407 to 230164)
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1160159 Crankcase Kit, Slv, B & Laq | Crankcase Kit, Slv, B & Laq PART NO LONGER AVAILABLE | 1 | $4857.36 | Obsolete | View Details |
| 2 | T3000102 Dowel, Hollow, 10 x 14 | Dowel, Hollow, 10 x 14 | 4 | $1.79 | Available to order | 4 |
| 3 | T1160750 Main Bearing Shell, Grooved | Main Bearing Shell, Grooved WHITE | — | $12.70 | Available to order | 1 |
| 3 | T1160751 Main Bearing Shell, Grooved | Main Bearing Shell, Grooved RED | — | $12.70 | Available to order | 1 |
| 3 | T1160752 Main Bearing Shell, Grooved | Main Bearing Shell, Grooved BLUE | — | $12.70 | Available to order | 1 |
| 3 | T1160753 Main Bearing Shell, Grooved | Main Bearing Shell, Grooved GREEN | — | $12.70 | Available to order | 1 |
| 4 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 2 | $3.90 | Available to order | 2 |
| 5 | T3700909 Clip, Cable, M10 Fir Tree | Clip, Cable, M10 Fir Tree | 1 | $3.70 | Available to order | 1 |
| 6 | T3450005 Plug, NPSI 3/8 Dryseal | Plug, NPSI 3/8 Dryseal | 4 | $6.65 | Available to order | 4 |
| 7 | T2056859 Bush, S/Arm Pivot, 230M07 | Bush, S/Arm Pivot, 230M07 | 2 | $14.32 | Available to order | 2 |
| 8 | T1160665 Sightglass, Oil, Dia 20 | Sightglass, Oil, Dia 20 | 1 | $22.64 | Available to order | 1 |
| 9 | T1261488 Oil Filler Plug, Chromed | Oil Filler Plug, Chromed | 1 | $30.32 | Available to order | 1 |
| 10 | T3600028 O Ring, Filler Cap | O Ring, Filler Cap | 1 | $1.40 | Available to order | 1 |
| 11 | T1162010 Stud, Cylinder Head | Stud, Cylinder Head | 8 | $5.24 | Available to order | 8 |
| 12 | T1169022 Barrels, 2 Cyl, Dia 90.0 | Barrels, 2 Cyl, Dia 90.0 | 1 | $2119.28 | Available to order | 1 |
| 13 | T1161100 Tube, Air | Tube, Air | 1 | $27.68 | Available to order | 1 |
| 14 | T3600915 O Ring, ID 18 x 3 | O Ring, ID 18 x 3 | 2 | $2.95 | Available to order | 2 |
| 15 | T1160127 Gasket, Base, 2 Cyl, Dia 90 | Gasket, Base, 2 Cyl, Dia 90 | 1 | $36.74 | Available to order | 1 |
| 16 | T2500574 Extension Lead, Alternator | Extension Lead, Alternator | 1 | $6.30 | Available to order | 1 |
