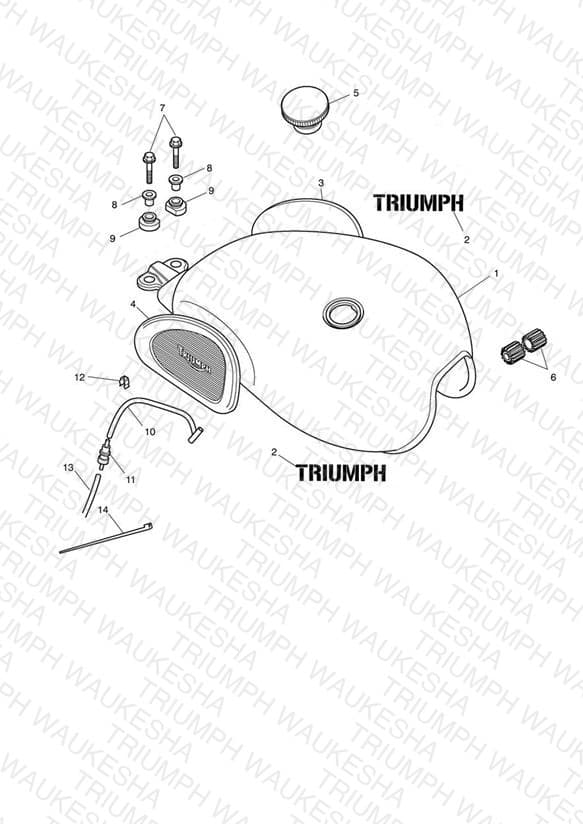

Fuel Tank & Fittings - Steve McQueen Edition
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2402216-HS Fuel Tank Spares Assy | Fuel Tank Spares Assy Khaki Green; Includes decal, item 2 and knee pads, items 3 & 4 | 1 | $2289.21 | Available to order | 1 |
| 2 | T2402547 Decal, Fuel Tank, Side | Decal, Fuel Tank, Side | 2 | $60.87 | Available to order | 2 |
| 3 | T2400158 Knee Pad, Fuel Tank, LH | Knee Pad, Fuel Tank, LH | 1 | $64.62 | Available to order | 1 |
| 4 | T2400159 Knee Pad, Fuel Tank, RH | Knee Pad, Fuel Tank, RH | 1 | $64.62 | Available to order | 1 |
| 5 | T2400597 Fuel Filler Cap, Screw Type | Fuel Filler Cap, Screw Type | 1 | $110.28 | Available to order | 1 |
| 6 | T2400603 Bush, Tank Mount | Bush, Tank Mount | 2 | $2.63 | Available to order | 2 |
| 7 | T3205083 Bolt, HHF, LGHTD, M6 x 28, Slv | Bolt, HHF, LGHTD, M6 x 28, Slv | 2 | $2.48 | Available to order | 2 |
| 8 | T3010042 Flanged Sleeve, M6 x 10 x 18 | Flanged Sleeve, M6 x 10 x 18 | 2 | $1.79 | Available to order | 2 |
| 9 | T2400602 Grommet, Long, Tank Rear Mount | Grommet, Long, Tank Rear Mount | 2 | $2.10 | Available to order | 2 |
| 10 | T2401550 Hose, Tank Breather | Hose, Tank Breather | 1 | $15.19 | Available to order | 1 |
| 11 | T2400074 Roll Over Valve | Roll Over Valve | 1 | $40.30 | Available to order | 1 |
| 12 | T3700233 Clip, Brake Hose | Clip, Brake Hose | 1 | $5.88 | Available to order | 1 |
| 13 | T2402126 Hose, Tank Breather, Formed | Hose, Tank Breather, Formed | 1 | $15.19 | Available to order | 1 |
| 14 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
