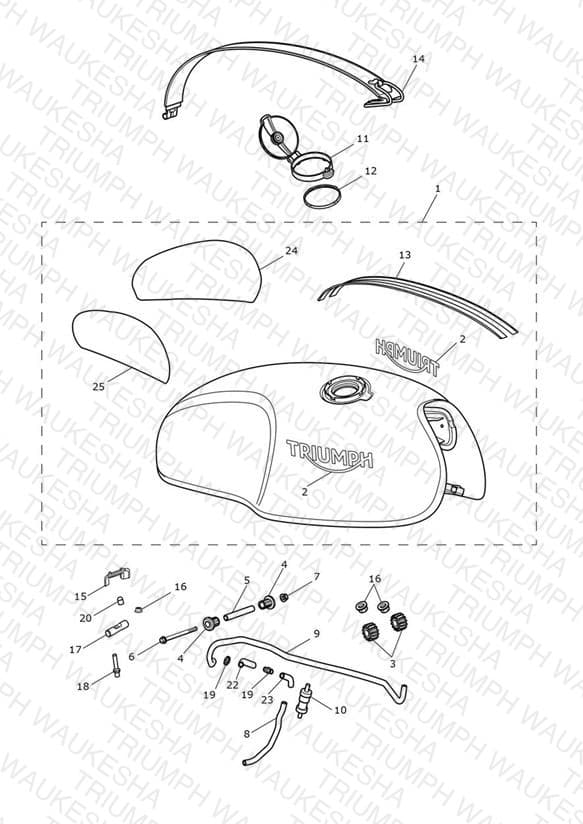

Fuel Tank - Aegean Blue Tanks
← Fuel Tank- Storm Grey, Competition Green & Jet Black/Silver Ice TanksFuel Tank - Chrome/Jet Black Tanks →
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2406565-JH Fuel Tank Assy, Aegean Blue | Fuel Tank Assy, Aegean Blue Aegean Blue/Fusion White | 1 | $2985.92 | Available to order | 1 |
| 2 | T2407111 Decal, Fuel Tank, Wordmark | Decal, Fuel Tank, Wordmark | 2 | $32.52 | Available to order | 2 |
| 3 | T2400854 Tank Mount Bush | Tank Mount Bush | 2 | $2.74 | Available to order | 2 |
| 4 | T2403597 Rubber Bush | Rubber Bush | 2 | $3.50 | Available to order | 2 |
| 5 | T2401401 Turned Spacer, Tank Mount | Turned Spacer, Tank Mount | 1 | $8.65 | Backorder — Early August 2026 | 1 |
| 6 | T3202330 Bolt, RHHF, M6 x 90, Slv | Bolt, RHHF, M6 x 90, Slv | 1 | $11.03 | Available to order | 1 |
| 7 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 8 | T2403041 Hose, Formed, Rollover Drain | Hose, Formed, Rollover Drain | 1 | $16.74 | Available to order | 1 |
| 9 | T2405892 Hose, Formed, Tank to Restrictor | Hose, Formed, Tank to Restrictor | 1 | $19.91 | Out of Stock | Notify Me |
| 10 | T2405042 Roll Over Valve | Roll Over Valve | 1 | $40.38 | Available to order | 1 |
| 11 | T2400812 Fuel Filler Cap, Monza | Fuel Filler Cap, Monza | 1 | $98.85 | Available to order | 1 |
| 12 | T2401403 Fixture Ring, Plastic | Fixture Ring, Plastic | 1 | $7.02 | Available to order | 1 |
| 13 | T2401987 Half Gasket, Tank Strap, Adhesive | Half Gasket, Tank Strap, Adhesive | 2 | $10.55 | Available to order | 2 |
| 14 | T2402670 Fabricatiion, Tank Strap | Fabricatiion, Tank Strap | 1 | $98.85 | Available to order | 1 |
| 15 | T2401541 Shield, Tank Strap, Rubber | Shield, Tank Strap, Rubber | 1 | $28.80 | Available to order | 1 |
| 16 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 3 | $2.25 | Available to order | 3 |
| 17 | T2401447 Tank Strap, Boss | Tank Strap, Boss | 1 | $18.85 | Available to order | 1 |
| 18 | T2401448 Stud, M5/M6 | Stud, M5/M6 | 1 | $10.18 | Available to order | 1 |
| 19 | T2401851 Restrictor, Hose, Breather | Restrictor, Hose, Breather | 2 | $11.32 | Available to order | 2 |
| 20 | T3450159 Rubber Cap, 4.8 x 6,5 | Rubber Cap, 4.8 x 6,5 | 1 | $3.90 | Available to order | 1 |
| 22 | T2405893 Hose, Formed, Restrictor to Restrictor | Hose, Formed, Restrictor to Restrictor | 1 | $11.32 | Out of Stock | Notify Me |
| 23 | T2405894 Hose, Formed, Restrictor to Rollover | Hose, Formed, Restrictor to Rollover | 1 | $17.28 | Out of Stock | Notify Me |
| 24 | T2405398 Decal, Kneepad, LH | Decal, Kneepad, LH | 1 | $46.34 | Available to order | 1 |
| 25 | T2405399 Decal, Kneepad, RH | Decal, Kneepad, RH | 1 | $46.34 | Available to order | 1 |
