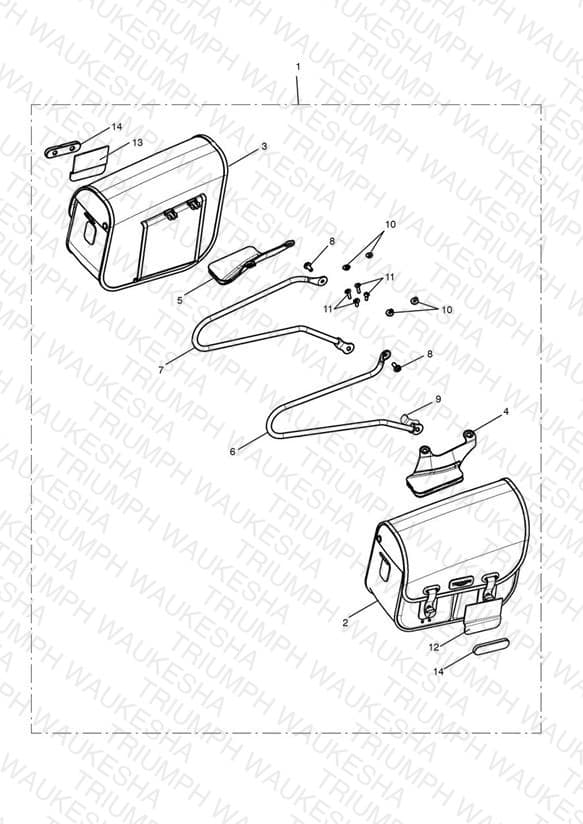

Panniers, Waxed, Cotton, Olive
Schematic
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9518093 Waxed Cotton Panniers - Olive | Waxed Cotton Panniers - Olive Not Compatible with 9708515 and 9708516. Also Requires 9950009 | 1 | $575.00 | Obsolete | View Details |
| 2 | T9510234 Pannier, Wax Cotton, Olive, RH | Pannier, Wax Cotton, Olive, RH | 1 | $448.05 | Backorder — Late August 2026 | 1 |
| 3 | T9510235 Pannier, Wax Cotton, Olive, LH | Pannier, Wax Cotton, Olive, LH | 1 | $448.05 | Available to order | 1 |
| 4 | T9510219 Harness, Pannier, RH | Harness, Pannier, RH | 1 | $53.40 | Available to order | 1 |
| 5 | T9510220 Harness, Pannier, LH | Harness, Pannier, LH PART NO LONGER AVAILABLE | 1 | $33.99 | Obsolete | View Details |
| 6 | T9510398 Pannier Rail, RHS, Chrome | Pannier Rail, RHS, Chrome | 1 | $205.79 | Available to order | 1 |
| 7 | T9510399 Pannier Rail, LHS, Chrome | Pannier Rail, LHS, Chrome | 1 | $205.79 | Available to order | 1 |
| 8 | T3205469 Bolt, HHF, Lghtd, M8 x 20, Enc | Bolt, HHF, Lghtd, M8 x 20, Enc | 2 | $4.92 | Available to order | 2 |
| 9 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 2 | $2.45 | Available to order | 2 |
| 10 | T9910908 Sleeve, Flgd, 6.4 x 11.5 x 4 | Sleeve, Flgd, 6.4 x 11.5 x 4 | 4 | $4.45 | Available to order | 4 |
| 11 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 4 | $5.30 | Available to order | 4 |
| 12 | T9510271 Reflector Bracket, RH | Reflector Bracket, RH | 1 | $14.04 | Available to order | 1 |
| 13 | T9510272 Reflector Bracket, LH | Reflector Bracket, LH | 1 | $14.04 | Available to order | 1 |
| 14 | T2700443 Reflector, Oval, Red | Reflector, Oval, Red | 2 | $6.14 | Available to order | 2 |
