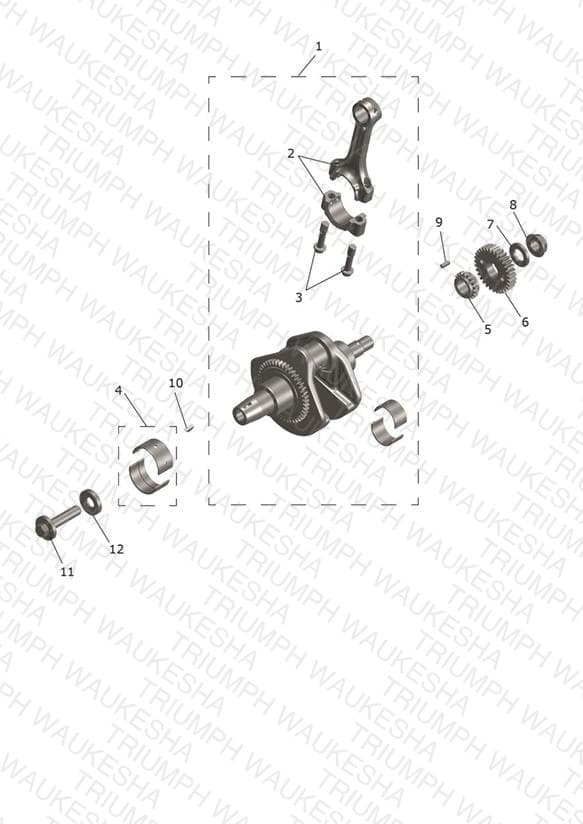

Crankshaft & Conrod
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA531013 Crankshaft | Crankshaft | 1 | $590.94 | Available to order | 1 |
| 2 | TA531004 Conrod | Conrod | 1 | $137.60 | Available to order | 1 |
| 3 | LAD00251 Bolt, Hexalobular, Flanged, M9 | Bolt, Hexalobular, Flanged, M9 | 2 | $7.03 | Available to order | 2 |
| 4 | YJP89057 Bush, Metallic, No Colour | Bush, Metallic, No Colour | 1 | $23.07 | Available to order | 1 |
| 4 | YJP89058 Bush, Metallic, Green | Bush, Metallic, Green | 1 | $24.24 | Available to order | 1 |
| 4 | YJP89059 Bush, Metallic, Blue | Bush, Metallic, Blue | 1 | $24.24 | Available to order | 1 |
| 5 | JY531026 Sprocket, Crankshaft | Sprocket, Crankshaft | 1 | $12.74 | Available to order | 1 |
| 6 | TA551201 Gear, Primary Drive | Gear, Primary Drive | 1 | $34.37 | Available to order | 1 |
| 7 | LDA00072 Washer, Plain | Washer, Plain | 1 | $3.17 | Available to order | 1 |
| 8 | LCG00002 Nut, Hex Flanged, M16 x 1.5 | Nut, Hex Flanged, M16 x 1.5 | 1 | $4.86 | Available to order | 1 |
| 9 | LFB00001 Key, Sunk | Key, Sunk | 1 | $1.47 | Available to order | 1 |
| 10 | KFAB4050 Key Woodruff | Key Woodruff | 1 | $0.91 | Available to order | 1 |
| 11 | LAD00254 Bolt, Banjo, M12 x 1.5 | Bolt, Banjo, M12 x 1.5 | 1 | $10.31 | Available to order | 1 |
| 12 | LDB00105 Washer, Plain | Washer, Plain | 1 | $3.51 | Available to order | 1 |
