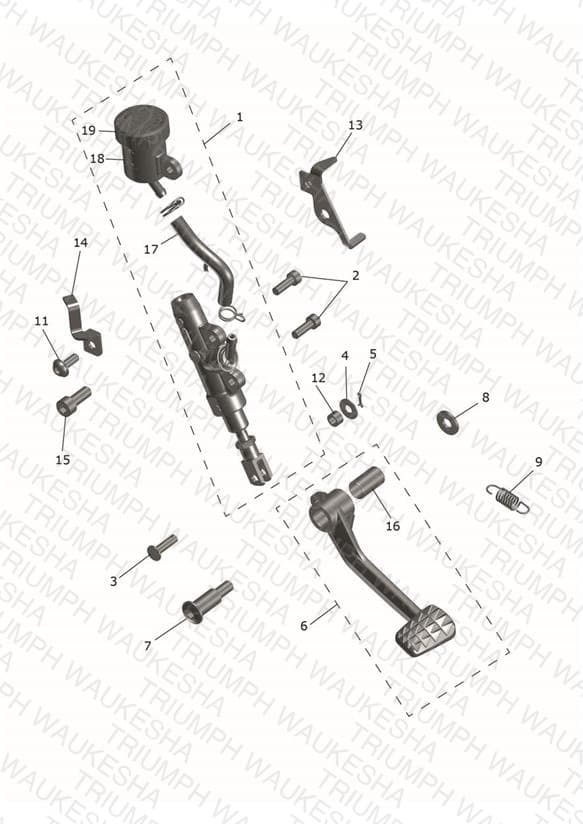

Rear Master Cylinder
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA131847 Rear Master Cylinder Assembly | Rear Master Cylinder Assembly | 1 | $185.66 | Out of Stock | Notify Me |
| 2 | LAC00115 Bolt, Socket, M6 x 1 x 18, Blk, Precoat | Bolt, Socket, M6 x 1 x 18, Blk, Precoat | 2 | $0.49 | Available to order | 2 |
| 3 | LHE00021 Clevis Pin, Dia 6 | Clevis Pin, Dia 6 | 1 | $0.84 | Available to order | 1 |
| 4 | 39178924 Nylon Washer | Nylon Washer | 1 | $0.10 | Available to order | 1 |
| 5 | KHAA2015 Pin Cotter | Pin Cotter | 1 | $0.10 | Available to order | 1 |
| 6 | TA161026 Brake Pedal Assembly | Brake Pedal Assembly | 1 | $82.78 | Backorder — Early November 2026 | 1 |
| 7 | LBU00236 Screw Skt Step M8 x 1.25 | Screw Skt Step M8 x 1.25 | 1 | $3.78 | Available to order | 1 |
| 8 | LDB00151 Plain Washer | Plain Washer | 1 | $1.69 | Available to order | 1 |
| 9 | JG161001 Tension Spring | Tension Spring | 1 | $0.70 | Available to order | 1 |
| 10 | 36TA0081 Rear Tube Kit | Rear Tube Kit Not Illustrated | 1 | $6.56 | Backorder — Mid October 2026 | 1 |
| 11 | LBU00239 Screw | Screw | 1 | $0.60 | Out of Stock | Notify Me |
| 12 | JP131879 Grommet | Grommet | 1 | $0.37 | Out of Stock | Notify Me |
| 13 | TA131859 Bracket, Rear Reservoir | Bracket, Rear Reservoir | 1 | $1.92 | Out of Stock | Notify Me |
| 14 | TA131812 Reservoir Bracket | Reservoir Bracket | 1 | $2.84 | Out of Stock | Notify Me |
| 15 | KACA0820 Bolt, Socket, M8 x 1.25 | Bolt, Socket, M8 x 1.25 | 1 | $0.64 | Out of Stock | Notify Me |
| 16 | TA131864 Bush | Bush | 1 | $3.45 | Out of Stock | Notify Me |
| 17 | 36TA0192 Rubber Tube Kit | Rubber Tube Kit | 1 | $3.46 | Out of Stock | Notify Me |
| 18 | YTA02021 Rear Reservoir | Rear Reservoir | 1 | $27.57 | Out of Stock | Notify Me |
| 19 | YTA02023 Rear Reservoir Cap | Rear Reservoir Cap | 1 | $6.29 | Available to order | 1 |
| 20 | 36TA0120 Kit, Rear Reservoir | Kit, Rear Reservoir Not Illustrated | 1 | $32.93 | Out of Stock | Notify Me |
| 21 | YJP89048 Rear M/Cyl Piston Assy Kit | Rear M/Cyl Piston Assy Kit Not Illustrated | 1 | $199.62 | Out of Stock | Notify Me |
| 22 | 36JP0173 Rear M/Cyl Fork Assy Kit | Rear M/Cyl Fork Assy Kit Not Illustrated | 1 | $7.71 | Out of Stock | Notify Me |
