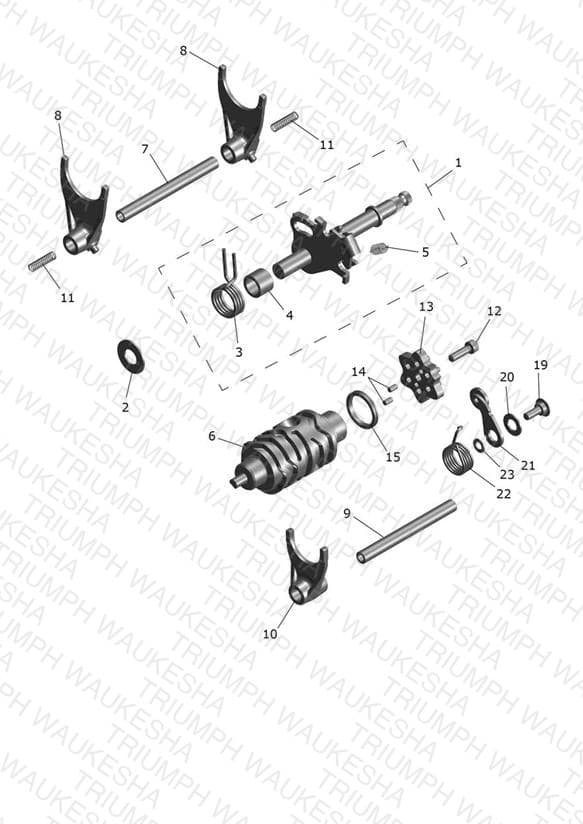

Gear Selection
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA561231 Shaft Assembly Gear Shift | Shaft Assembly Gear Shift | 1 | $30.99 | Available to order | 1 |
| 2 | LDB00071 Washer, Plain, 13 x 28 x 1.5 | Washer, Plain, 13 x 28 x 1.5 | 1 | $0.91 | Available to order | 1 |
| 3 | TA561007 Spring, Torsion | Spring, Torsion | 1 | $1.13 | Available to order | 1 |
| 4 | 39256220 Needle Roller Brg | Needle Roller Brg | 1 | $4.58 | Available to order | 1 |
| 5 | PD561233 Spring, Tension | Spring, Tension | 1 | $0.34 | Available to order | 1 |
| 6 | TA561000 Drum Gear Shift | Drum Gear Shift | 1 | $58.64 | Available to order | 1 |
| 7 | JF561001 Shaft Output Fork Shift | Shaft Output Fork Shift | 1 | $7.68 | Available to order | 1 |
| 8 | TA561002 Fork Gear Shift Output | Fork Gear Shift Output | 2 | $34.48 | Available to order | 2 |
| 9 | JY561004 Shaft, Input Gear Shift Fork | Shaft, Input Gear Shift Fork | 1 | $5.93 | Available to order | 1 |
| 10 | TA561001 Fork Gear Shift Input | Fork Gear Shift Input | 1 | $29.33 | Available to order | 1 |
| 11 | JY541039 Spring | Spring | 2 | $0.34 | Available to order | 2 |
| 12 | DH101389 Bolt, Socket - M6X1X1 20Xcl 12.9 | Bolt, Socket - M6X1X1 20Xcl 12.9 | 1 | $0.79 | Available to order | 1 |
| 13 | PD561012 Guide Gear Shift | Guide Gear Shift | 1 | $15.82 | Available to order | 1 |
| 14 | 39260607 Pin Dowel Dia 4 | Pin Dowel Dia 4 | 2 | $0.31 | Available to order | 2 |
| 15 | JG561010 Spacer-Guide Gear Shift | Spacer-Guide Gear Shift | 1 | $1.93 | Available to order | 1 |
| 19 | LAC00084 Bolt, Socket, M6 x 1 x 14, Precoat | Bolt, Socket, M6 x 1 x 14, Precoat | 1 | $1.47 | Available to order | 1 |
| 20 | LDA00026 Washer, Plain, 10 x 18.5 x 1.35 | Washer, Plain, 10 x 18.5 x 1.35 | 1 | $0.46 | Available to order | 1 |
| 21 | TA561205 Stopper Assembly Drum | Stopper Assembly Drum | 1 | $4.86 | Available to order | 1 |
| 22 | TA561210 Spring, Torsion | Spring, Torsion | 1 | $1.47 | Available to order | 1 |
| 23 | LDB00050 Washer, Plain, 6 x 14 | Washer, Plain, 6 x 14 | 1 | $0.57 | Available to order | 1 |
