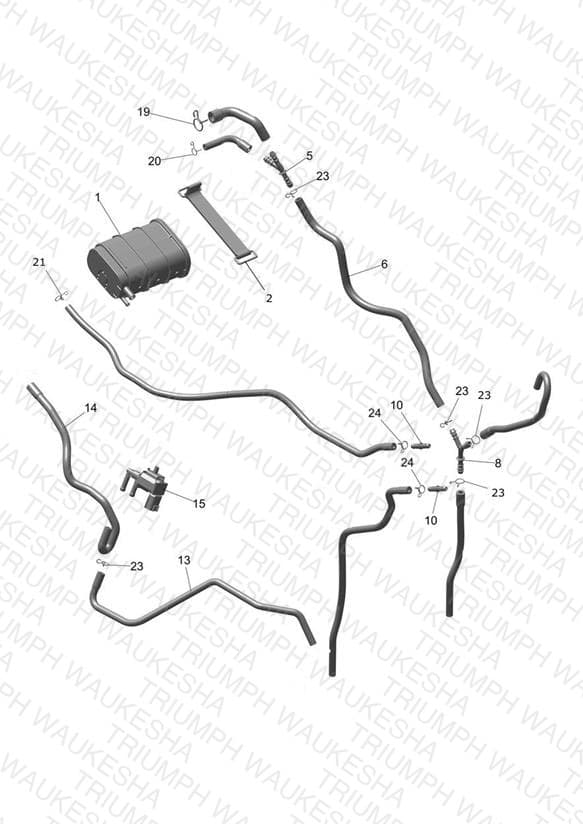

Evap System - US Only
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | JR171620 Evap Cannister | Evap Cannister | 1 | $30.11 | Out of Stock | Notify Me |
| 2 | DH161429 Strap, Canister | Strap, Canister | 1 | $2.73 | Available to order | 1 |
| 5 | TA171051 Joint | Joint | 1 | $1.93 | Available to order | 1 |
| 8 | JY113842 Joint | Joint | 1 | $1.24 | Available to order | 1 |
| 10 | GL171073 Connector | Connector | 2 | $2.37 | Available to order | 2 |
| 13 | TA171627 Pipe Valve Purge - Throttle Body | Pipe Valve Purge - Throttle Body | 1 | $20.15 | Out of Stock | Notify Me |
| 14 | TA171628 Pipe Connector - Purge Valve | Pipe Connector - Purge Valve | 1 | $19.62 | Out of Stock | Notify Me |
| 15 | JU171606 Purge Valve | Purge Valve | 1 | $56.79 | Available to order | 1 |
| 16 | TA113835 Bracket, Purge Valve | Bracket, Purge Valve | 1 | $2.25 | Out of Stock | Notify Me |
| 19 | JK511002 Clamp, Breather Hose | Clamp, Breather Hose | 1 | $0.34 | Available to order | 1 |
| 20 | BA122003 Pipe Clip | Pipe Clip | 1 | $0.17 | Available to order | 1 |
| 21 | 33141008 Clamp | Clamp | 2 | $0.22 | Available to order | 2 |
| 23 | DJ141002 Clamp, Drain Pipe | Clamp, Drain Pipe | 5 | $0.22 | Available to order | 5 |
| 24 | JG171030 Clamp | Clamp | 2 | $0.34 | Available to order | 2 |
| 25 | KCGA0606 Nut, Hex, Flanged | Nut, Hex, Flanged | 1 | $0.10 | Available to order | 1 |
| 26 | LBU00118 Screw, Btn Hd | Screw, Btn Hd | 1 | $0.56 | Out of Stock | Notify Me |
| 27 | 24101879 Clip Cable | Clip Cable | 1 | $1.58 | Out of Stock | Notify Me |
| 28 | TA171821 Fuel Pipe | Fuel Pipe | 1 | $17.21 | Out of Stock | Notify Me |
| 29 | TA171820 Fuel Pipe | Fuel Pipe | 1 | $6.02 | Out of Stock | Notify Me |
| 30 | TA171622 Fuel Pipe | Fuel Pipe | 1 | $15.06 | Out of Stock | Notify Me |
| 31 | TA171655 Fuel Pipe | Fuel Pipe | 1 | $15.06 | Out of Stock | Notify Me |
