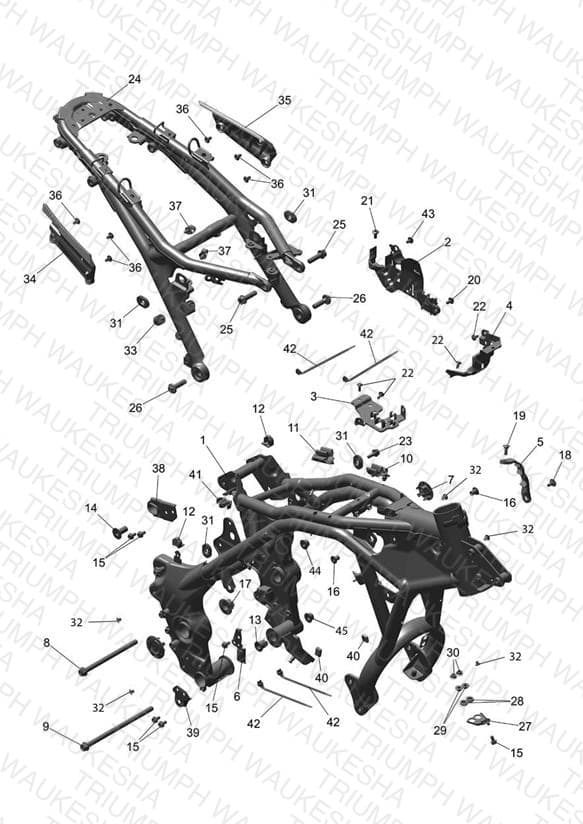

Frame & Rear Subframe
Parts (64)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2078359 Main Frame, Spares, ROW | Main Frame, Spares, ROW ROW | 1 | $1436.64 | Out of Stock | Notify Me |
| 1 | T2078360 Main Frame, Spares, AU | Main Frame, Spares, AU AU | 1 | $1436.64 | Out of Stock | Notify Me |
| 1 | T2078361 Main Frame, Spares, CA | Main Frame, Spares, CA CA | 1 | $1436.64 | Out of Stock | Notify Me |
| 1 | T2078362 Main Frame, Spares, KR | Main Frame, Spares, KR KR | 1 | $1436.64 | Out of Stock | Notify Me |
| 1 | T2078363 Main Frame, Spares, BR | Main Frame, Spares, BR BR | 1 | $1436.64 | Out of Stock | Notify Me |
| 1 | T2078364 Main Frame, Spares, TH | Main Frame, Spares, TH TH | 1 | $1436.64 | Out of Stock | Notify Me |
| 1 | T2078365 Main Frame, Spares, CN | Main Frame, Spares, CN CN | 1 | $1436.64 | Out of Stock | Notify Me |
| 1 | T2078366 Main Frame, Spares, UC | Main Frame, Spares, UC UC | 1 | $1436.64 | Out of Stock | Notify Me |
| 1 | T2078367 Main Frame, Spares, GSO | Main Frame, Spares, GSO GSO | 1 | $1436.64 | Out of Stock | Notify Me |
| 2 | TA113806 Holder, Relay | Holder, Relay | 1 | $4.58 | Available to order | 1 |
| 3 | TA113841 Holder, Connector Harness | Holder, Connector Harness | 1 | $2.90 | Available to order | 1 |
| 4 | TA351212 Cover, Coil Ignition | Cover, Coil Ignition | 1 | $3.24 | Available to order | 1 |
| 5 | TA113840 Bracket, Harness | Bracket, Harness | 1 | $2.90 | Available to order | 1 |
| 6 | TA113210 Bracket, Switch | Bracket, Switch | 1 | $4.07 | Available to order | 1 |
| 7 | TA122029 Plug | Plug | 2 | $1.91 | Available to order | 2 |
| 8 | LAD00287 Bolt, Flanged, M10 x 1.25 | Bolt, Flanged, M10 x 1.25 | 1 | $8.18 | Available to order | 1 |
| 9 | LAD00286 Bolt, Flanged, M10 x 1.25 | Bolt, Flanged, M10 x 1.25 | 1 | $9.82 | Available to order | 1 |
| 10 | TA171035 Damper, LH | Damper, LH | 1 | $2.53 | Available to order | 1 |
| 11 | TA171052 Damper, RH | Damper, RH | 1 | $2.53 | Available to order | 1 |
| 12 | JZ181322 Grommet, Side Cover | Grommet, Side Cover | 2 | $0.84 | Backorder — Early October 2026 | 2 |
| 13 | TA113810 Bolt Adjuster | Bolt Adjuster | 1 | $11.11 | Available to order | 1 |
| 14 | TA181240 Collar | Collar | 1 | $3.37 | Available to order | 1 |
| 15 | KADD0612 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 6 | $0.37 | Available to order | 6 |
| 16 | GL113811 Collar | Collar | 2 | $1.45 | Available to order | 2 |
| 17 | TA122016 Bolt, Adjuster | Bolt, Adjuster | 1 | $12.31 | Available to order | 1 |
| 18 | LBU00182 Screw, Socket, Step, M6 x 1 | Screw, Socket, Step, M6 x 1 | 1 | $0.97 | Available to order | 1 |
| 19 | LBU00168 Screw, Socket, Step, M6 x 1 | Screw, Socket, Step, M6 x 1 | 1 | $1.32 | Available to order | 1 |
| 20 | LBU00131 Screw, Btn Hd, M6 x 1 | Screw, Btn Hd, M6 x 1 | 1 | $1.32 | Available to order | 1 |
| 21 | LBU00149 Screw, Socket, Step | Screw, Socket, Step | 1 | $0.97 | Out of Stock | Notify Me |
| 22 | BF185019 Clip, Plastic | Clip, Plastic | 4 | $0.70 | Available to order | 4 |
| 23 | LAD00307 Bolt, Flanged, M8 x 1.25 | Bolt, Flanged, M8 x 1.25 | 1 | $1.81 | Available to order | 1 |
| 24 | 52TA0832 Rear Subframe - TA111208 Blk, Gloss | Rear Subframe - TA111208 Blk, Gloss | 1 | $488.46 | Out of Stock | Notify Me |
| 25 | LAD00308 Bolt, Flanged, M10 x 1.25 | Bolt, Flanged, M10 x 1.25 | 2 | $2.65 | Available to order | 2 |
| 26 | LBU00137 Screw, Torx, M10 x 1.25 | Screw, Torx, M10 x 1.25 | 2 | $8.77 | Available to order | 2 |
| 27 | TA113827 Bracket, Sensor, Roll Over | Bracket, Sensor, Roll Over | 1 | $3.27 | Out of Stock | Notify Me |
| 28 | LLA00003 Grommet, ID 9.3 x OD 16 x HT 5 | Grommet, ID 9.3 x OD 16 x HT 5 | 2 | $0.30 | Backorder — Mid October 2026 | 2 |
| 29 | JP181014 Collar Tail Lamp Mounting | Collar Tail Lamp Mounting | 2 | $0.49 | Backorder — Mid October 2026 | 2 |
| 30 | KCGA0606 Nut, Hex, Flanged | Nut, Hex, Flanged | 2 | $0.10 | Available to order | 2 |
| 31 | JZ171124 Grommet | Grommet | 4 | $0.70 | Out of Stock | Notify Me |
| 32 | TA113854 Plug | Plug | 5 | $1.20 | Out of Stock | Notify Me |
| 33 | JG581058 Silent Bush | Silent Bush | 1 | $7.38 | Available to order | 1 |
| 34 | TA181462 Cover Frame RH | Cover Frame RH | 1 | $15.62 | Out of Stock | Notify Me |
| 35 | TA181461 Cover Frame LH | Cover Frame LH | 1 | $15.62 | Backorder — Mid October 2026 | 1 |
| 36 | JG181259 Rivet, Snap | Rivet, Snap | 6 | $0.97 | Available to order | 6 |
| 37 | 24101879 Clip Cable | Clip Cable | 2 | $1.69 | Out of Stock | Notify Me |
| 38 | TA113828 Bracket, Muffler | Bracket, Muffler | 1 | $9.86 | Available to order | 1 |
| 39 | TA113829 Bracket, Muffler | Bracket, Muffler | 1 | $3.74 | Out of Stock | Notify Me |
| 40 | JY591303 Grommet Shield Muffler | Grommet Shield Muffler | 2 | $0.49 | Available to order | 2 |
| 41 | JG131857 Clip, Separator | Clip, Separator | 1 | $5.28 | Available to order | 1 |
| 42 | 60111420 Cable Tie Lock | Cable Tie Lock | 4 | $0.43 | Available to order | 4 |
| 43 | LAC00037 Screw, Btn Hd, M6 x 1 x 8 | Screw, Btn Hd, M6 x 1 x 8 | 1 | $0.37 | Out of Stock | Notify Me |
| 44 | KCLA1011 Nut, U Flgd | Nut, U Flgd | 1 | $2.10 | Backorder — Early October 2026 | 1 |
| 45 | LCG00015 Nut, Hex Flgd, M10 | Nut, Hex Flgd, M10 | 1 | $1.44 | Out of Stock | Notify Me |
| 50 | JG561204 Bolt Stopper Drum | Bolt Stopper Drum Item not illustrated | 1 | $2.40 | Available to order | 1 |
| 51 | JY113847 Cap, Frame End | Cap, Frame End Item not illustrated | 1 | $0.64 | Out of Stock | Notify Me |
| 54 | TA113857 Cover LH | Cover LH Item not illustrated | 1 | $15.00 | Out of Stock | Notify Me |
| 55 | TA113858 Cover RH | Cover RH Item not illustrated | 1 | $15.00 | Out of Stock | Notify Me |
| 56 | TA191040 Damper | Damper Item not illustrated | 2 | $1.08 | Available to order | 2 |
| 57 | TA113834 Bracket, Cover Tank RH | Bracket, Cover Tank RH Item not illustrated | 1 | $1.92 | Out of Stock | Notify Me |
| 58 | TA113872 Bracket, Cover Tank LH | Bracket, Cover Tank LH Item not illustrated | 1 | $1.92 | Out of Stock | Notify Me |
| 59 | LBU00242 Screw, Btn Hd | Screw, Btn Hd Item not illustrated | 2 | $0.53 | Out of Stock | Notify Me |
| 60 | TA181371 Grommet | Grommet Item not illustrated | 2 | $0.64 | Out of Stock | Notify Me |
| 61 | AA201387 Clamp, Cable | Clamp, Cable Item not illustrated | 2 | $1.08 | Available to order | 2 |
| 62 | JB181223 Beading | Beading Item not illustrated | 1 | $0.37 | Out of Stock | Notify Me |
